BTF-LIGHTING SP805E WLED LED Controller ESP32 with Mic, WiFi APP Control | For WS2812B WS2811 SK6812 WS2814 LED Strip/Matrix & PWM Dim CCT RGB RGBW RGBCCT LED , 2 SPI Channel, USB-C UART, DIY Lights

About This

• Powerful ESP32 Chip & 100+ DIY ModesBuilt with a high-performance ESP32 chip, this smart LED controller delivers stable processing power and reliable 2.4GHz Wi-Fi connectivity. Control your LED strips directly via the WLED Native or WLED+ App — no gateway required. It features over 100 pre-programmed dynamic lighting modes and supports full DIY customization.

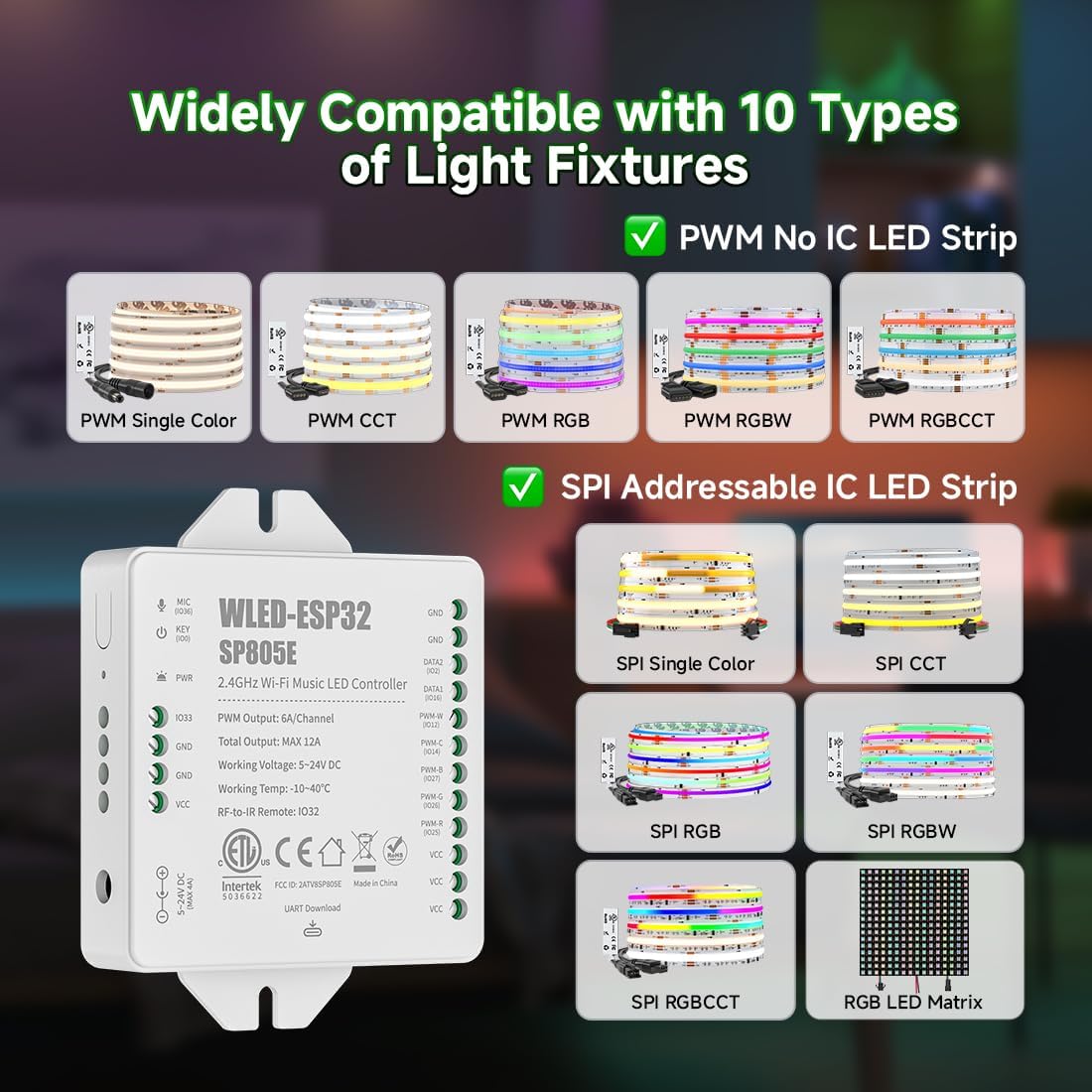

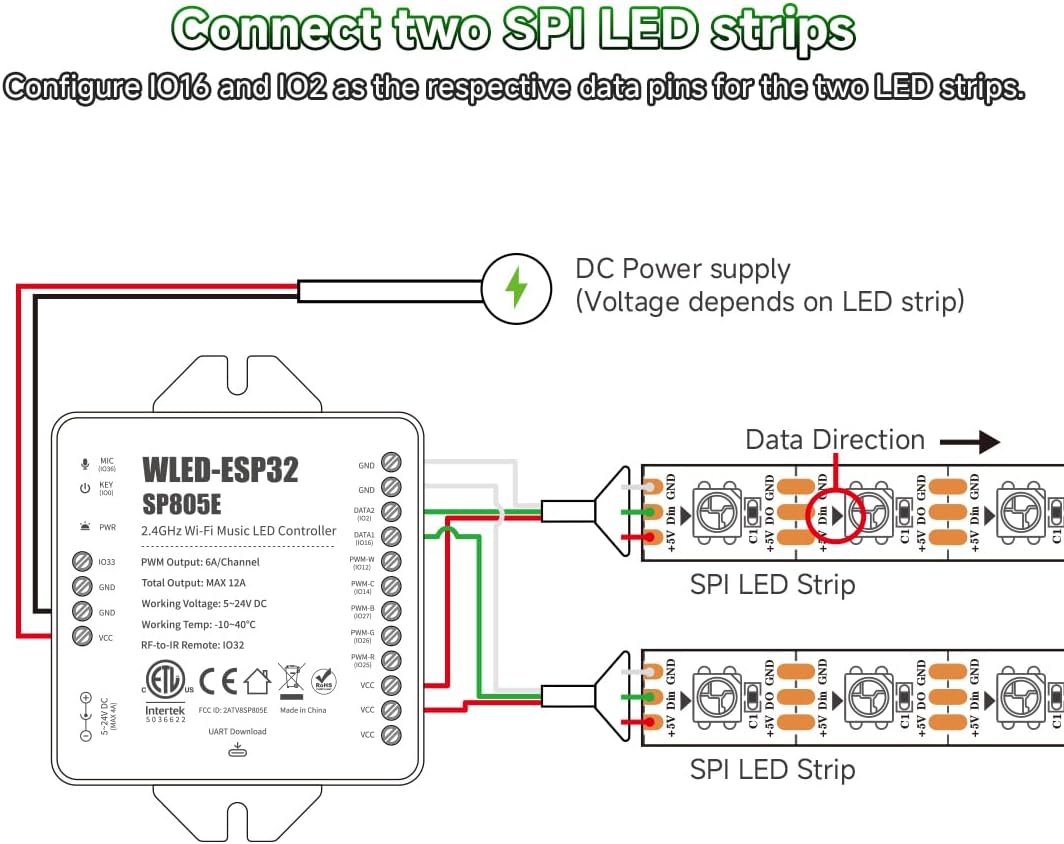

• Wide Strip Compatibility & High-Pixel SupportThe SP805E controller is compatible with both SPI addressable strips (such as WS2812, WS2815, SK6812,WS2814 etc.) and PWM strips, covering single-color, CCT, RGB, RGBW, and RGBCCT. The controller provides a 2-channel data output to meet project needs.For SPI strips, each strip supports up to 2048 pixels per channel.LED strip is not included.
• Built-in Microphone for Audio Sync LightingOn-board sensitive microphone captures ambient sound in real time. Light effects automatically react to audio rhythm and volume changes. Works well in gaming desks, TV backlighting, bedroom ambiance, party decorations, store windows, bars, and display cases. Creates a dynamic atmosphere with sound-reactive lighting.
• Multiple UsesWorks well for DIY enthusiasts, gamers, and smart home users. Can be used for Birthdays, Christmas, Halloween, and other festive events.Supports multiple lighting effects for different holiday needs: for Halloween, you can set a flickering flame effect or slow breathing effect for a spooky vibe;Also suitable for everyday ambiance like running lights for home parties.

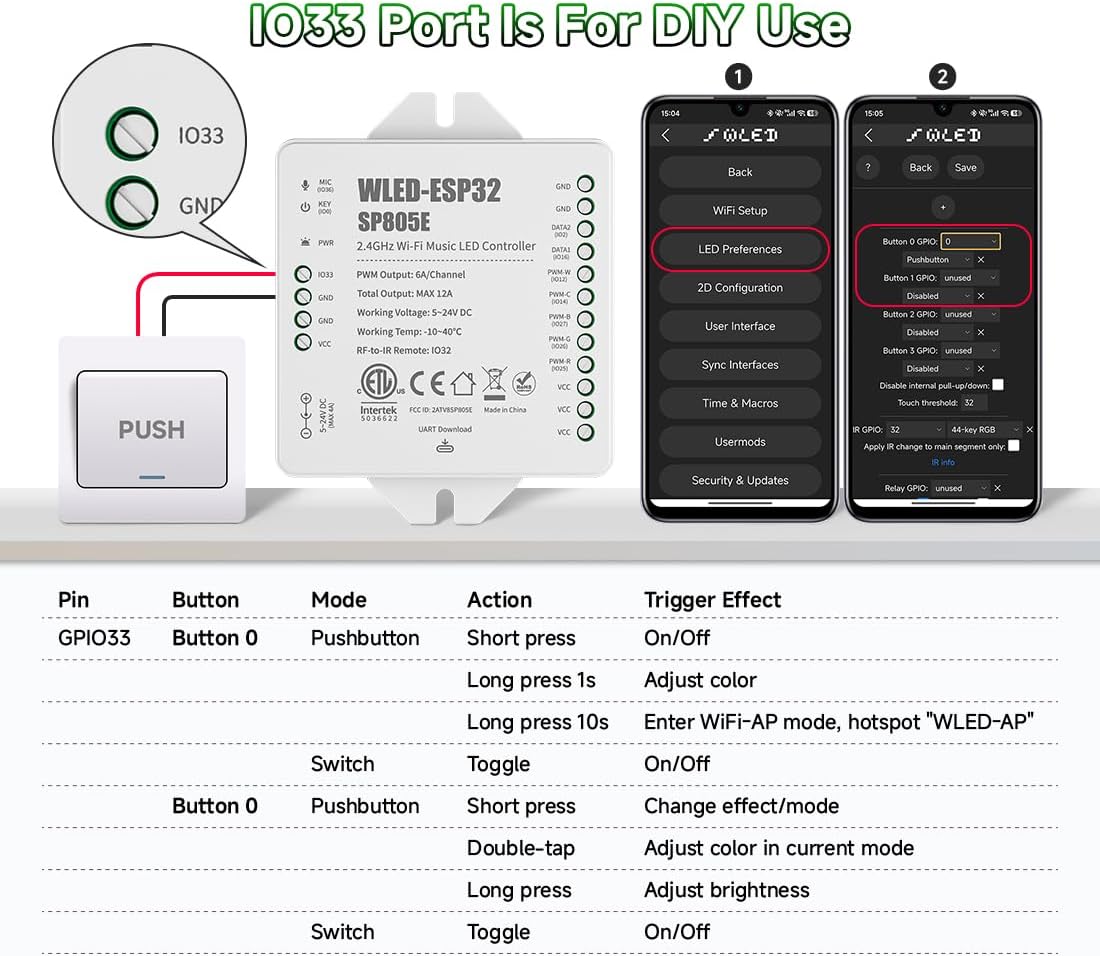

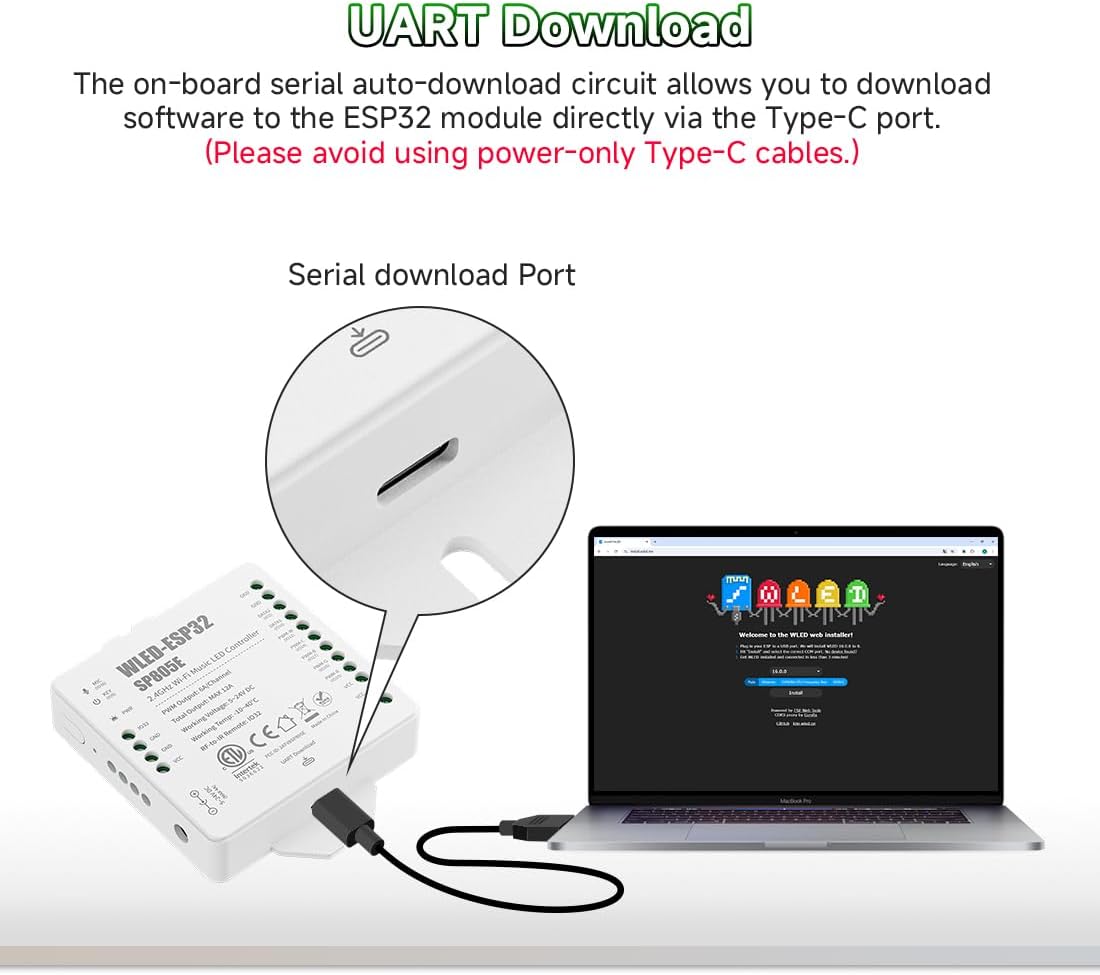

• Wide Voltage & UART Download PortWide voltage input: DC5V/12V/24V, 6A Max per channel (max 12A total). Built-in UART port enables hassle-free firmware updates and device debugging. No complex hardware required – ideal for WLED enthusiasts and developers who want to keep the controller up-to-date with the latest features.

Overview

• Color : White
• Brand : BTF-LIGHTING
• Material : Plastic
• Previous page
• 1 Music Function
• Music Function
• 2 Synchronization
• Synchronization
• Compatible LED Strip
• Series Connection
• Parallel Connection
• SPI RGB/RGBW LED Light
• SPI WS2815 LED Light
• PWM Dimming LED Light
• PWM CCT LED Light
• PWM RGB LED Light
• PWM RGBW LED Light
• PWM RGBCCT LED Light

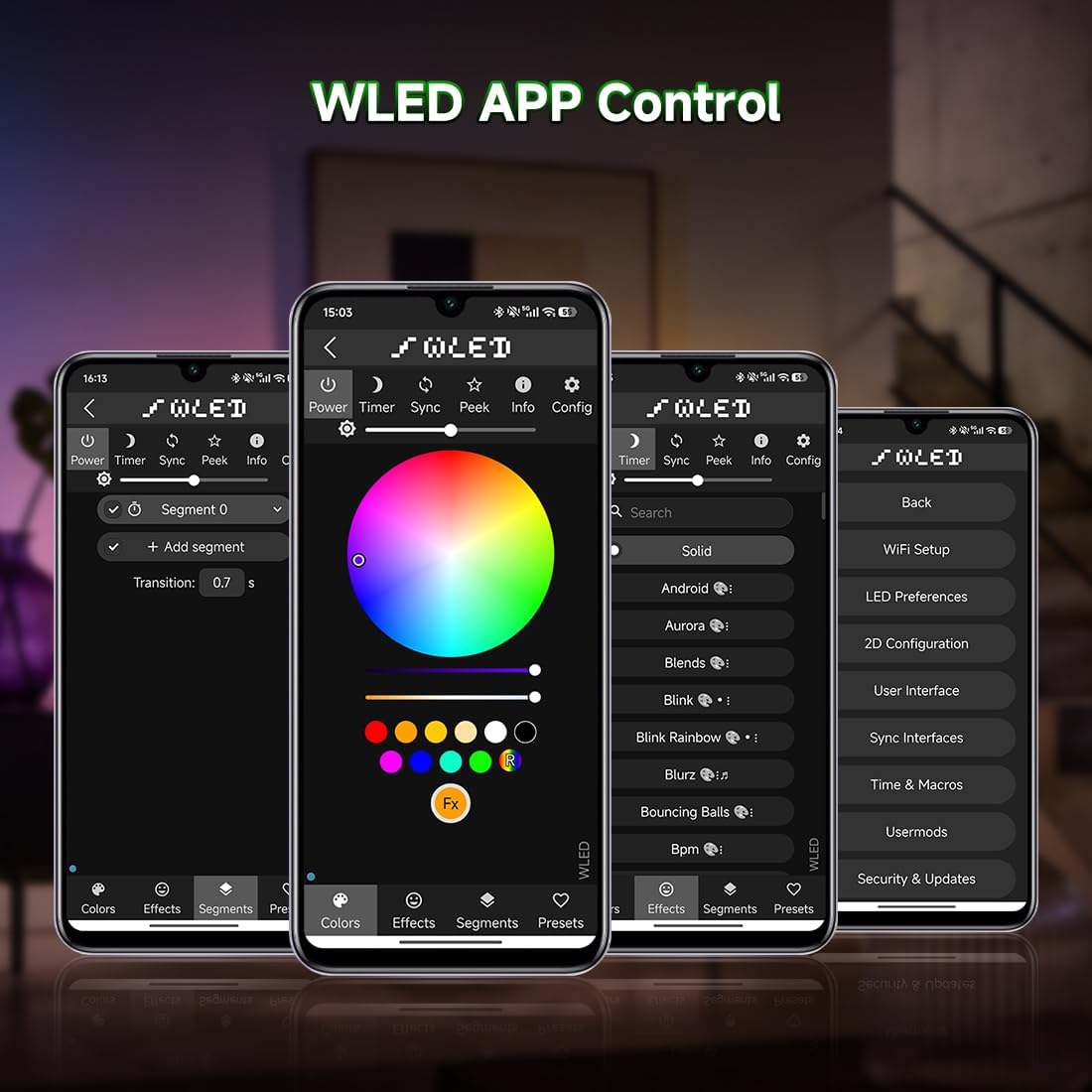

• 1 APP Control
• 2 PC Control
• 3 Segmented Control
• Segmented Control
