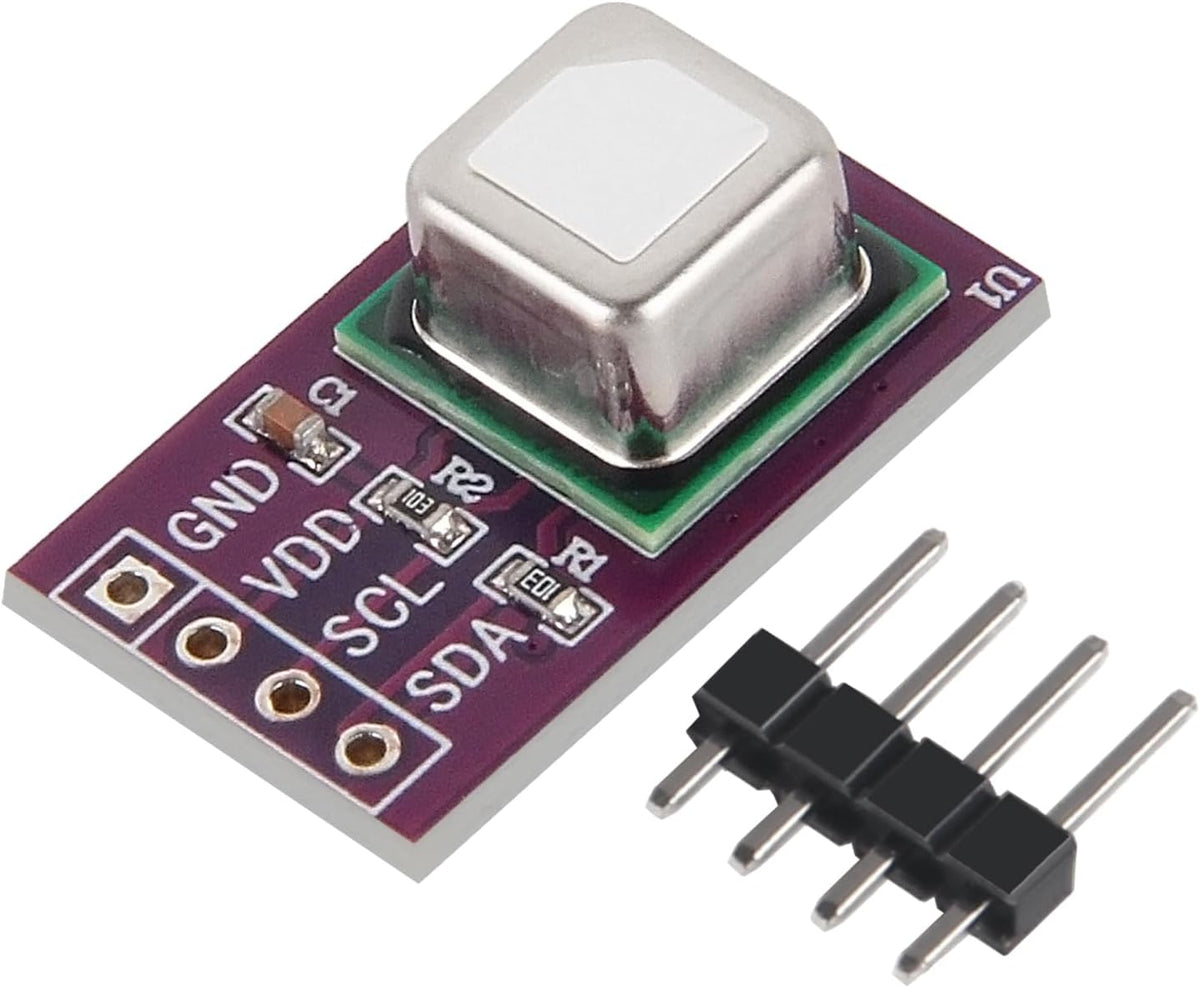

SCD41 Gas Sensor Module CO2 Carbon Dioxide Temperature and Humidity Gas Sensor Module I2C Communication 2.4-5.5 V for Air Quality Monitoring (SCD41)

About This

• High Precision Performance - CO₂ accuracy of ±(40 ppm + 5% MV) and humidity accuracy of ±6%RH (typical) ensure reliable environmental data.
• Low Power Operation - Averages <0.4 mA at 5V with 1 measurement every 5 minutes, ideal for battery-powered or long-term monitoring applications.
• SCD41 CO2 Carbon Dioxide Gas Sensor Module Dual-Function Sensing - Simultaneously measures CO₂ (400–5000 ppm), temperature, and humidity for comprehensive indoor air quality monitoring.
• SCD41 CO2 Carbon Dioxide Gas Sensor Module Integrated I2C Interface - 2.54mm pitch pin interface (GND, VDD, SCL, SDA) enables easy connection to microcontrollers and development boards.
• SCD41 CO2 Carbon Dioxide Gas Sensor Gas Detect Module Temperature Humidity Sensor I2C Communication 2.4-5.5 V for Air Quality Monitoring

Overview

• Brand : ACEIRMC
• Power Source : Battery Powered
• Color : SCD41
• Alarm : Audible
• Number of Items : 1

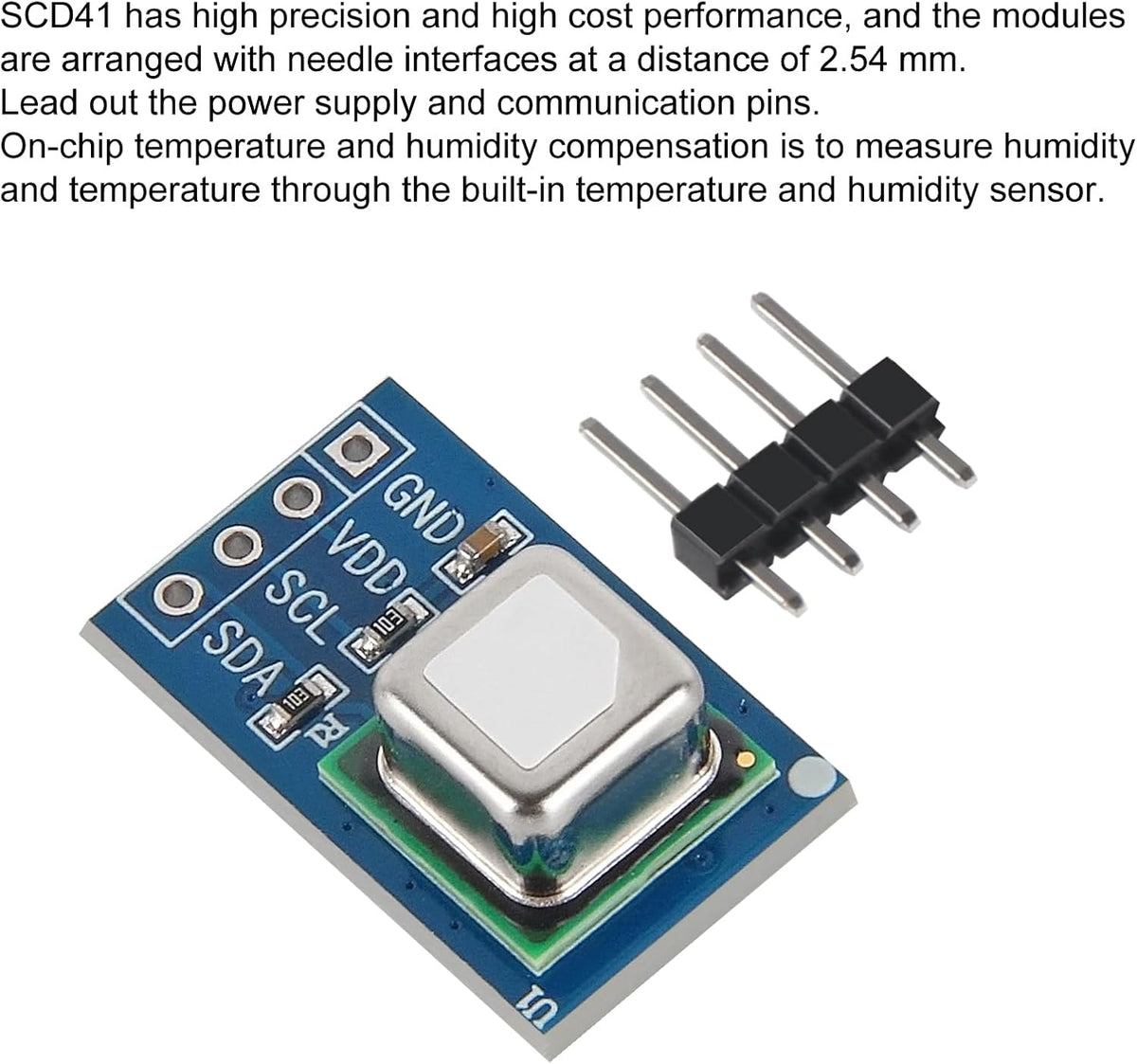

• Carbon dioxide is a key indicator of indoor air quality, damaging human cognitive ability and happiness. SCD41 is the next generation of micro carbon dioxide sensor of Sensirion. SCD41 has high precision and high performance. The module leads out the power supply and communication pins with a 2.54mm spacing pin interface. On chip temperature and humidity compensation realizes humidity and temperature measurement through built-in temperature and humidity sensor. SCD41 can realize intelligent regulation of indoor ventilation system according to carbon dioxide concentration. Indoor air quality helps to maintain a healthy and efficient environment under low carbon dioxide concentration for a period of time.Features
• Reference accuracy, specified range
• SCD40:400-2000 ppm
• SCD41:400-5000 ppm
• Supply voltage range: 2.4-5.5 V
• High accuracy: ± 5%
• Digital I2C interface
• Integrated temperature and humidity sensor
• Low power operation to <0.4 Ma average @ 5 V, 1 meas/ 5 minutes

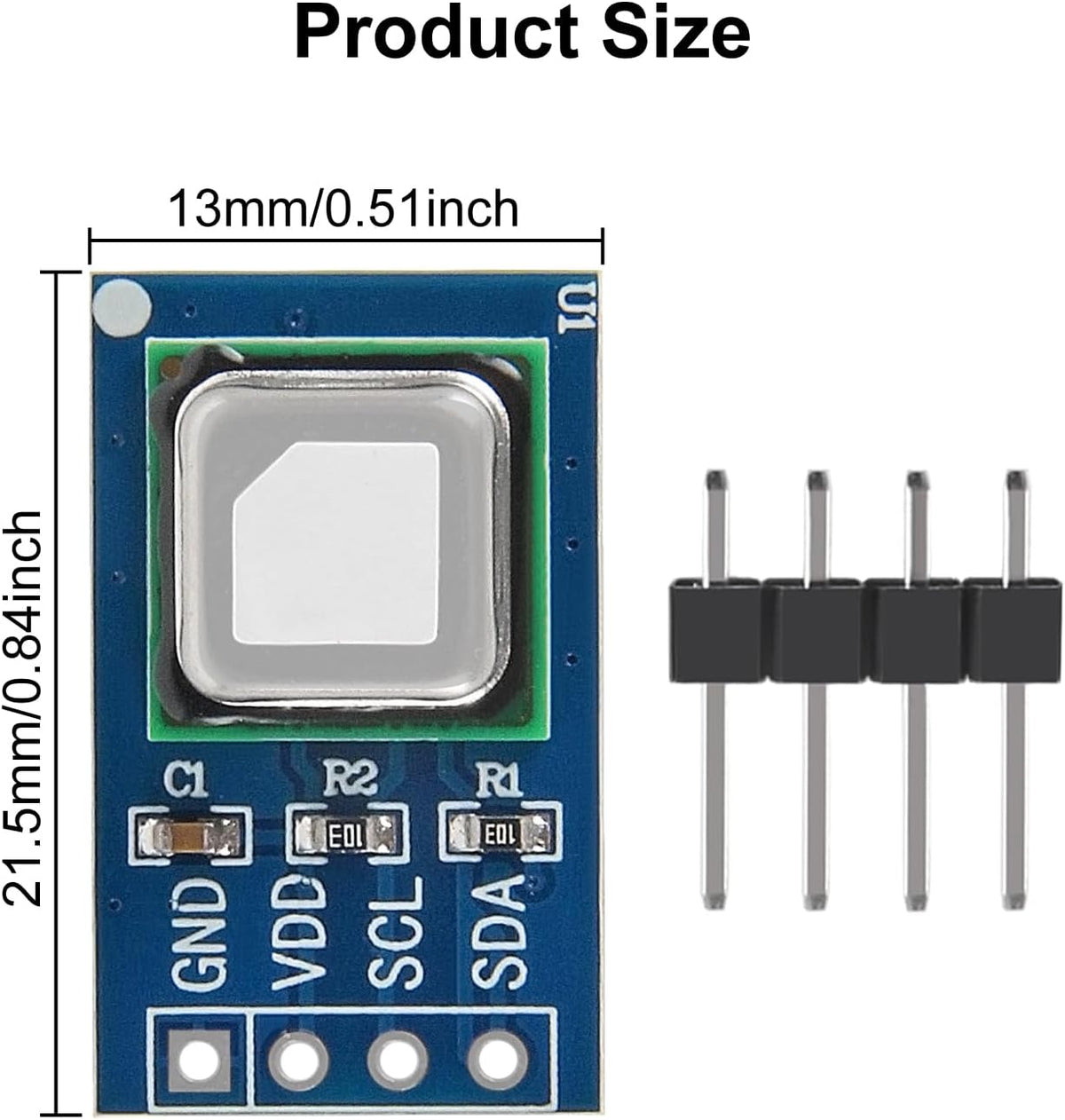

• Board size: 13.4 × 21.6mmInterface

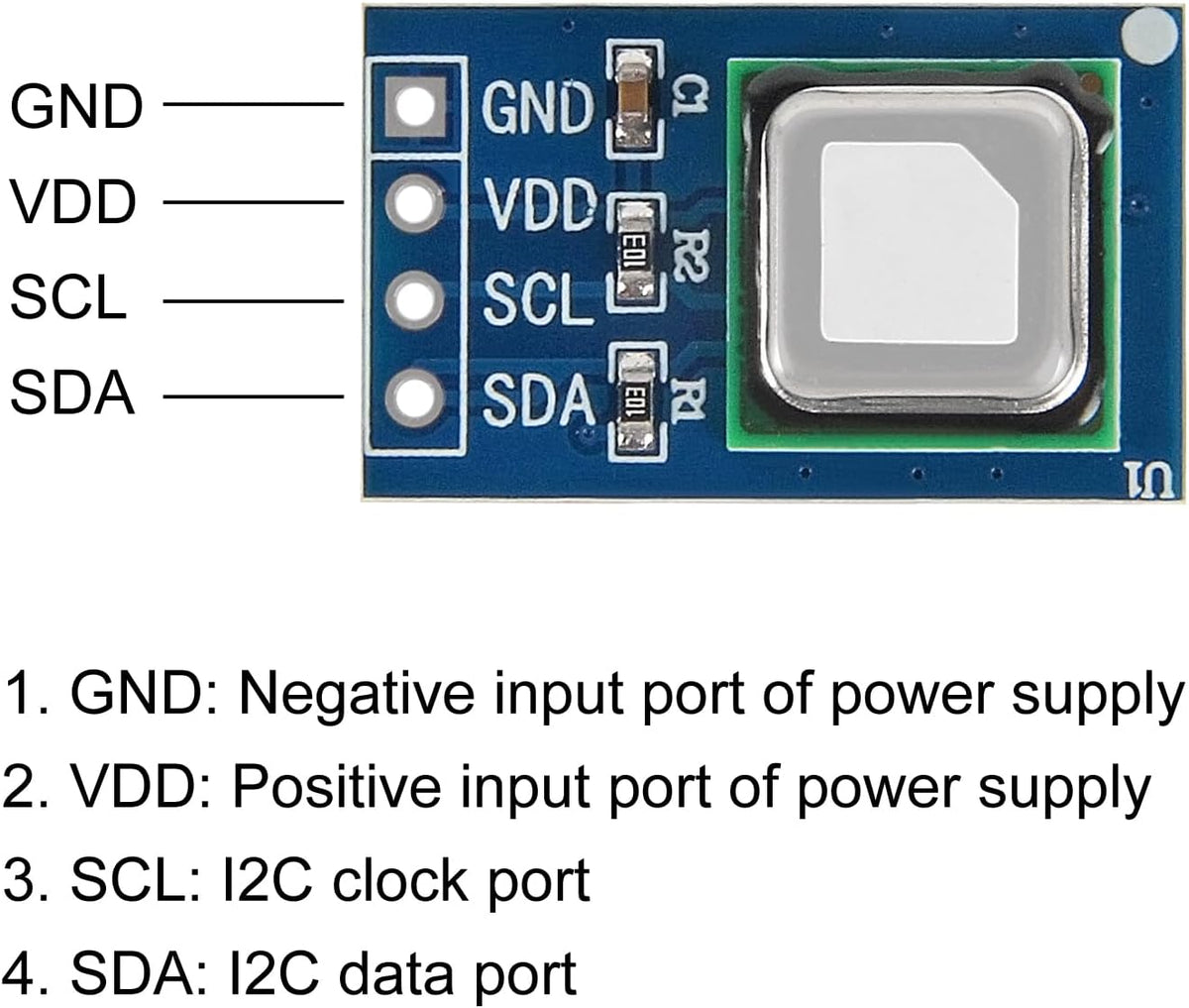

• 1. GND: negative input port of power supply
• 2. VDD: positive input port of power supply
• 3. SCL: I2C clock port
• 4. SDA: I2C data port
• Package included
• 1 * SCD41 CO2 Carbon Dioxide Gas Sensor
