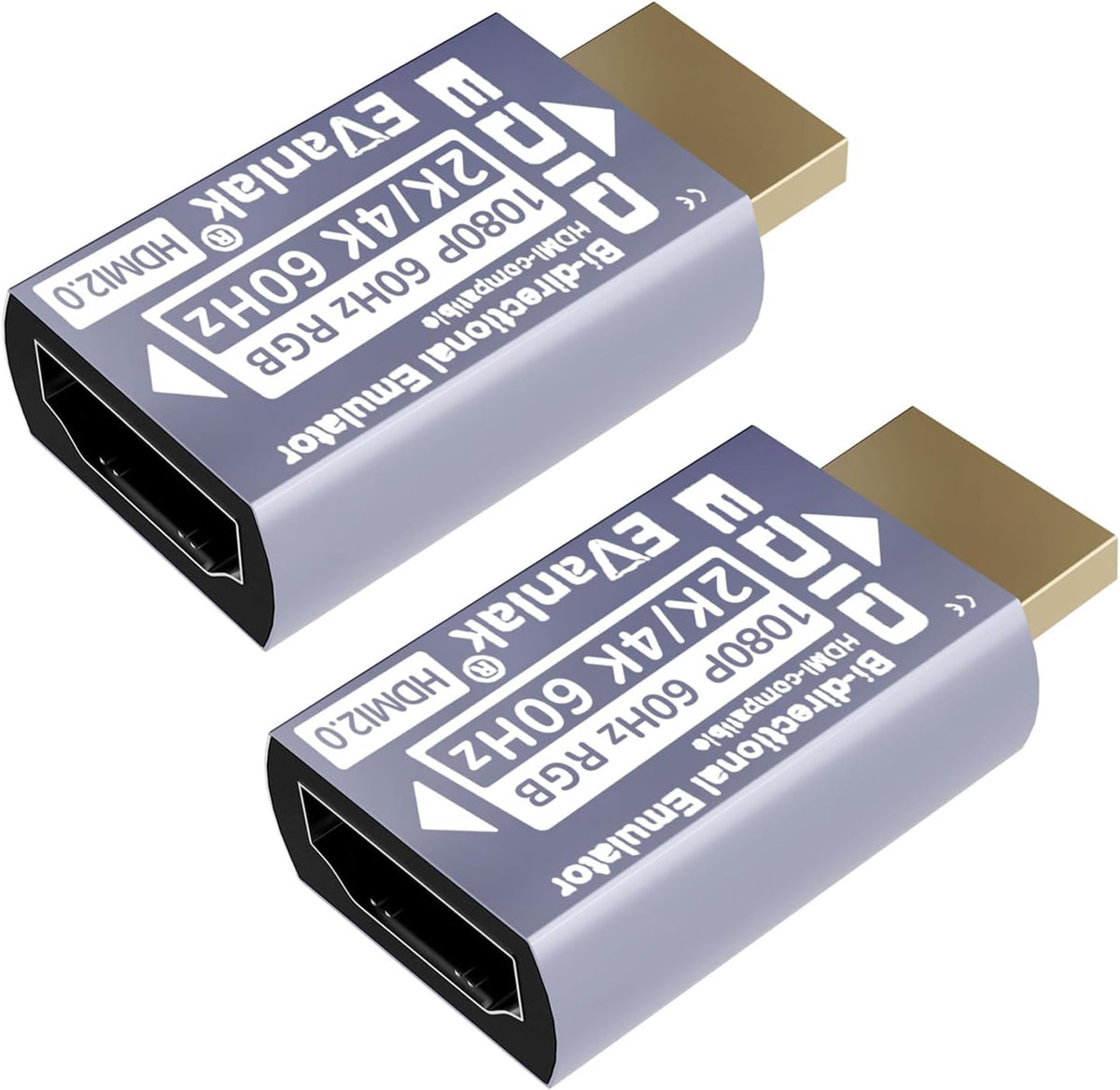

Simulates HDMI Display: Emulates an HDMI display by providing Hot Plug Detect and EDID information to the HDMI device, making it appear as if a real monitor is connected.
Headless Operation Mode: Default resolution is 1920x1080@60Hz RGB. Resolution range: 800x600@60Hz to 8K@30Hz (YUV420).
Passthrough EDID Emulator Mode: Does not support resolutions such as 2K@144Hz, 4K@60Hz (RGB, YUV444, YUV422), 4K@120Hz (YUV420), and 8K@30Hz (YUV420). These resolutions may result in a black screen. If a black screen occurs, adjust the resolution using remote control software.
Audio Support: Supports 2.1 channel audio. Does not support HDR or HDCP.Headless Operation Supported: No need for a monitor connection. Even if the display is turned off, it continues to function. Powered directly by the HDMI source device, with no external power supply required.
Bi-Directional Design: Automatically detects HDMI direction (Sink and Source auto-detection). Can be connected to either the computer or display side, offering more flexible installation and application options.
Overview
Compatible Devices : Gaming Console, PC, Television
