WAVLINK 13-in-1 USB C Docking Station Triple 4K for Laptop

About This

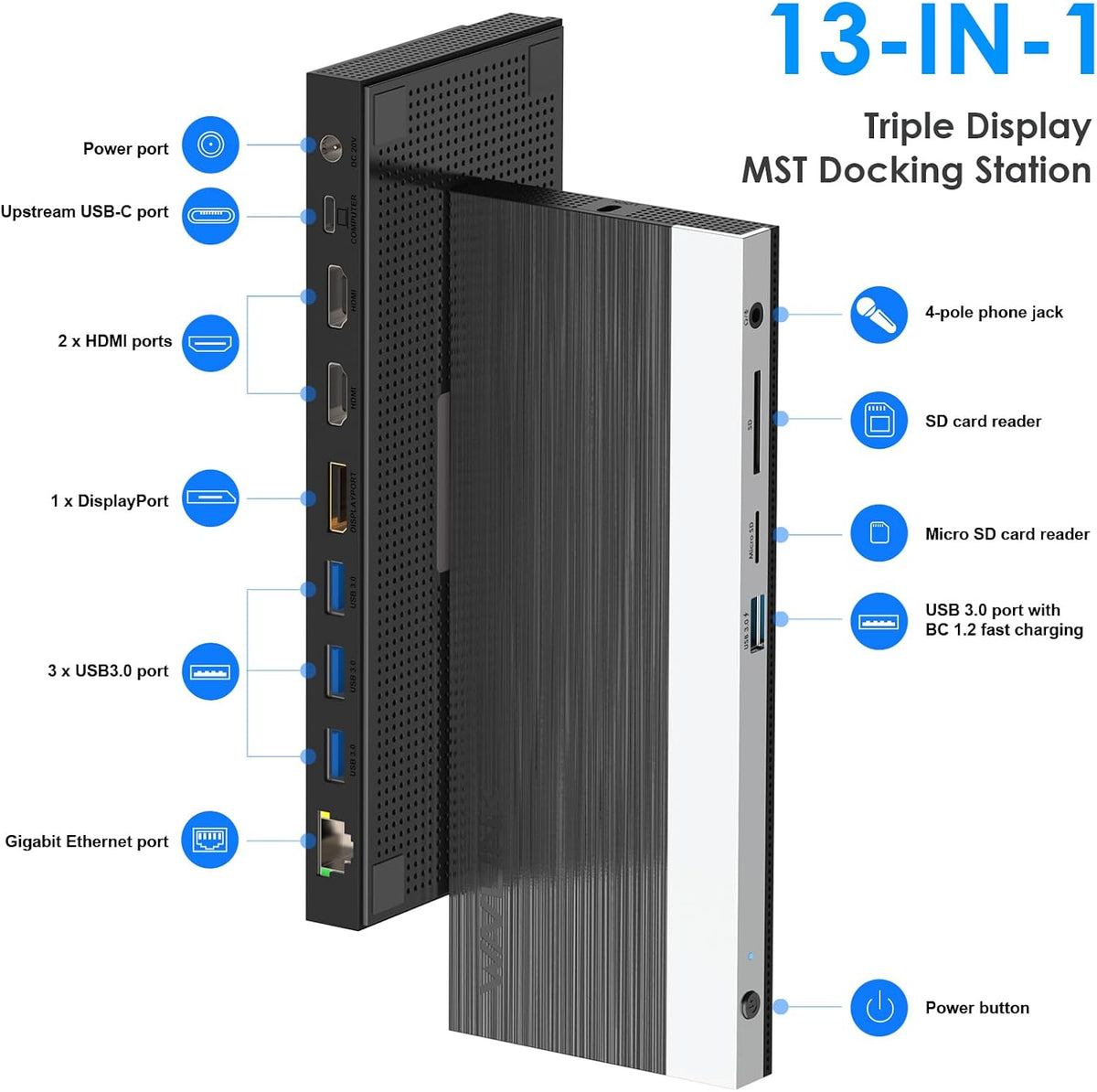

• 13-in-1 Docking Station — Check USB-C Port First: This dock requires a full-featured USB-C or Thunderbolt 3/4 port that supports Data, Video Output (DP Alt Mode), and Power Delivery (PD) simultaneously. Using a USB-C to USB-A adapter will disable video and charging. Ports included: 2 HDMI 2.0, 1 DisplayPort 1.4, 3 USB 3.0, 1 BC1.2 fast charging port, Gigabit Ethernet, SD and Micro SD (simultaneous read), and 3.5mm audio jack. Connect all your peripherals through a single USB-C cable. Compatible with Dell, HP, Lenovo, Surface, and other USB-C laptops.
• 4K Triple Display — Know Your DP Version: DP1.4 Source: Single to 4K at 60Hz, Dual to 2K at 60Hz, Triple to 1080P at 60Hz. DP1.2 Source: Single to 4K at 30Hz or 2K at 60Hz, Dual to 1080P at 60Hz, Triple to 1600 by 900 at 60Hz. Your laptop's GPU must support at least 4 displays via DP Alt Mode, including the laptop's own screen, for triple monitor setup. Check your laptop specifications before purchase.
• Windows vs Mac — What You Need to Know: Windows supports Mirror and Extend modes with 3 independent external screens. Mac OS supports Mirror and Non-Mirror modes only. All 3 external monitors show the same content. Intel, M1, M2, and M3 based Mac can only extend ONE monitor. Mac does not support triple independent display with this MST dock. Plug and Play, no driver required for Windows or Mac OS.
• 5Gbps USB, SD/TF and Gigabit Ethernet: 3 USB 3.0 ports transfer data at up to 5Gbps, 10 times faster than USB 2.0. BC1.2 port supports both fast charging and data transfer. Built-in SD and Micro SD slots work simultaneously at up to 104MB/s, supporting cards up to 2TB. Gigabit Ethernet at 1000/100/10Mbps provides stable wired network for lag-free streaming and fast downloads.
• 100W PD Charging with 130W Adapter Included: With the included 130W power adapter, this docking station delivers up to 100W power delivery (PD3.0) to charge your laptop while running displays and data transfer simultaneously. BC1.2 fast charging port also charges your phone or tablet. Your laptop's USB-C port must support Power Delivery protocol for charging function to work.

Overview

• Brand : WAVLINK
• Color : Black
• Hardware Interface : 3.5mm Audio, DisplayPort, Ethernet, HDMI, USB 3.0 Type A, USB Type C
• Compatible Devices : Full-featured USB-C Laptops, Mac OS, Thunderbolt 3/4 Laptops, Windows OS
• Total USB Ports : 4
• Number of Ports : 13
• Total HDMI Ports : 2
• Wattage : 130
• Number of Items : 1
• Item Highlight : Windows Laptop Dock, Triple 4K Display, 100W Charging, 4 USB 3.0, 2 HDMI, DP, Gigabit Ethernet, SD/TF, Audio. Thunderbolt 3/4 See more
• IMPORTANT - Before You Buy
• Windows: 3 independent screens. MacOS: Mirror only.
• All screens show the same content.
• This laptop docking station dual monitor supports multiple combination output, 2560×1440@60Hz. Great for multi‑task work, boost your work efficiency with this usb c dock.
• This usbc hub features four USB3.0 ports with 5Gbps high‑speed transfer. Connect hard drive, mouse, keyboard, USB drive, perfect for laptop docking station.
• Built‑in SD & TF slots for simultaneous read‑write. Fast file access on this usb‑c docking station for photographers.
• Stable 1000Mbps wired network on this docking station. Reliable connection for office home work via usb‑c dock.
• Macbook pro docking station with 3.5mm combo jack. Headset ready for meetings,video calls and audio playback.
• This usb c docking station supports BC1.2 fast charging,5Gbps data transfer,SD&TF card slots. Perfect for macbook docking station for daily office.
• Why can't I get 3 independent screens on my Mac?
• Mac OS does not support MST. Intel, M1, M2 based Mac can only extend to ONE monitor. 2-3 monitors all show same content. Apple limitation, not defect.
• My second or third monitor is not detected on Windows. What should I do?
• Check: 1) USB-C supports DP Alt Mode. 2) GPU supports 4+ displays. 3) Use included cable. 4) Plug directly into laptop. 5) Update GPU drivers.
• Can I use a USB-C to USB-A adapter with this dock?
