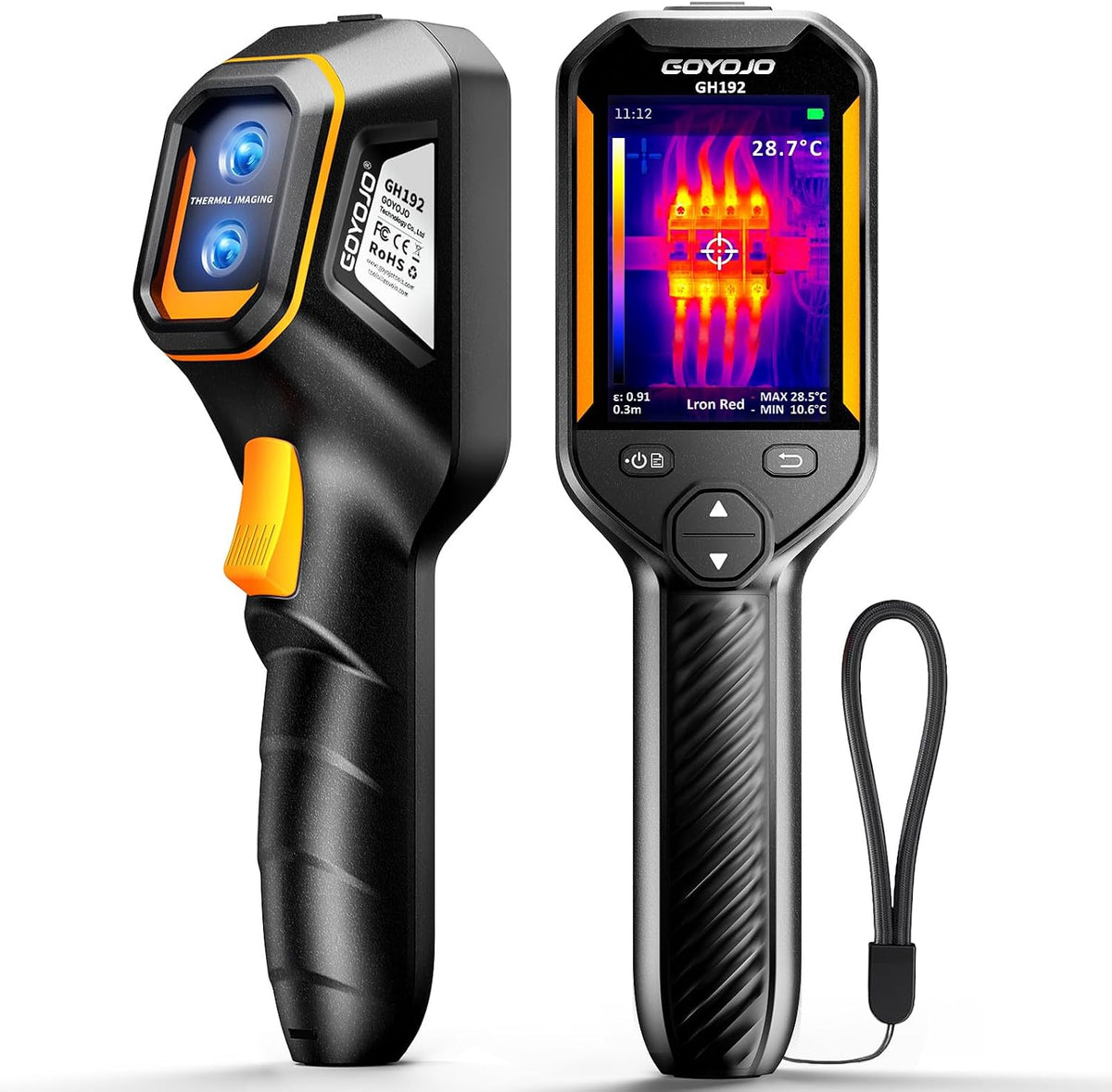

GH192 Thermal Imaging Camera 240X240 Super IR Resolution with 2MP Visual Camera and Fusion Imaging, 25Hz Handheld Thermal Imager with Alarm for Mechanical Maintenance Home HVAC Electrical Inspection

About This

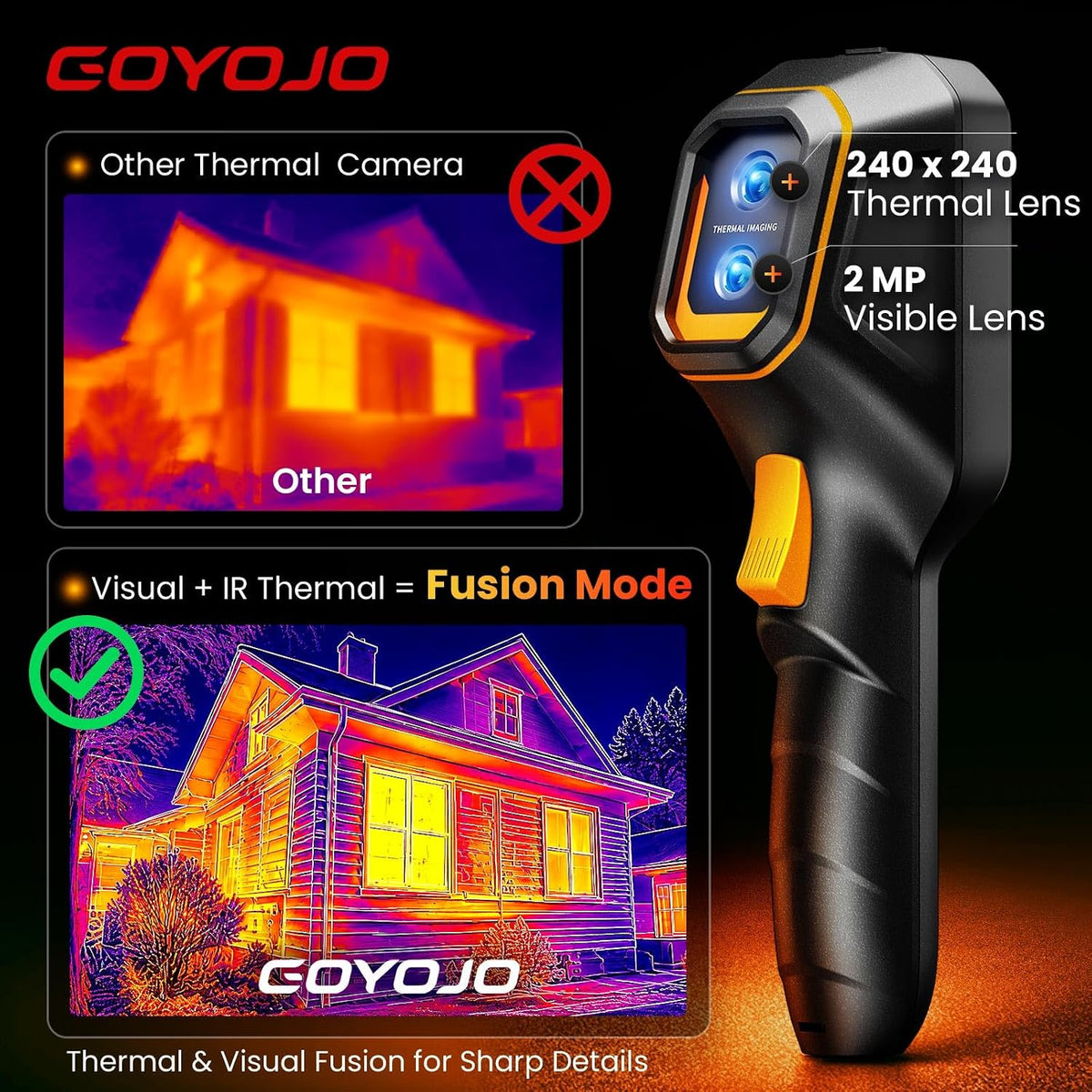

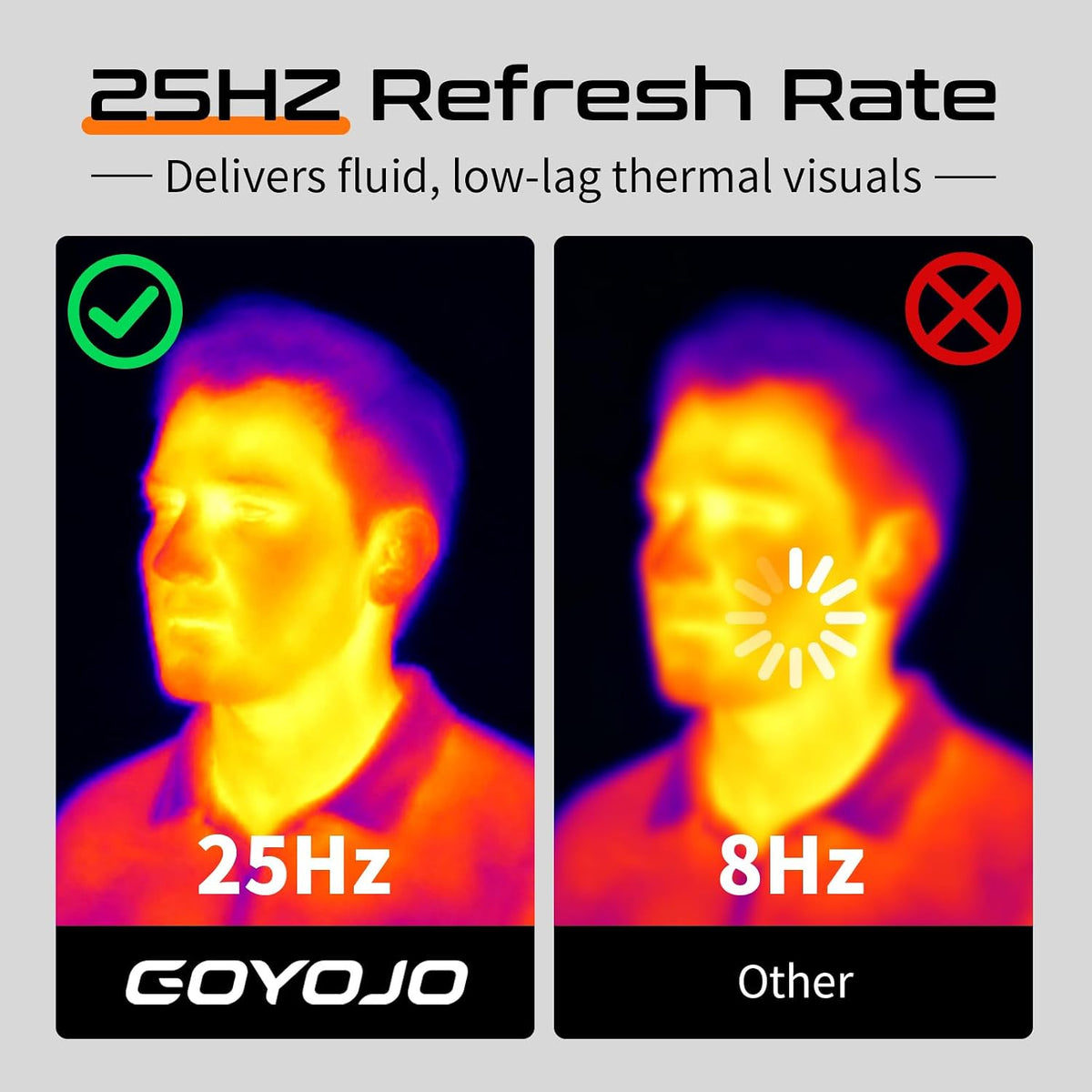

• Dual Light Fusion Imaging: GH192 240x240 Thermal Imager is equipped with a 2MP visible light camera and an infrared camera,Instantly outlines target objects upon activation, a 2.8" 240×320 IPS display, and a 25Hz frame refresh rate. It enables inspections with faster response and more detailed results. [NoteEnable in settings before exporting images "File Transfer"]

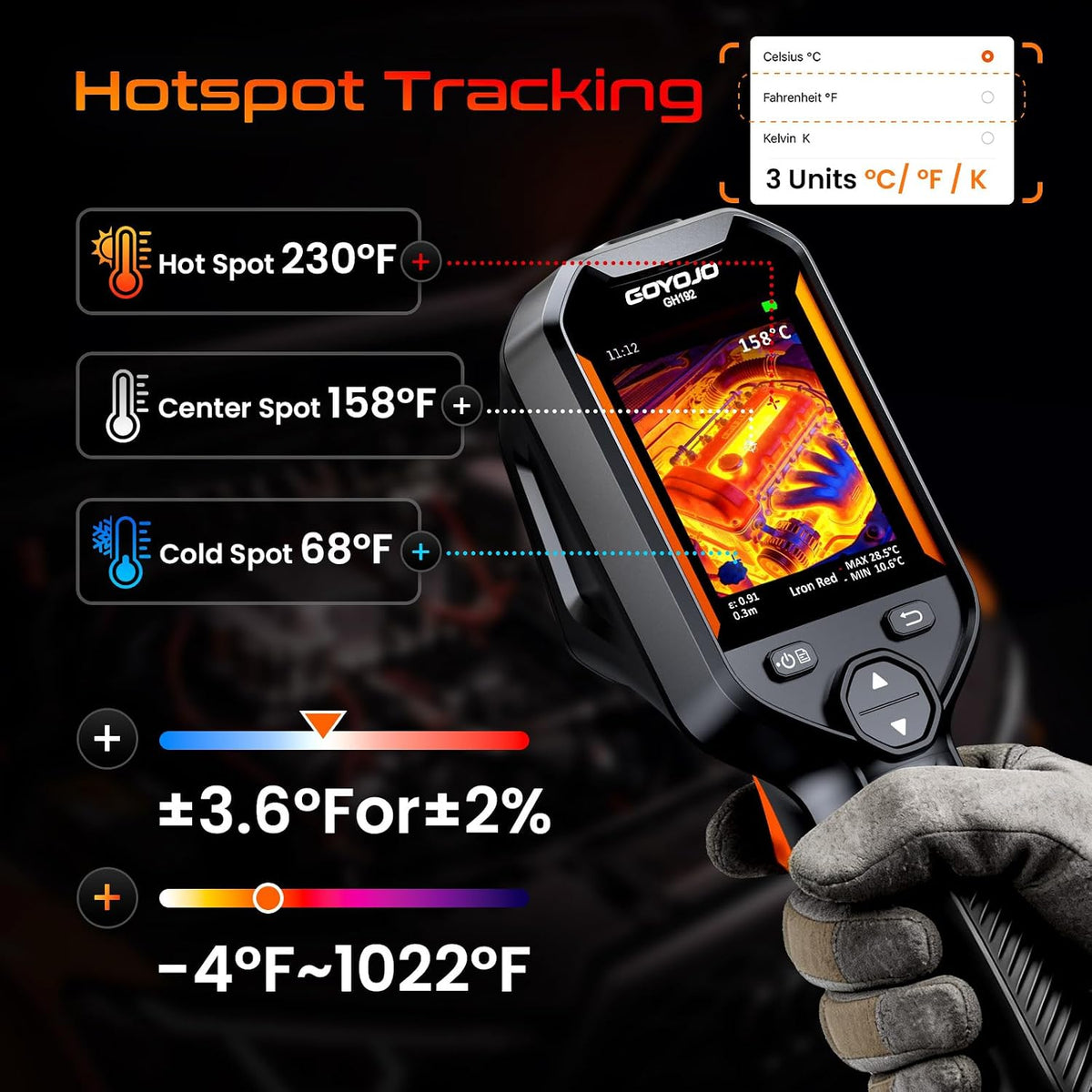

• Auto Temperature Tracking + Temperature Alarm: This thermal imager automatically captures center point temperature and locks onto high/low temperatures, featuring 3-point heat tracking (target temp, minimum temp, maximum temp) within a range of -4°F to 1022°F, allowing key thermal data to be accessible. High-temperature and low-temperature alarms: When any target on the viewing interface meets the alarm criteria, a clear alert appears at the top of the screen, aiding in the identification of temperature abnormalities during inspections.
• 3 Image Modes And 6 Color Palettes: This thermal imager offers 3 image modes — Fusion, Thermal, and Conventional Light — along with 6 adjustable color palettes. The available color scales include White Hot, Black Hot, Iron Red, Rainbow, Red Hot, and Fusion, allowing selection based on specific work needs. These palettes enable flexible choice of the most suitable option for different detection scenarios and objectives, facilitating clear, targeted results.

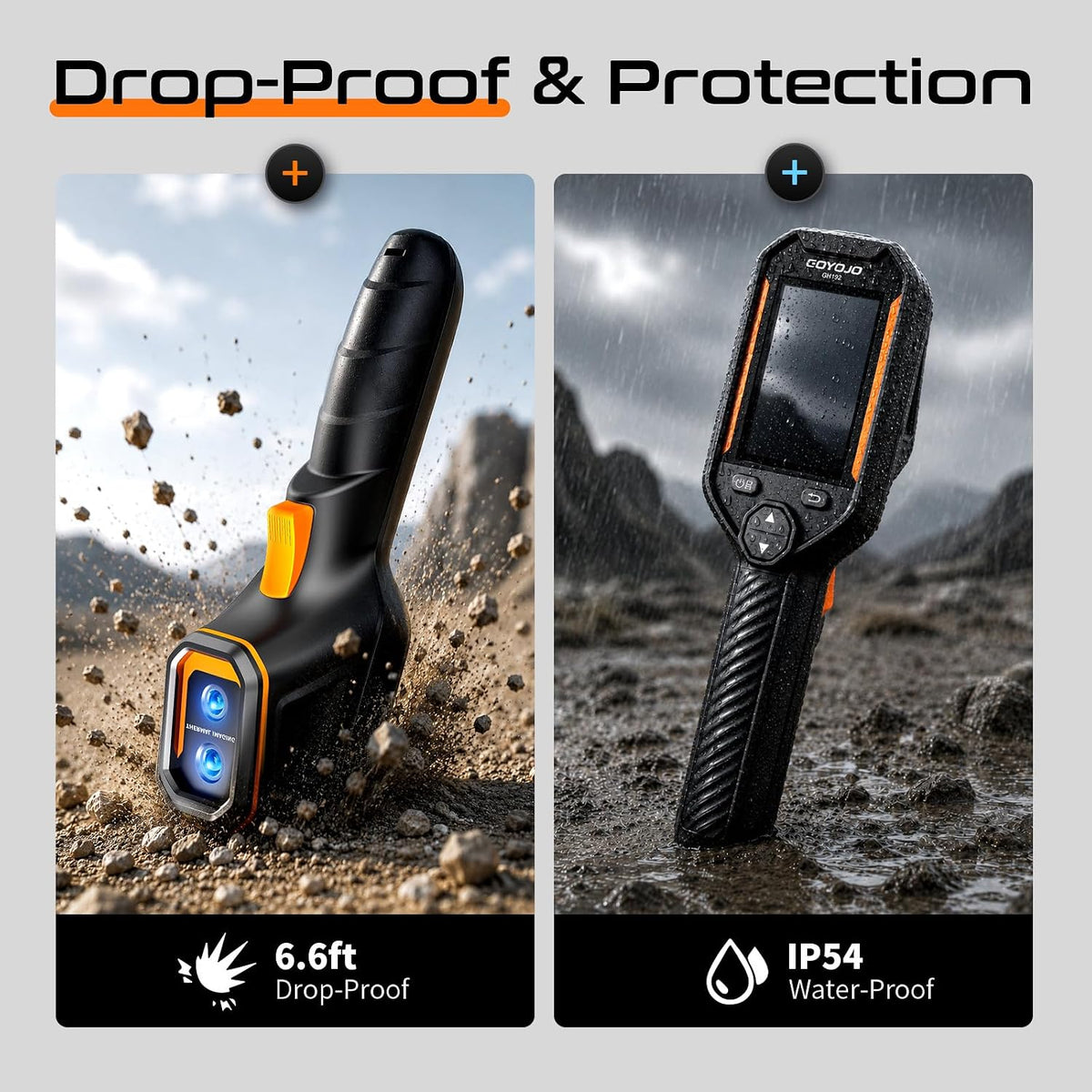

• Durable & Portable Design: 8H runtime, USB-C charging; 6.6ft drop-resistant & IP54 rated Adjust emissivity for different materials to get accurate temp readings every time for tough use.
• Professional-Grade Accuracy For Versatile Inspections: This thermal imager offers a precision of ±2°C. It allows adjustment of emissivity based on specific materials (such as wood, bricks) and modification of object distance to help ensure accurate temperature readings across surfaces. It can be used for scenarios including home inspections (missing insulation, underfloor heating, water pipes), facility maintenance, HVAC troubleshooting, and checks of electrical, PCB, and mechanical systems.

Overview

• Batteries : 1 Nonstandard Battery batteries required. (included)
• GH192 Thermal Camera
• GW192 Thermal Imaging
• GW340 Thermal Imaging

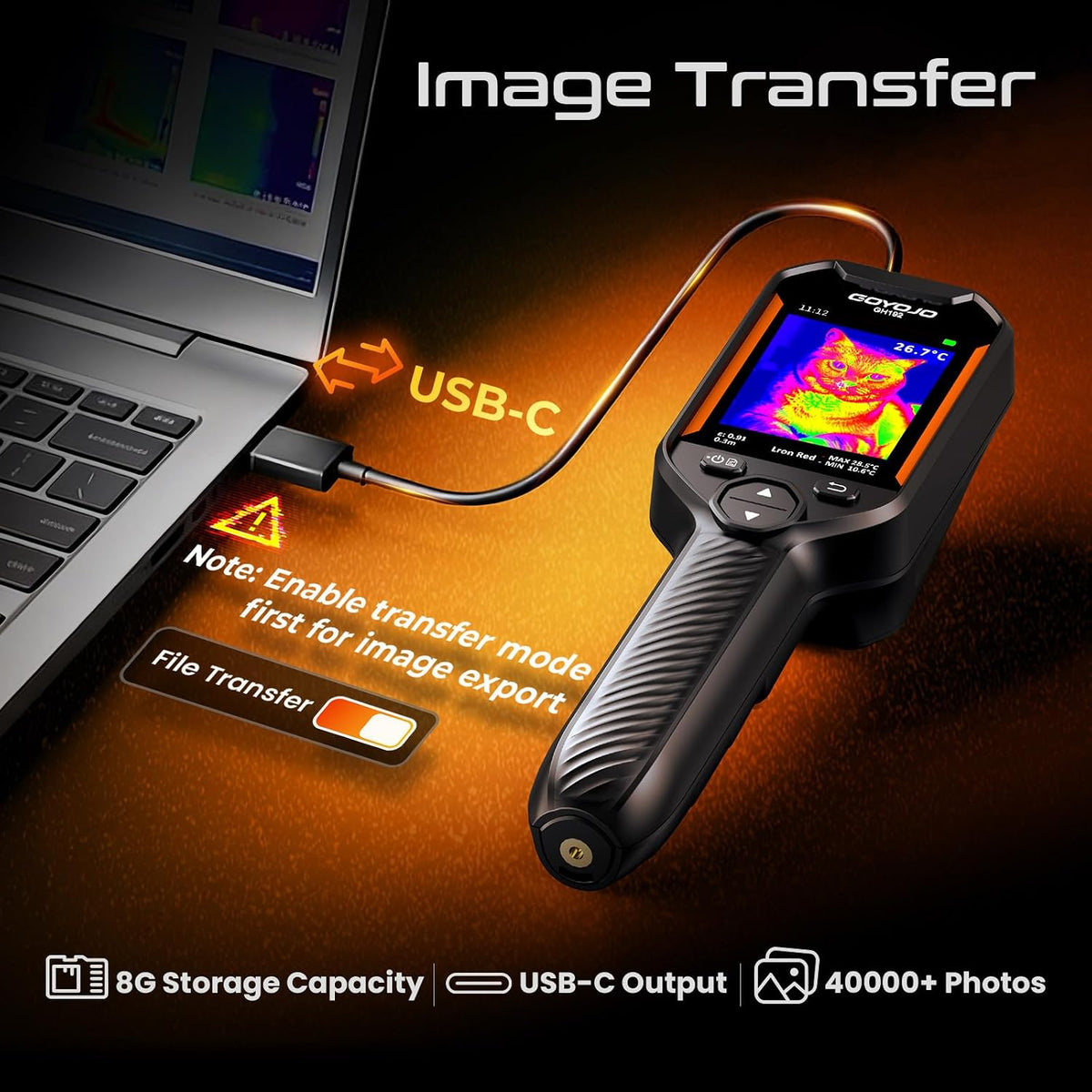

• How to Export Data
• Enable in settings before exporting images (File Transfer)
• Settings > More Setting > File Transfer.
• You’ll need a USB-C data cable with data transfer capability to connect the devices properly.
• Why does the image quality become blurry after a period of use?
• In this situation, you can turn off the device for a while and restart it. If that doesn't resolve the issue, you can reset the machine.
• Settings > More Setting > Factor Reset
• Why always hear a click sound?
• That shutter sound is just the thermal imager calibrating to keep images clear.
• It calibrates more often when it’s cold—totally normal, don’t worry!
• What’s the difference between GH192 and GH340?
• GH192 offers a wider 56.8°×56.8° FOV for quick large-area scanning. GH340 has 640×480 super resolution, ≤40mK sensitivity, and finer IFOV for clearer detail and more precise inspections.
