UGREEN Maxidok Thunderbolt 5 Docking Station, 8TB M.2 NVMe SSD Support

About This

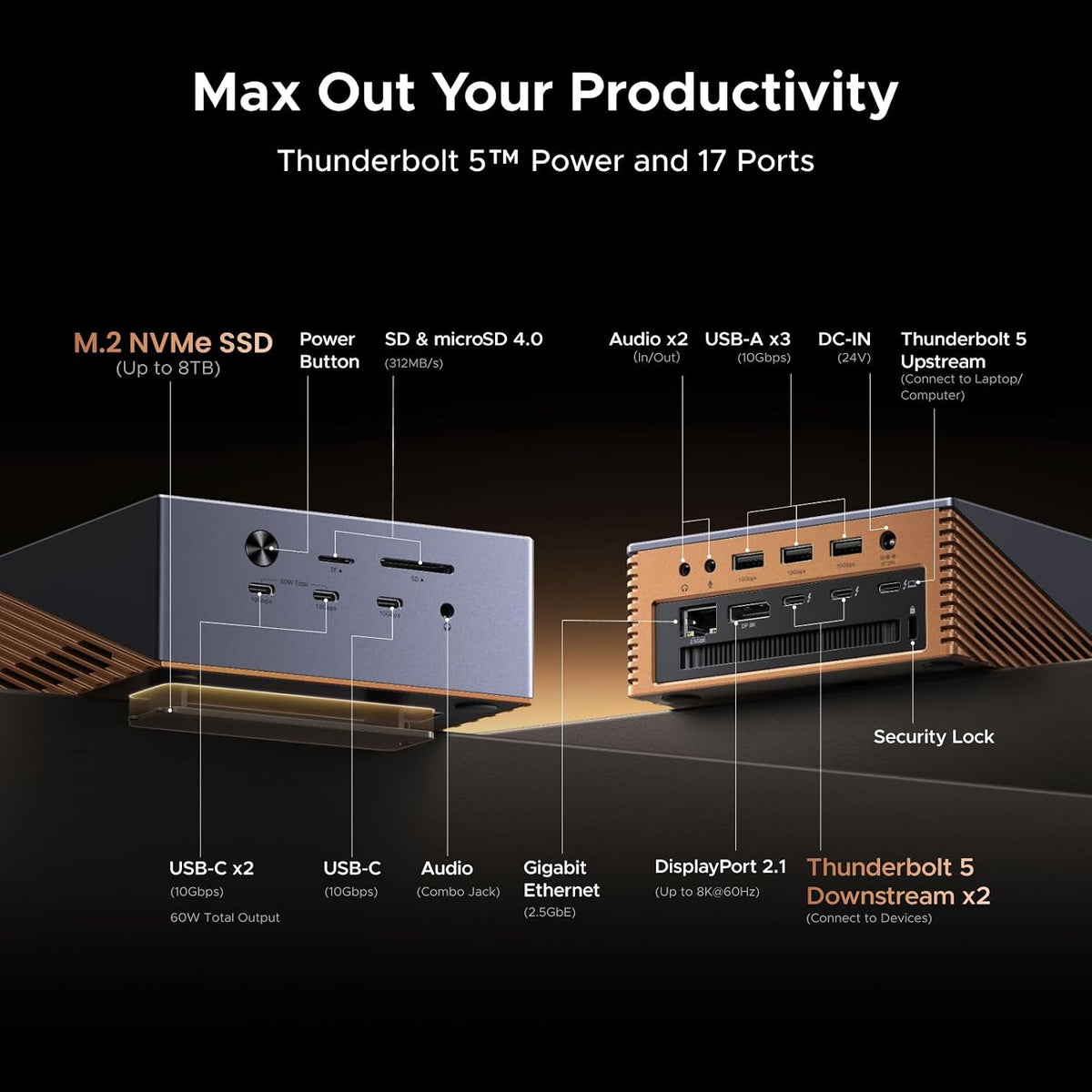

• All-in-One Connectivity: Build a tidy workstation with 17 ports: 3×USB-A 10Gbps, 3×USB-C 10Gbps (2 ports share 60W charging), SD/TF 4.0, 3×3.5mm audio, 2.5G Ethernet, DP1.4, and 2×Thunderbolt 5 downstream ports

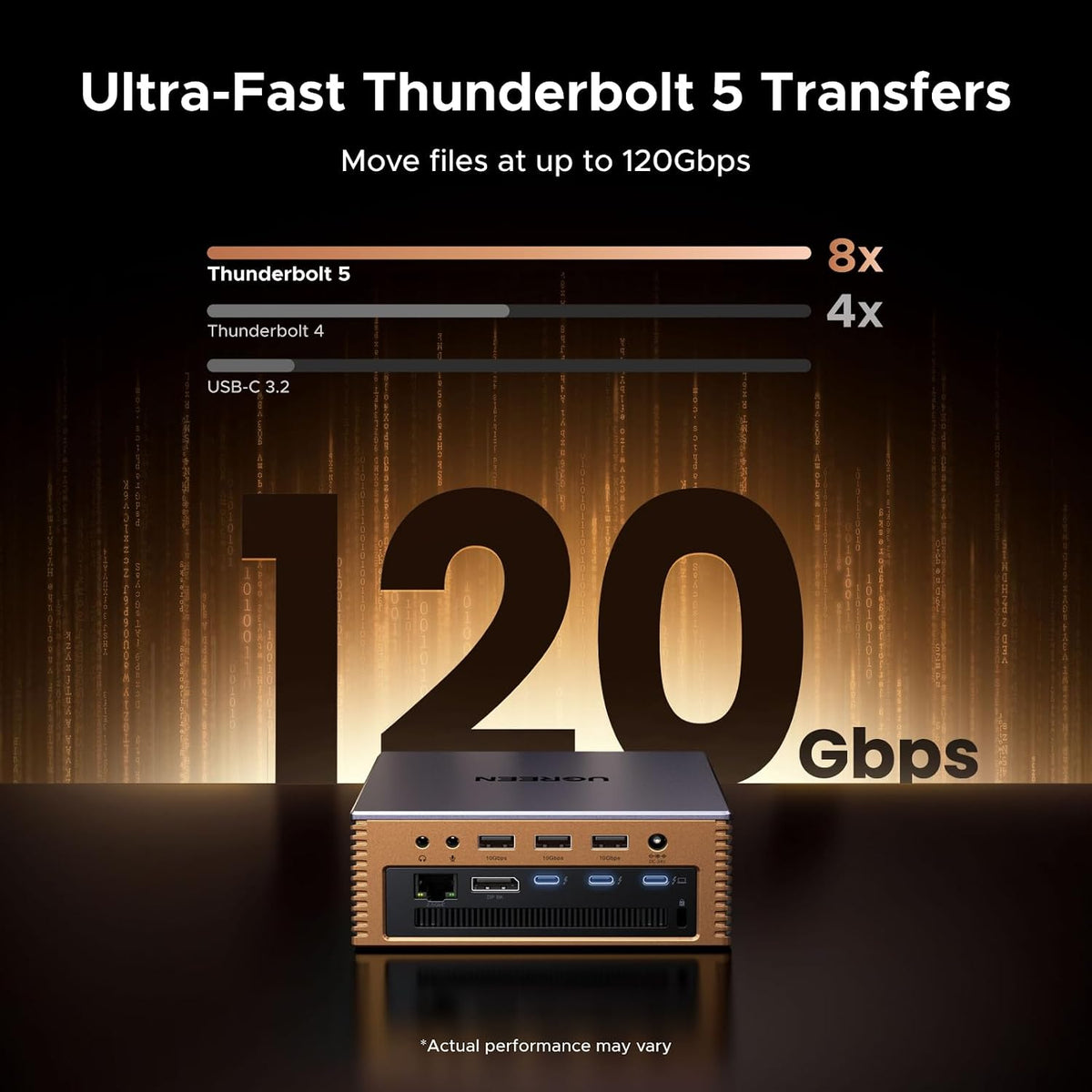

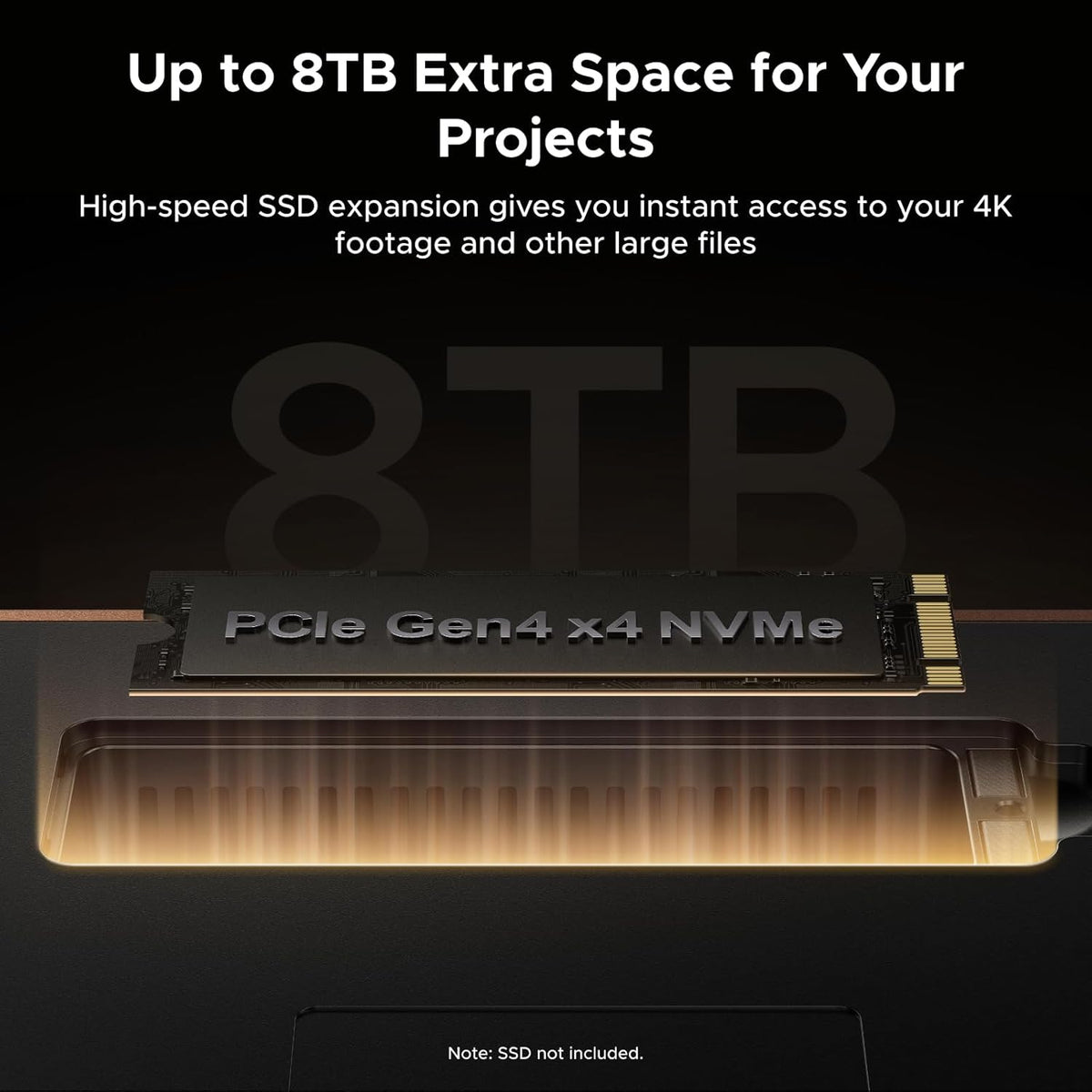

• 120Gbps Thunderbolt 5 Speed & M.2 High-Speed Storage: Intel-certified Thunderbolt 5 provides up to 120Gbps bandwidth. Built-in NVMe PCIe Gen4x4 M.2 slot supports 2230–2280 SSDs up to 8TB for fast external storage. Note: Compatible with M.2 NVMe SSDs with heatsink (height≤12 mm; width≤24 mm), Not compatible with SSDs wider than 24 mm, including Seagate FireCuda 530 with Heatsink, Samsung 9100 PRO with Heatsink, WD_BLACK SN850X Premium Model with OEM Heatsink, and Lexar NM1090 Active Fan Version
• Multi-Monitor 8K/6K Output: Supports triple independent displays on Windows (2×TBT5+DP): dual or single 8K@60Hz. Mac supports dual displays. Native compatible with latest Windows and MacBooks for expanded workspace. Note: The DP port does not support DP++. To connect an HDMI monitor, please use an active DP-to-HDMI adapter or cable; passive adapters and cables will not work

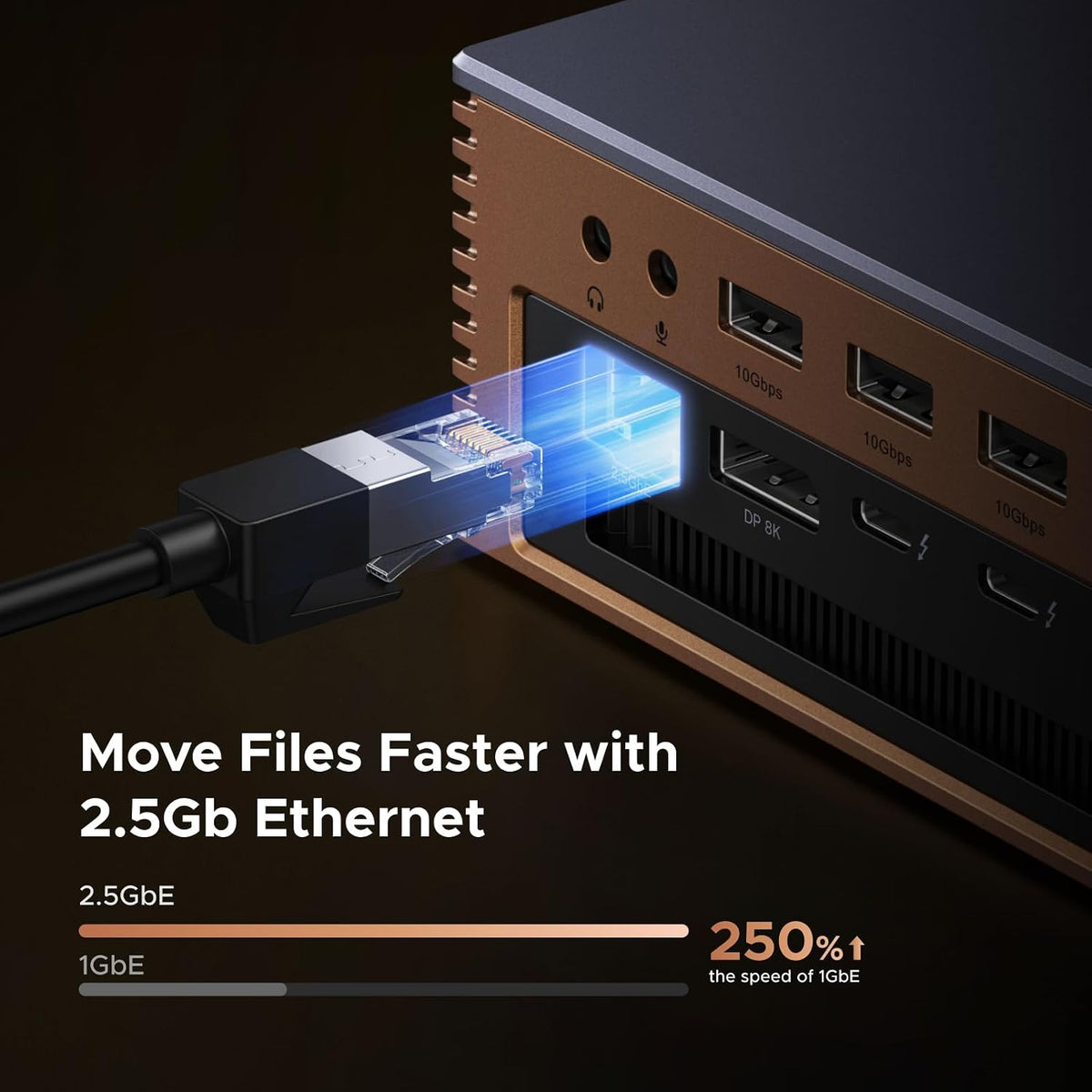

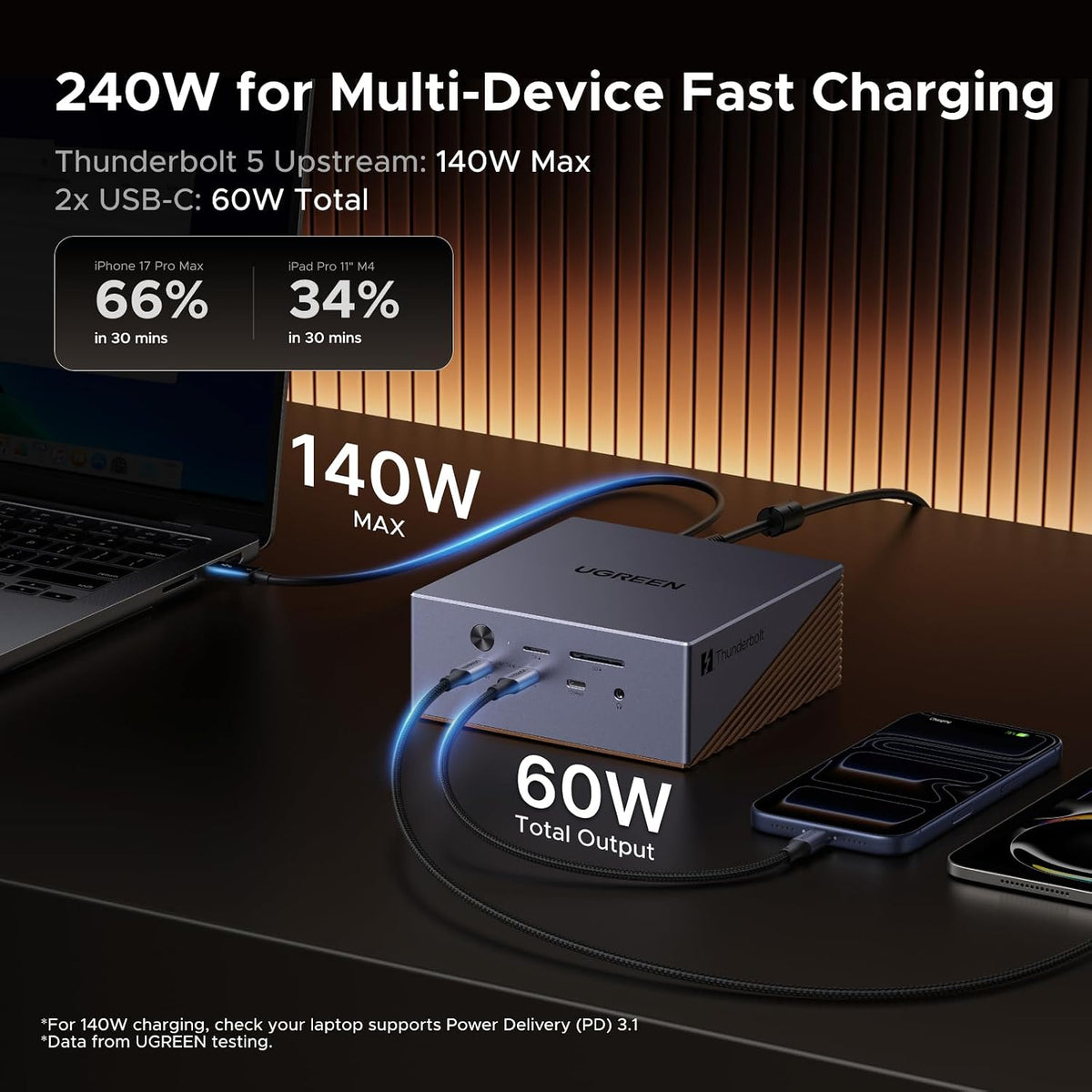

• 240W Total System Power & High-Speed Networking (required) Equipped with up to 240W total power and a built-in 2.5GbE network port for fast and reliable wired connections, with lower latency and a more stable connection

Overview

• Brand : UGREEN
• Color : Bronze
• Hardware Interface : 3.5mm Audio, DisplayPort, Ethernet, Secure Digital Card, Thunderbolt, USB, USB Type C
• Compatible Devices : MacBook (M4 Standard/Pro/Max, M1/M2/M3 Pro/Max), Mac mini (M4 Pro), and Thunderbolt 5/4 Windows laptops (macOS 15+ required for Mac) See more
• Total USB Ports : 6
• Number of Ports : 17
• Wattage : 240 watts
• Number of Items : 1
• Minimum Required Operating System Version : Windows 10
• Item Highlight : 17-in-1, 3xTBT5, DP2.1, Dual/Single 8K@60Hz, 6x10Gbps USB-C&A, 140W Charging, 60W PD-Out,2.5GbE, 3x3.5mm Audio,Cooling System See more
