Guermok 4K@60FPS Capture Card for Streaming, 2K@120FPS USB3.0 HDMI Capture | for USBC Camera Video Capture, 4K60 Passthrough, 3.5mm Audio in & Mic Out, Works with Switch 2/1, PS5/4, Xbox, Pad, Mac, PC

About This

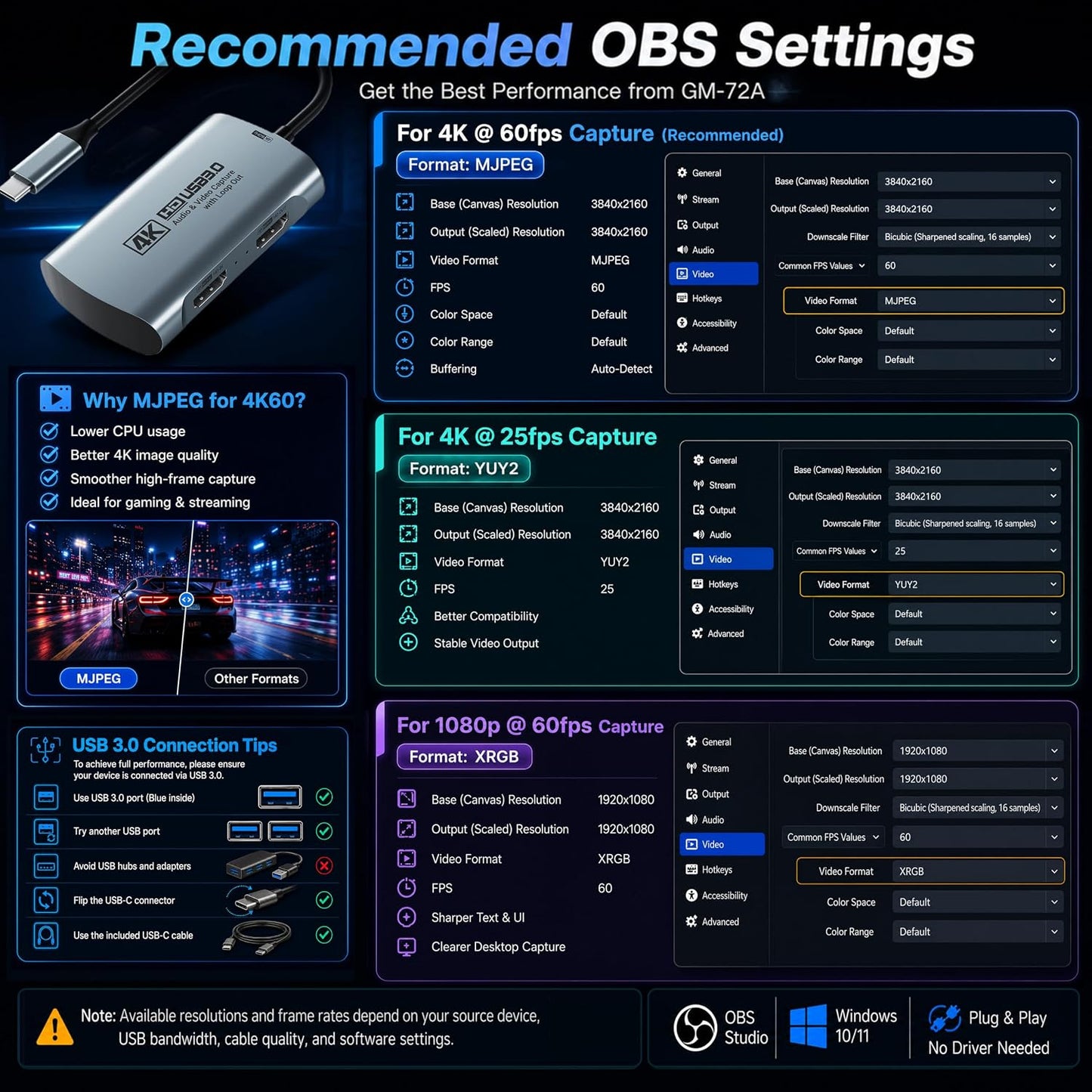

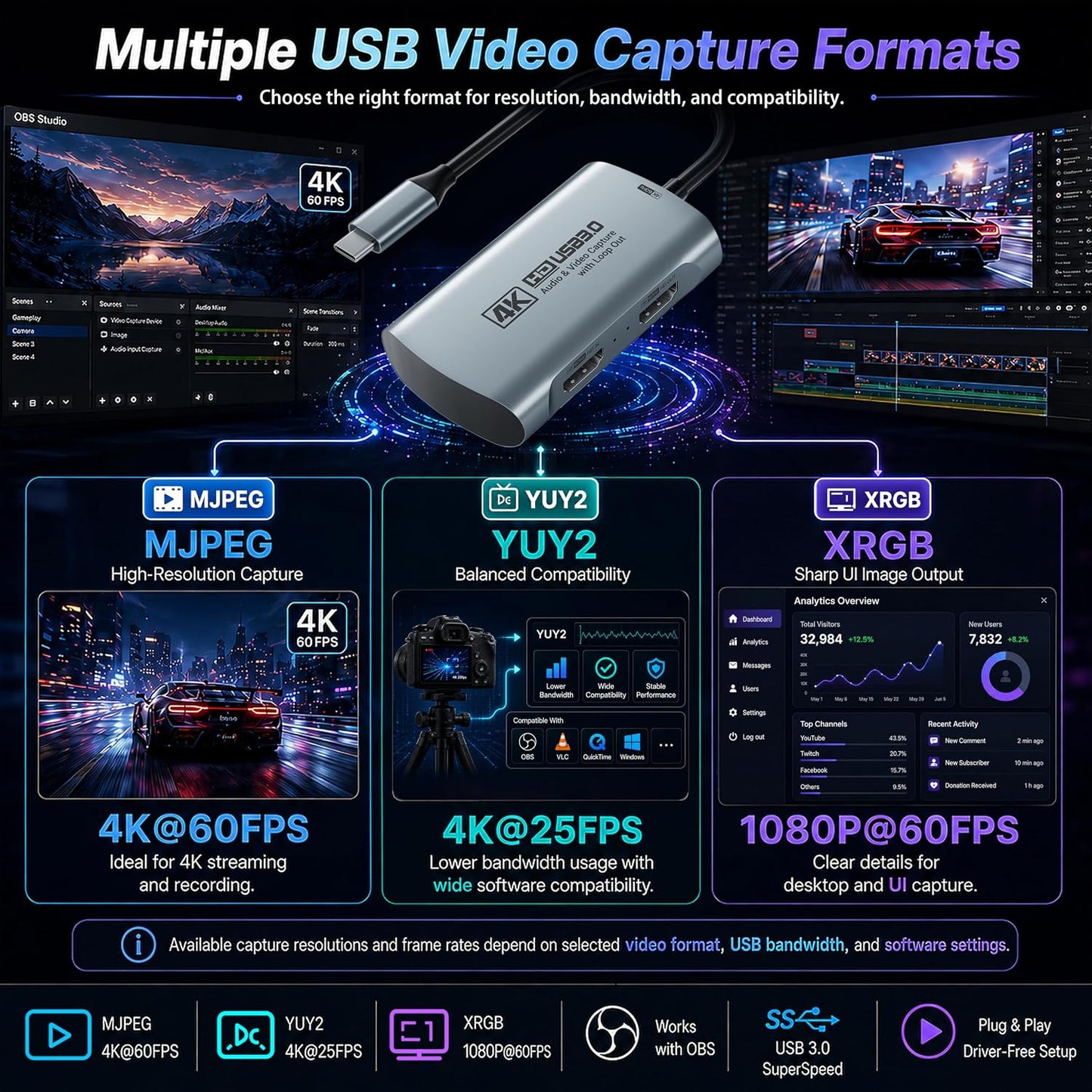

• 4K@60FPS Capture & 4K@60Hz PassthroughSupports up to 4K@60FPS capture via USB 3.0 and 4K@60Hz HDMI passthrough. This HDMI 4K video capture card enables real-time monitoring while recording high-quality video for live streaming, gameplay, content creation, or device mirroring. Capture format: MJPEG 4K@60Hz, YUY2 4K@25Hz, XRGB 1080p@60Hz
• 2K@120FPS & 1080P@120FPS High Refresh Rate SupportHandles high-frame-rate input up to 2560×1440@120FPS and 1920×1080@120FPS. Supports video formats including MJPEG, YUY2, NV12, and XRGB, offering enhanced flexibility for various streaming and recording requirements. No drivers or external power required. Supports EDID, Max loop-out resolution: 4096 x 2160@60Hz YUV420, 4096 x 2160@30Hz YUV444. Please use a USB 3.0 or higher port to connect the device. USB 2.0 ports only support up to 1080P resolution

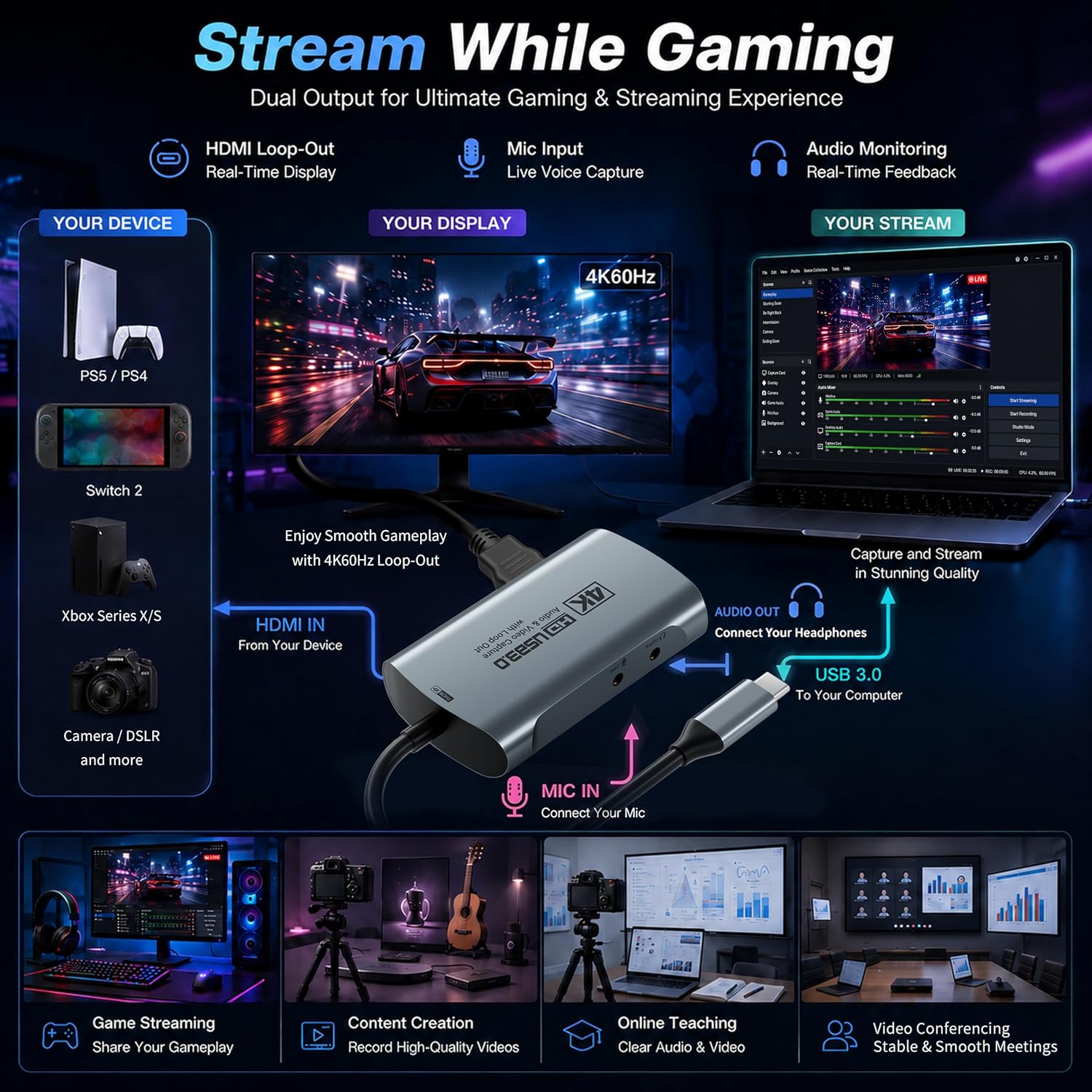

• 3.5mm Audio In & Mic OutThis USB C capture card includes 3.5mm audio input and microphone output ports for integrating external audio. Easily connect a headset or mic to embed commentary or ambient sound into your stream without extra equipment.
• Plug and Play, Broad CompatibilityPlug-and-play setup without any drivers. Works with Windows 7/8/10/11, macOS, Linux, Android 5.0+, and PadOS 17+. Includes USB-A male to USB-C female adapter for flexible port connection via USB-A or USB-C

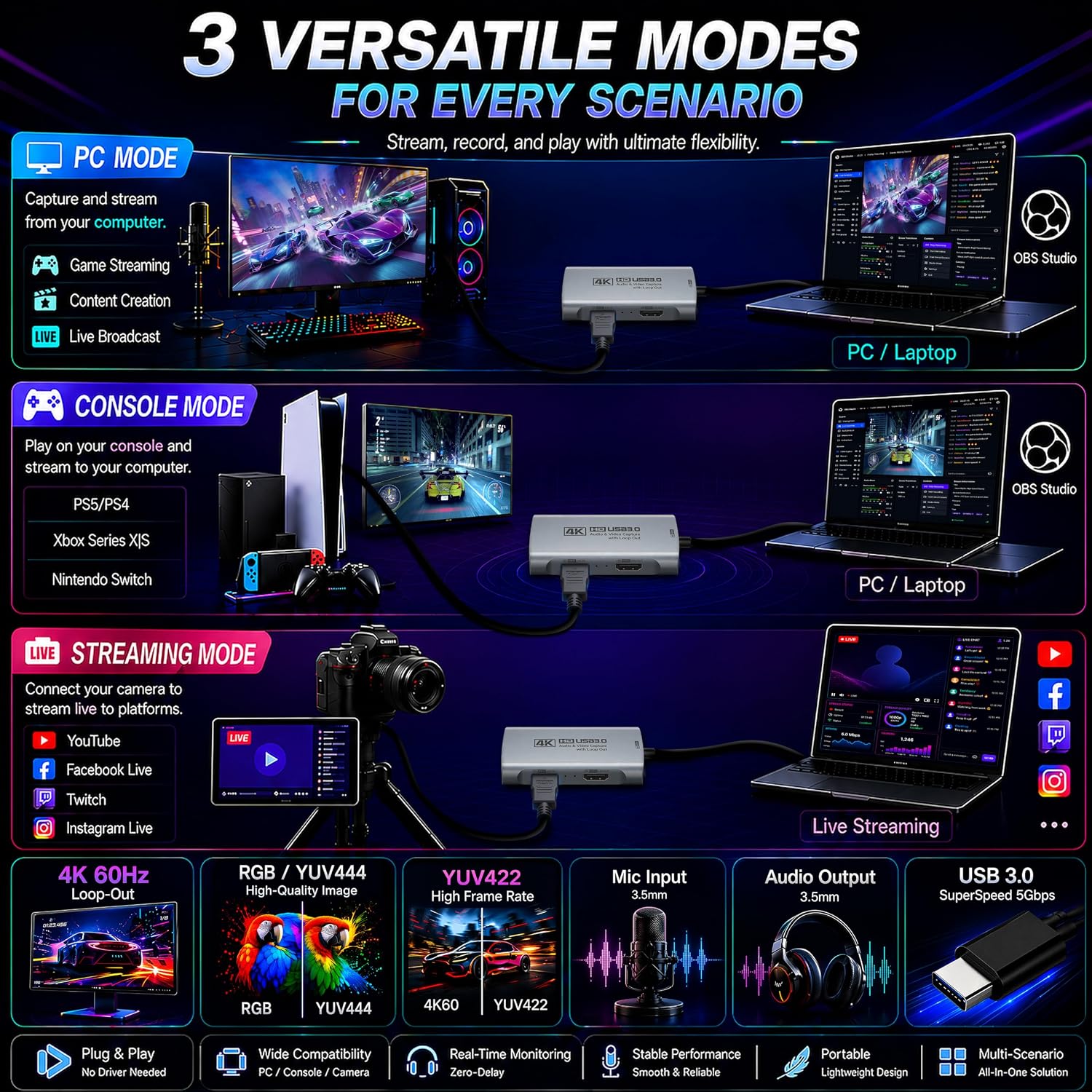

• Universal Device & Software SupportWorks with Switch/Switch 2, PS5/4, Xbox Series X/S, Quest 3/3s, DSLR, webcams, TV boxes, and DVDs. Compatible with OBS Studio, Streamlabs, VLC, PotPlayer, Zoom, YouTube, Twitch, Vmix, HDMI Link, MoniCon, QuickTime, and more. Suitable for online meetings, live streaming, screen capture, and video editing

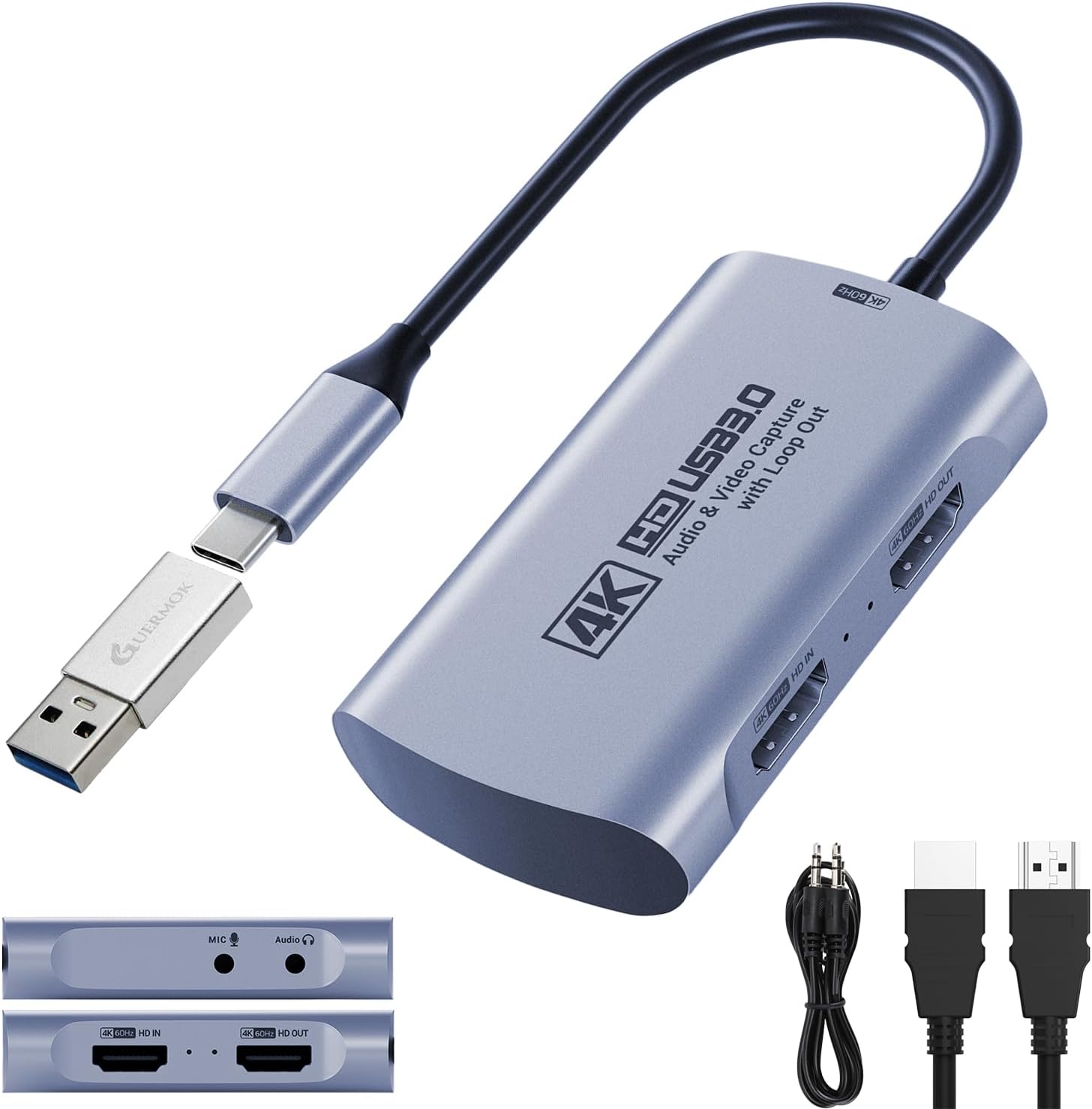

• Package Content & Note 1x HDMI Loop-out Capture Card , 1x USB 3.0 to USB C Adapter (A-side 3.0B-side 2.0), 1x user manual, 1x HDMI Cable, 1x 3.5mm Cable. Please note that you need to restart the OBS Studio software after the audio setup is complete, otherwise it will result in no sound output. When using an adapter, if the device is recognized as USB 2.0, try using the other side with the USB-C port. Simply flip the capture card (180°) and reconnect it to be recognized as USB 3.0

Overview

• Brand : Guermok
• Hardware Interface : 3.5mm Audio, HDMI, USB 3.0, USB 3.0 Type A, USB 3.0 Type C
• Video Capture Resolution : 1080p, 4K
• Operating System : MacOS, Windows 10, Windows 11
• Recommended Uses For Product : Game Streaming, Image Capture, Live Streaming, Video Recording
• The product supports 4K 60Hz input &4K 60Hz output. Please ensure that the cable you are using supports the corresponding resolution, such as 1080P or 4K, to ensure optimal video quality
• There may be a slight delay in the capture (40ms), but it is within an acceptable millisecond range and does not affect the video quality
• The USB-C port (or USB-A when using a USB-C to USB-A adapter) is for signal output .

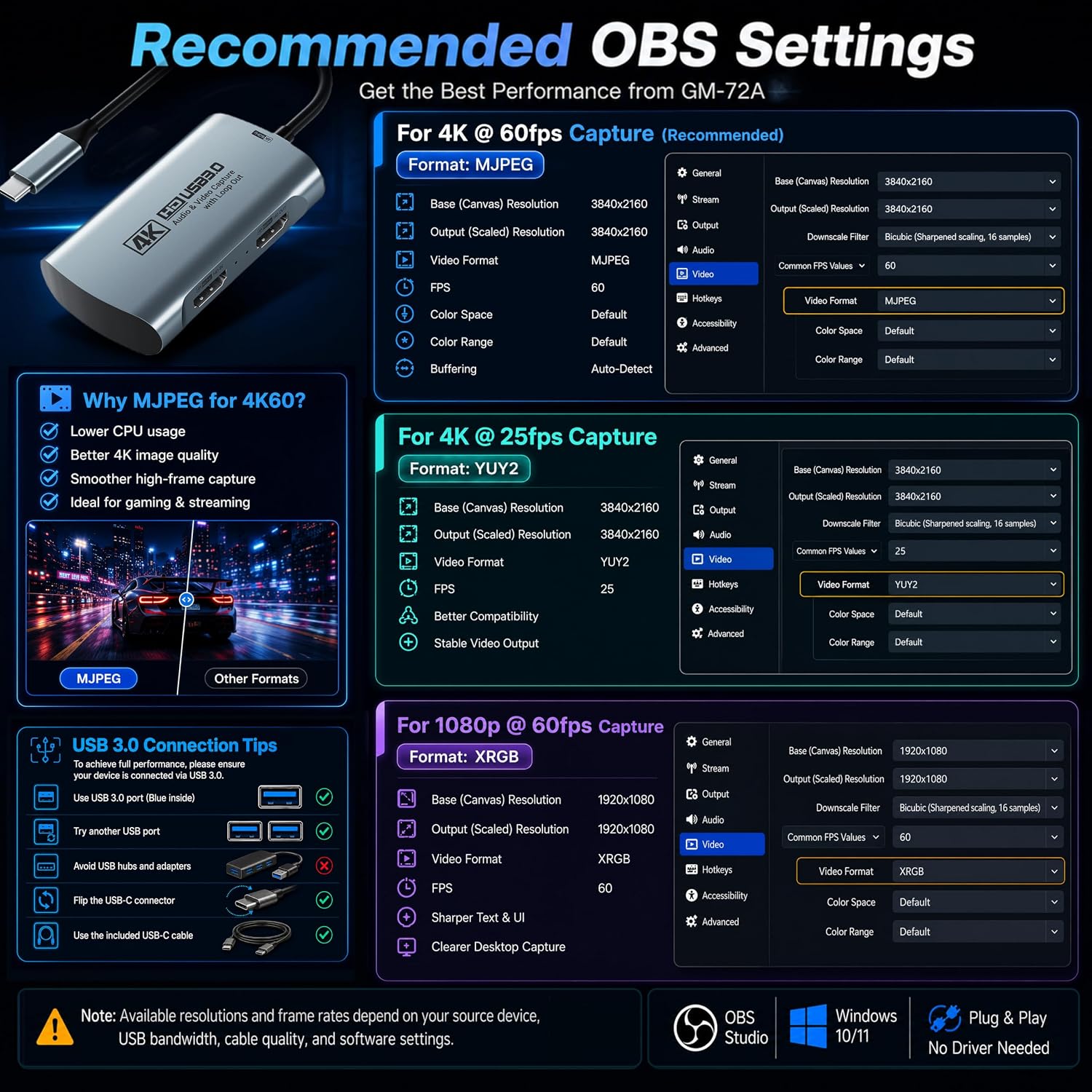

• Please ensure your signal output device has corresponding video capture software, as OBS, to enable screen capture
• When using an adapter, if the device is recognized as USB 2.0, try using the other side with the USB-C port. Simply flip the capture card and reconnect it to be recognized as USB 3.0
• Make sure the output format is compatible with the capture card. After checking everything, try reconnecting the devices and resetting the software. If "no signal" persists, try using a different APP
• Streamlabs Desktop combines pro-level features with effortless setup for seamless streaming, making it easy to manage your live broadcasts and content creation all in one place
• MiniCon allows you to transform your iPad into an external display, offering plug-and-play USB-C connection, low-latency performance, and crisp video—good for streaming and content creation on the go
• Using a capture card with QuickTime on Mac OS allows seamless, high-quality video recording and streaming. It offers easy integration with Mac's native tools, providing smooth performance
• Record USB video and screen easily on Android with USB Camera & XRecorder. Easy plug & play setup, output via USB 2.0 or USB3.0, depending on the type of port on your phone or other devices
• XSplit Broadcaster enhances capture card performance with seamless scene switching, pro-level audio/video mixing, and high-quality streaming or recording on PC
• Compatible with Quest, Android, and HarmonyOS
• When using the loop-out function, if the image appears washed out, please turn off HDR (both input and output), then disconnect and reconnect the capture card to restore normal display. 4K capture requires high device performance. If your device has insufficient specifications, stuttering may occur
• Please ensure your system is within the compatibility range. Some products may require disabling HD CP settings to function properly
• Not all USB ports support 3.0 transmission. To ensure proper functionality, connect the device to a USB 3.0 port (often marked in blue or labeled "SS") and confirm your computer has the required USB 3.0 drivers installed
