Cable Matters 20Gbps USB C KVM Switch, 3-in-1-Out, 140W PD Charging

About This

• Compatibility Warning: Use only the included USB4 20 Gbps cables. Do not use Thunderbolt 3/4/5 cables. The switch works with USB4 and Thunderbolt 4 docks, but its 20 Gbps bandwidth (vs. 40 Gbps for most docks) may reduce display stability or limit resolution/refresh rate compared to a direct connection. Power Delivery depends on the connected dock/monitor design. macOS only supports one external display. Avoid USB-C docks with built-in pigtail / captive cables to prevent compatibility issues.
• Ultra-Fast 20 Gbps USB4 / USB C Switcher for 3 Computers: Share a USB-C or Thunderbolt 4 monitor or docking station between three computers with this USB C KVM switch. Connect the pigtail cable to your monitor or docking station and the included USB-C/USB4 cables to each computer for seamless sharing. Achieve data transfer speeds up to 20 Gbps, perfect for large file transfers, video streaming, and demanding applications.
• 8K Video Resolution Support: Experience stunning 8K video output at 30Hz, delivering exceptional clarity and color accuracy for both professional and entertainment use. Supports up to 8K@30Hz / 5K@60Hz / 4K@144Hz on Windows, and 4K@60Hz on macOS when connected to a single USB-C or Thunderbolt 4 monitor. Compatible with popular models including Dell UltraSharp U3224KB, U3425WE, U2723QE, U4025QW, U2720Q, Dell S2722QC, HP E27m G4 QHD USB-C Monitor, HP Z43 42.5-inch 4K UHD Display, HP Z32k G3 4K USB-C Monitor, ThinkVision P27h-20, T32p-20, LG 27UN850-W, and LG 32UN880-B.

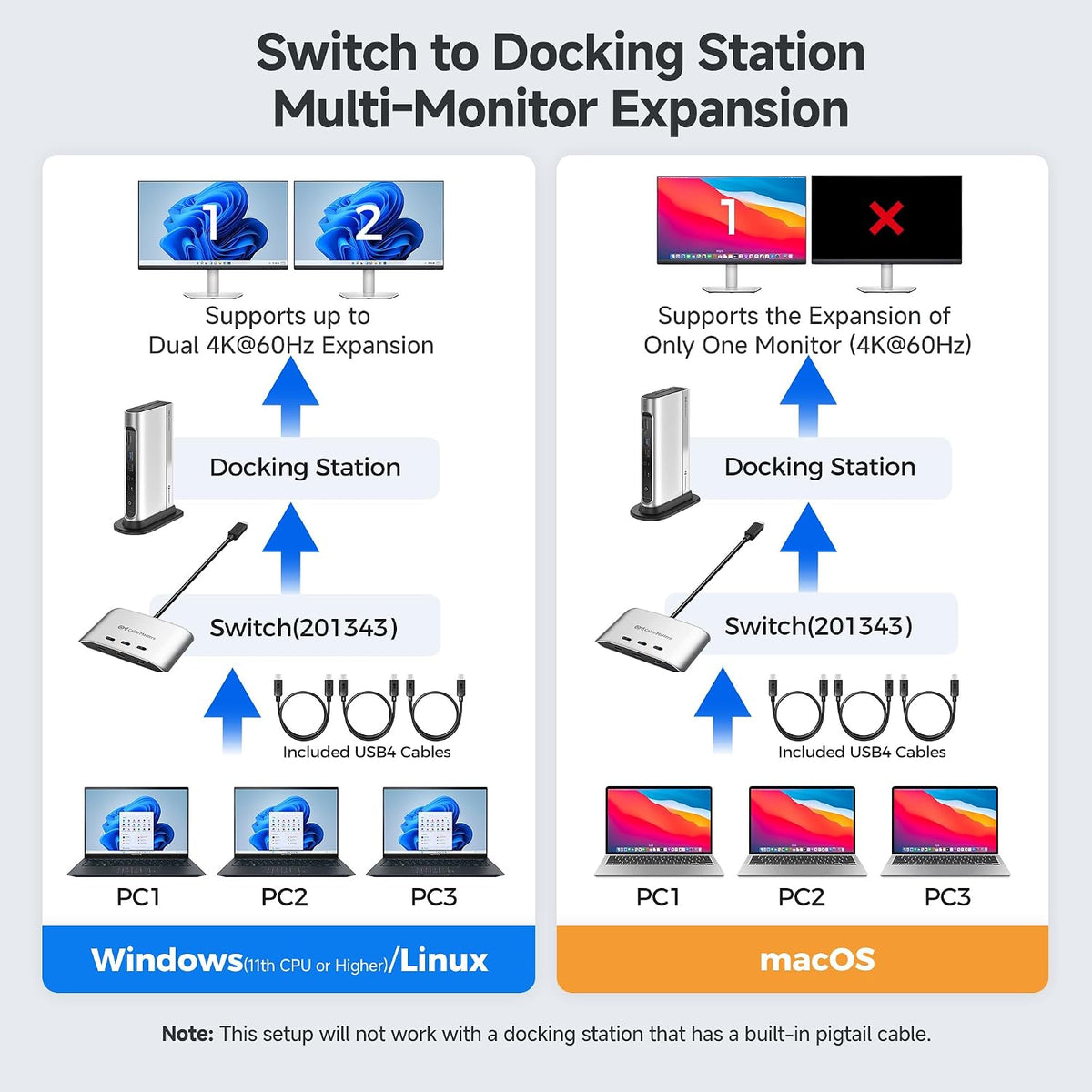

• Docking Station Conversion: Convert any USB-C or Thunderbolt 4 docking station into a fully functional Thunderbolt KVM switch. Connect and control 3 computers using one docking station on Windows, streamlining productivity and maximizing workspace efficiency. Compatible with popular TB4 docks with a detachable host cable: CalDigit TS4/Element Hub, Lenovo ThinkPad Universal TB4 (40B0), Plugable TBT4-UDZ/UDX1, OWC 11-Port TB4/Thunderbolt Go, Anker 777/778, Satechi TB4 Dock, Kensington SD5780T, Cable Matters TB4 Dock 107054, Belkin TB4 Dock Pro INC006, and more.
• 140W PD Charging: This USB-C switch supports up to 140W Power Delivery to fast-charge your active laptop, tablet or any other USB-C device while transferring data at up to 20Gbps. Connect to a USB-C or Thunderbolt 4 display or compatible dock to keep your device powered. Note: Only the selected (active) computer receives charging - not all connected devices at once.

Overview

• Operation Mode : ON-NONE-ON
• Current Rating : 5 A
• Operating Voltage : 28 volts
• Contact Type : Normally Open
• Connector Type : Usb-c
• Brand : Cable Matters
• Switch Type : Solid-state
• Terminal : Screw
• Material : Copper
• Circuit Type : 3-way
