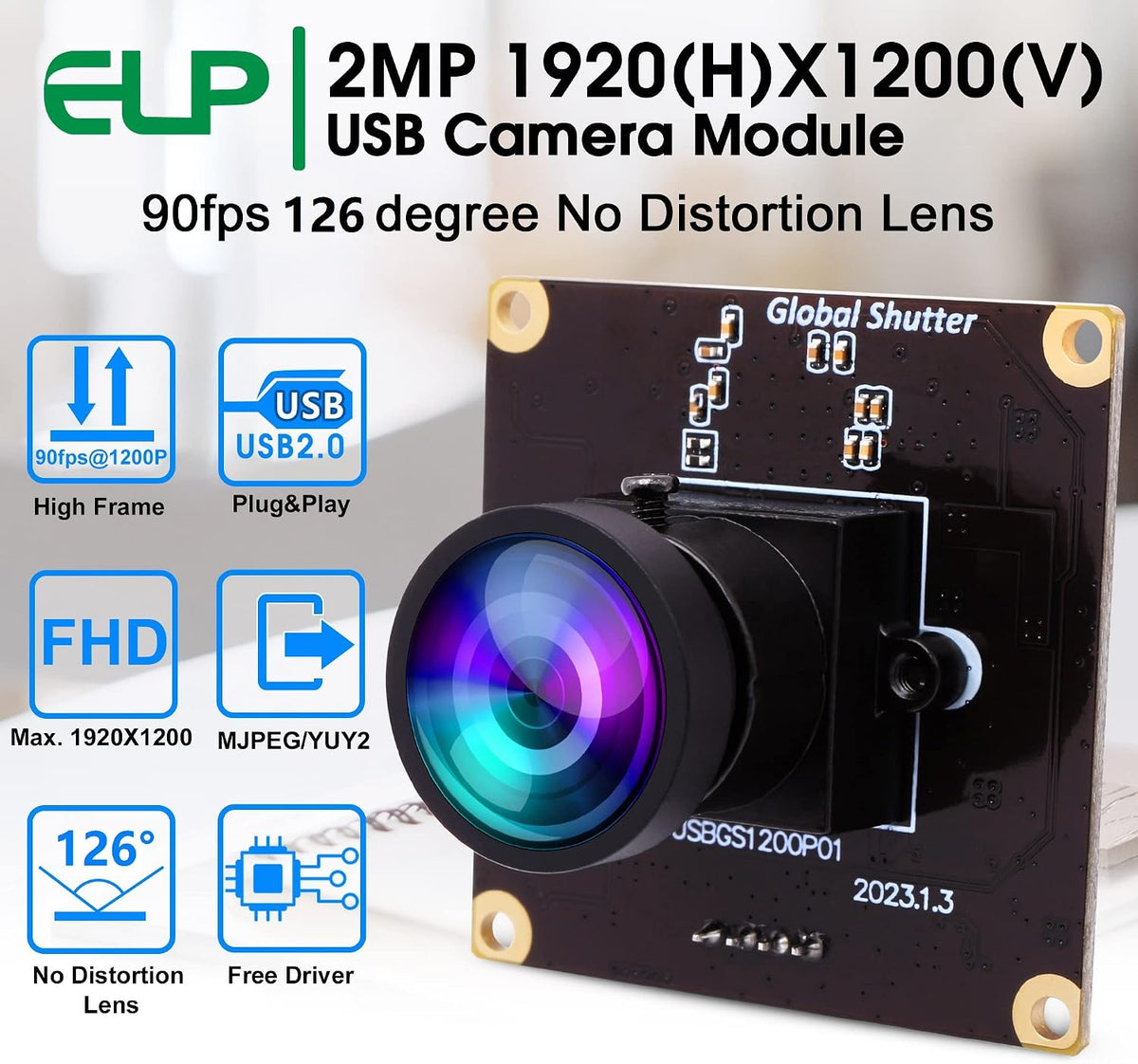

ELP Global Shutter USB Camera Module High Speed with Wide Angle Lens for Computer 1080P Mini UVC USB2.0 Webcam Board High Frame 90fps PC Camera for Laptop (100° no Distortion Lens)

About This

• Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
• HD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6” Aptina AR0234 high quality sensor for sharp clear image.
• Wide Angle 120degree No Distortion Lens, HFOV about 126degree, mini 38mmx38mm camera board can be used in machine visions for personal or industrial.
• Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
• Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs iris and physiognomy recognition, depth and motion detection.

Overview

• Photo Sensor Technology : CMOS
• Video Capture Resolution : 1080p
• Maximum Focal Length : 100 meters
• Maximum Aperture : 2.4 f_stop
• Flash Memory Type : Micro SD
• Video Capture Format : MJPEG/YUY2
• Screen Size : 14 inches
• Connectivity Technology : USB
• Color : 100° no distortion lens
• Model: ELP-USBGS1200P01 Sensor: Aptina AR0234 (1/2.6”) Global Shutter Max Resolution: 1920 (H) *1200 (V) Lens Size: 1/2.6 inch (4:3) Pixel Size: 3.0μm Compression Format: MJPEG / YUV2 (YUYV) Resolution & Frame rate: 1920x1200@90fps MJPEG/1920x1080@90fps MJPEG 1600x1200@90fps MJPEG/1280x960@90fps MJPEG 1280x720@90fps MJPEG/1024x768@90fps MJPEG 960x720@90fps MJPEG/800x600@90fps MJPEG 640x480@90fps MJPEG/320x240@90fps MJPEG Surface Mount Technology SMT Focus: Fixed Central Definition:600LW/PH (Center) S/N Ratio: 37dB Dynamic Range: 70dB Sensitivity: 1.4V/lux-sec@550nm Mini Illumination: 0.3lux Shutter: Global Shutter Interface: USB2.0 High Speed AEC Support/AWB Support/AGC Support Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure Lens Parameters: HD 2.1mm lens Optional 3.6mm/2.8mm/2.9mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens (FOV 65~130 degree optional) Fisheye lens 150 degree /180 degree etc. LED board power connector: Support 2P-2.0mm socket Power Supply: USB BUS POWER 4P-2.0mm socket Operating VoltageDC5V Working Current160mA- 190mA Dimension38mm×38mm Storage Temperature-20°C to 80°C Working Temperature0°C to 60°C USB Cable :1M Operating System Request: WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
