2PCS BME280 3.3V Sensor Module Pre-Soldered High Precision Atmospheric Pressure Sensor GY-BME280-3.3 Temperature Humidity Sensor Module for Raspberry Pi and Other MicroControllers

About This

• The BME280 is the next-generation of sensors, and is the upgrade to the BMP085/BMP180/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI.
• Pre-soldered BME280 Sensor Module: Solderless! Pins already attached. Ready to plug in and go.
• BME280, the precision sensor from , is soldered onto PCB. Not only the pressure and the temperature, this sensor can measure humidity. It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
• Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V; Pressure: 300-1100 hPa; Temperature: -40 to +85°C ; Humidity: 0-100%; Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
• BME280 3.3V Sensor Module: High resolution and low noise, with quick response times, can be used for altitude measurements, weather monitoring, or even gaming!

Overview

• Even better, this product is ready to be plugged in since it already has soldered pins. Saving time and avoiding danger.
• Specifications
• Package Included: 2pcs BME280 3.3V Atmospheric Pressure Sensor Module
• BME280 is a Temperature, Humidity & Pressure Sensor breakout board.
• The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.

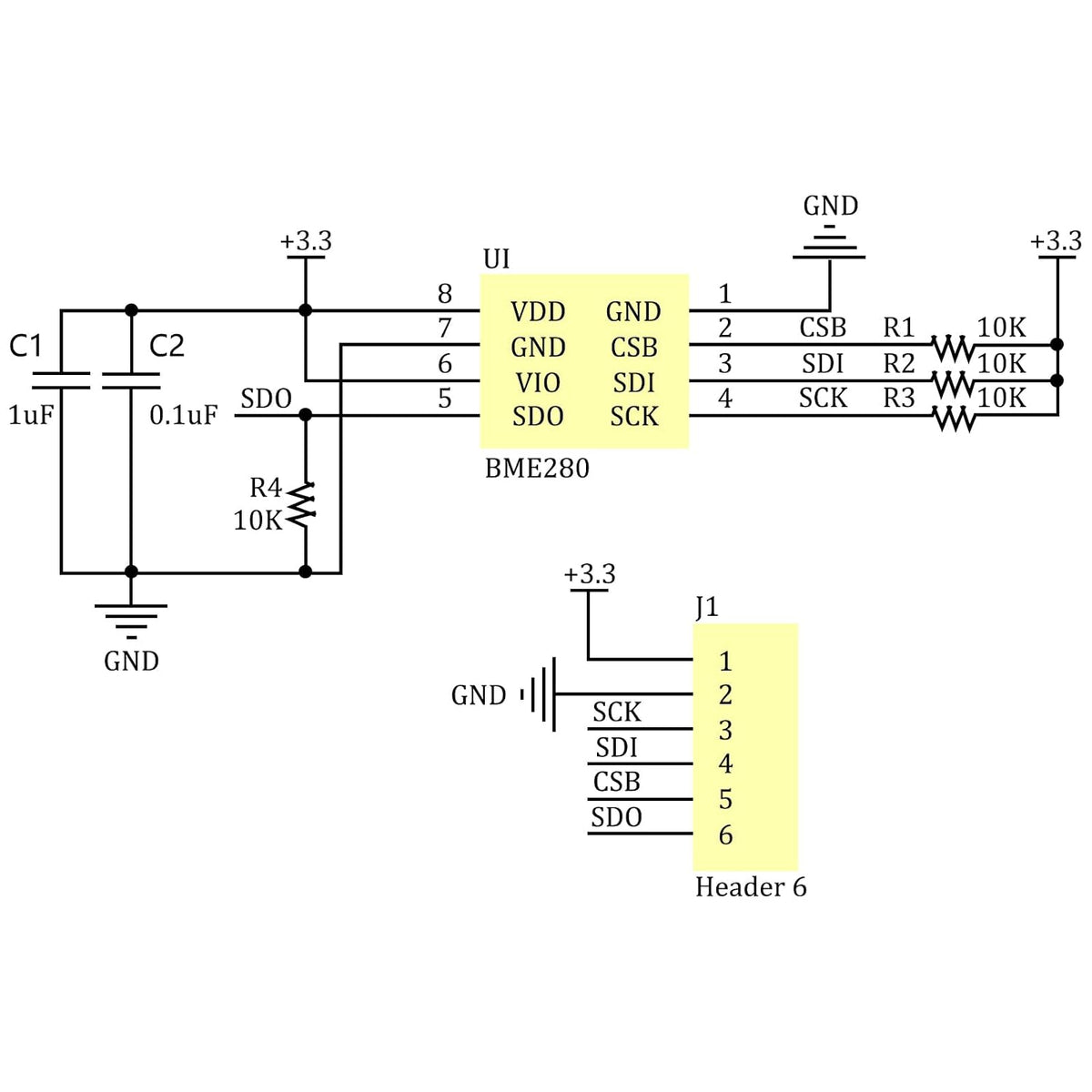

• Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
• If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1!
• Interface: I2C and SPI
• Supply Voltage: 3.3V
• Measurements: Temperature, Pressure, Humidity. Pressure can be converted to altitude.
• Compatibility: All Raspberry Pi and any microcontroller with I2C or SPI capabilities.
• Soldering: Comes Pre-Soldered.
• Temperature Range: -40 - 85 °C
• Pressure Range: 300 - 1100 hPa
• Humidity Range: 0 - 100 %
• Humidity Response Time: 1 s
• Current Consumption:~3.6 μA
