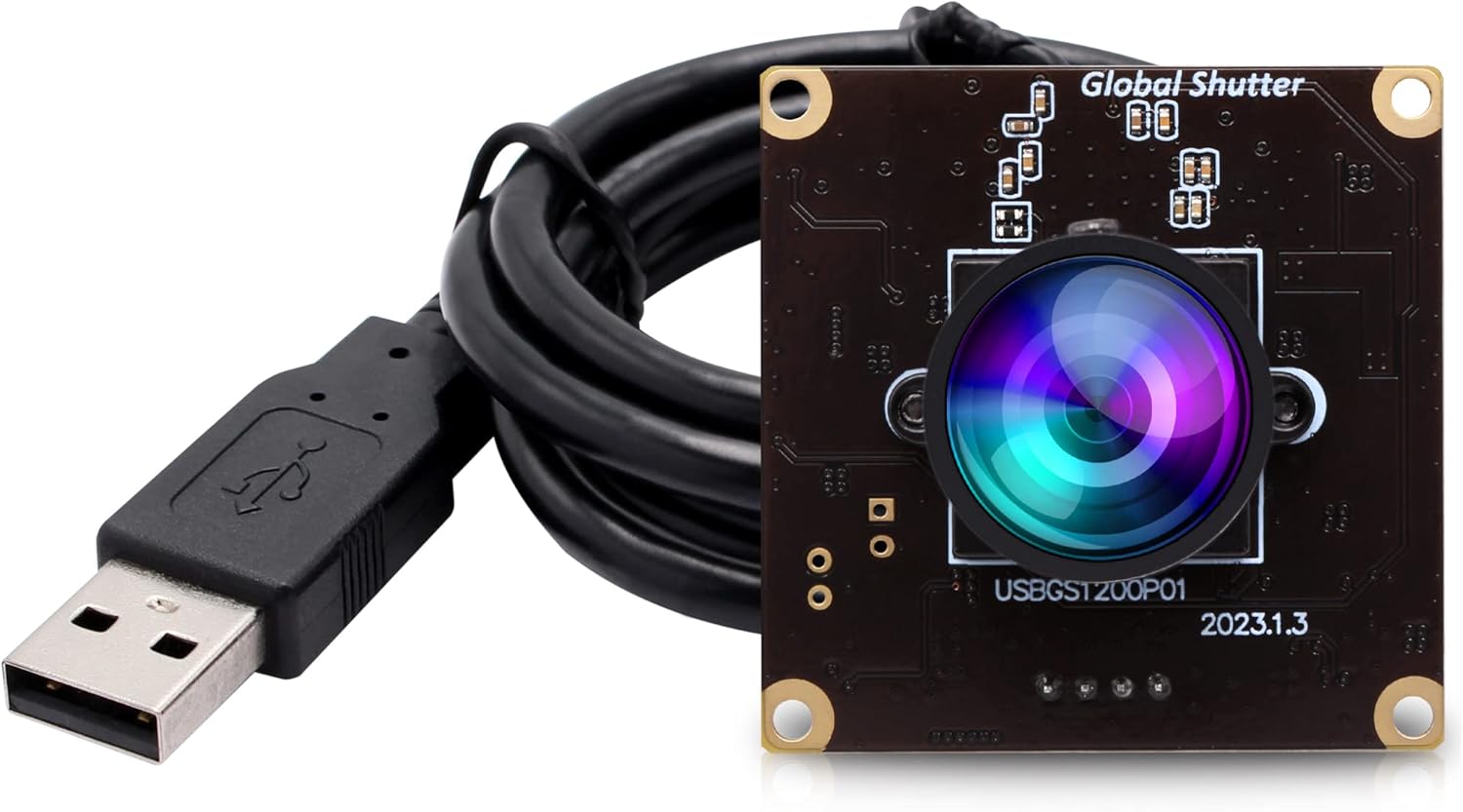

ELP High Speed Wide Angle Global Shutter USB Camera Module for Computer 1080P Mini UVC USB2.0 Webcam Board with 120degree No Distortion Lens AR0234 High Frame 90fps Web PC Camera Board for Laptop

About This

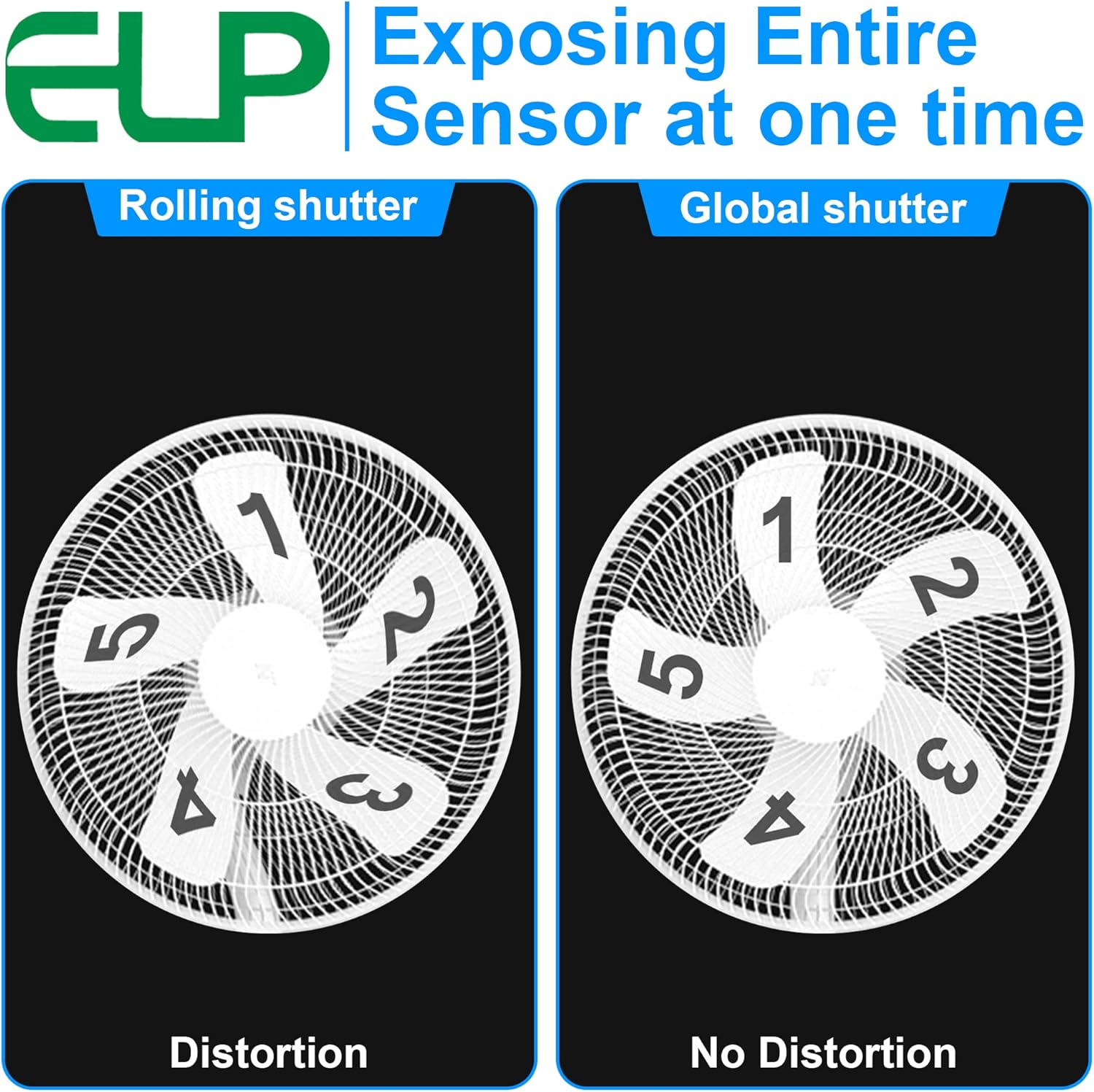

• Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

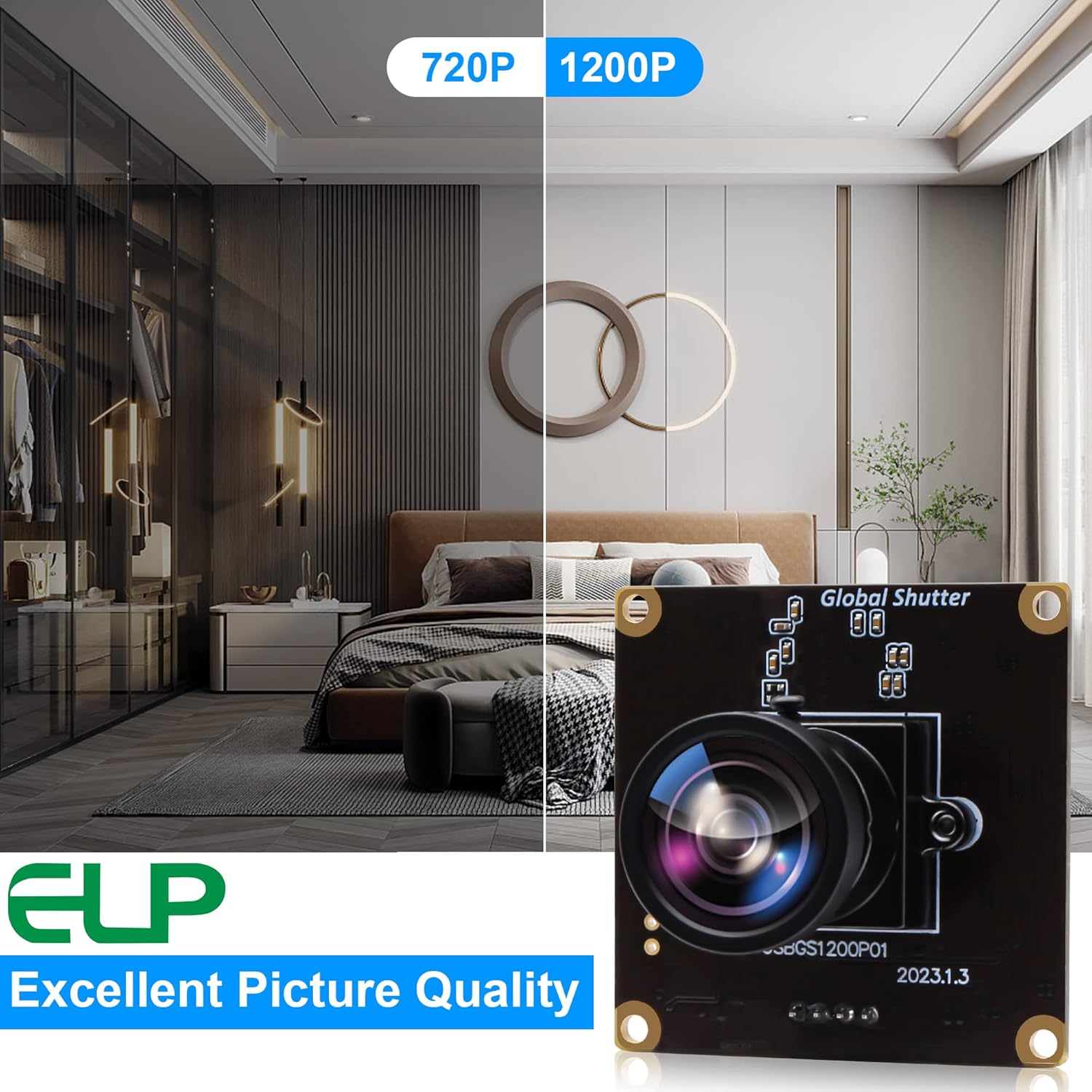

• HD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6” Aptina AR0234 high quality sensor for sharp clear image.

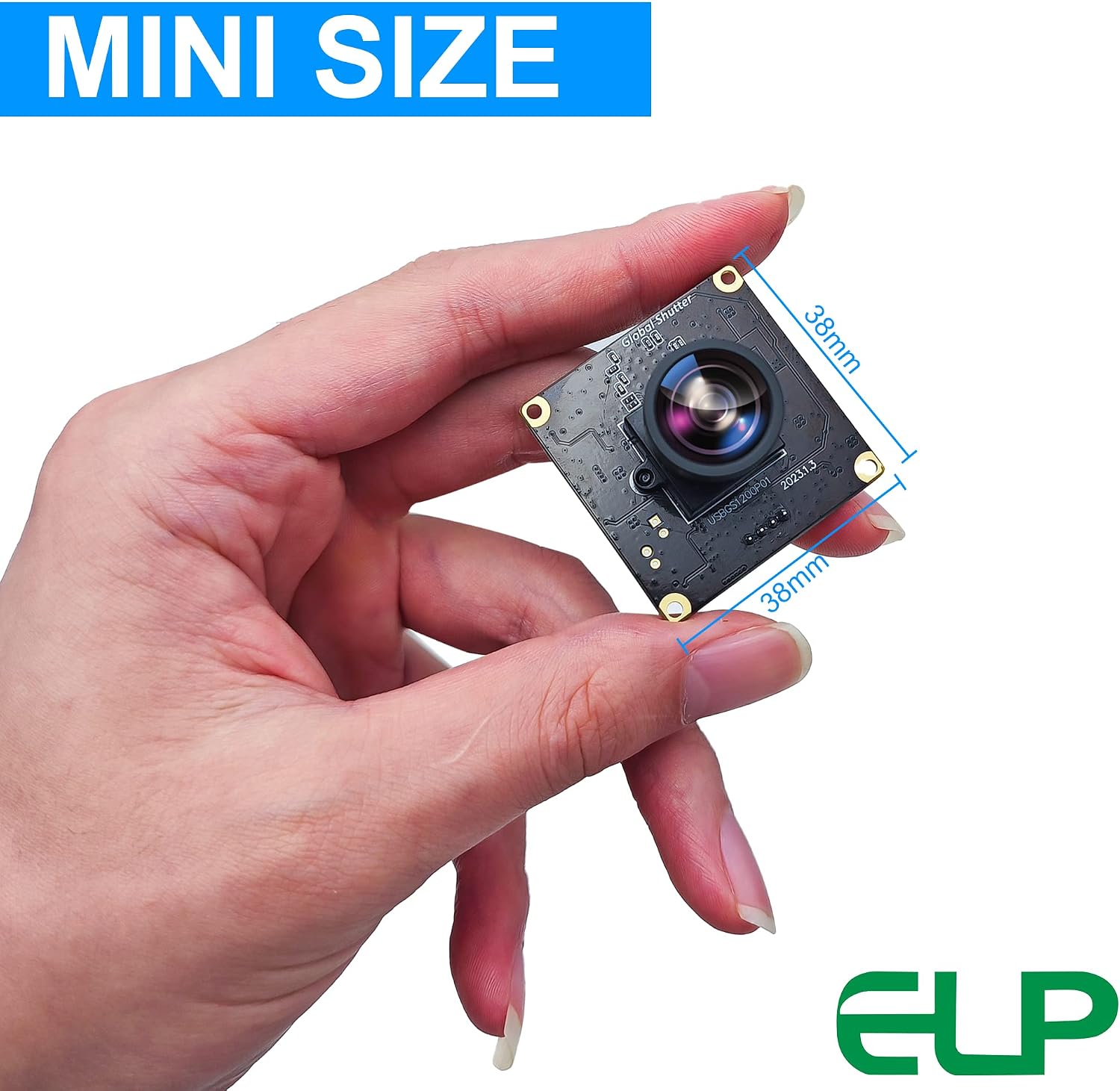

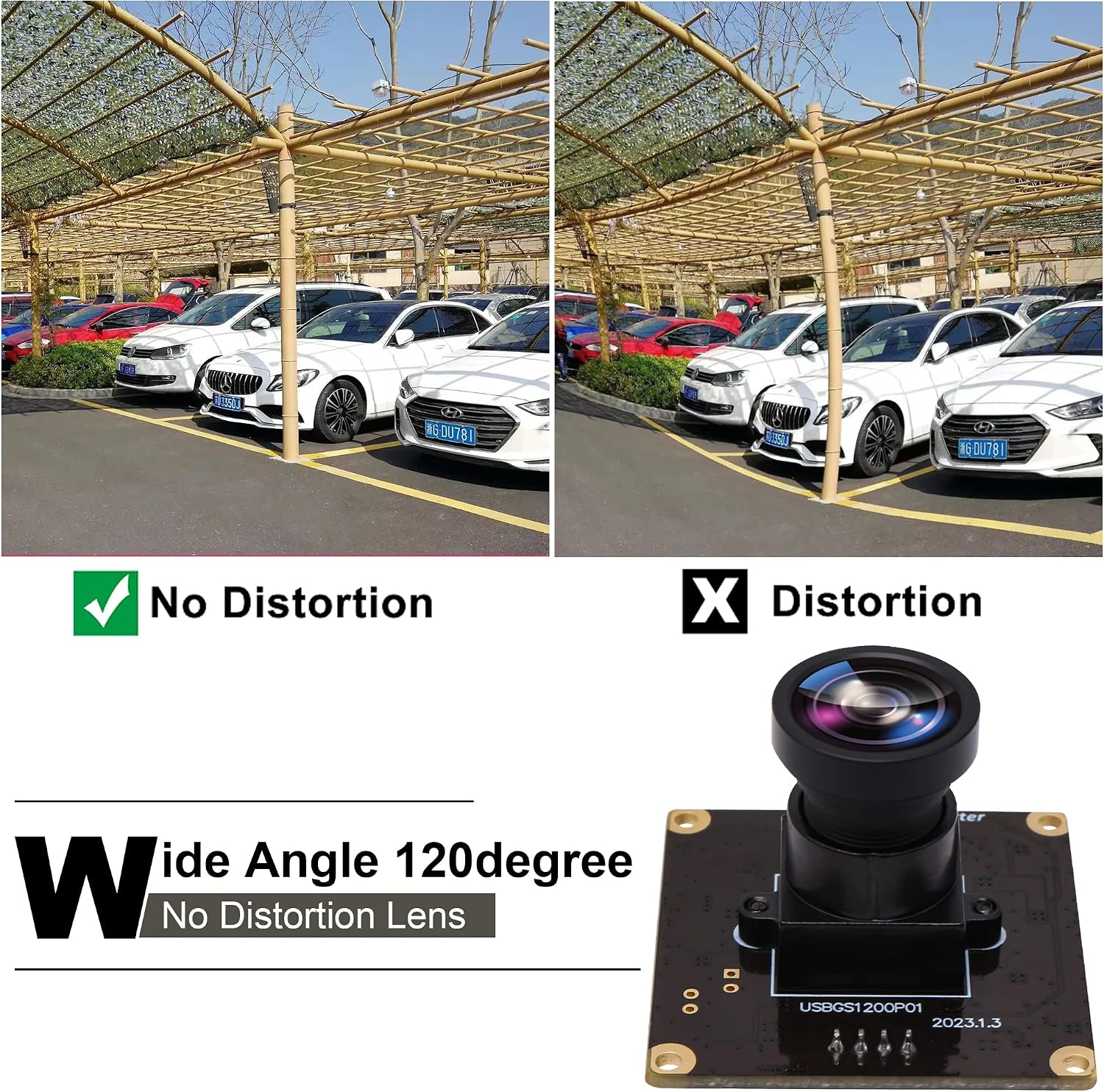

• Wide Angle 120degree No Distortion Lens, HFOV about 126degree, mini 38mmx38mm camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial.

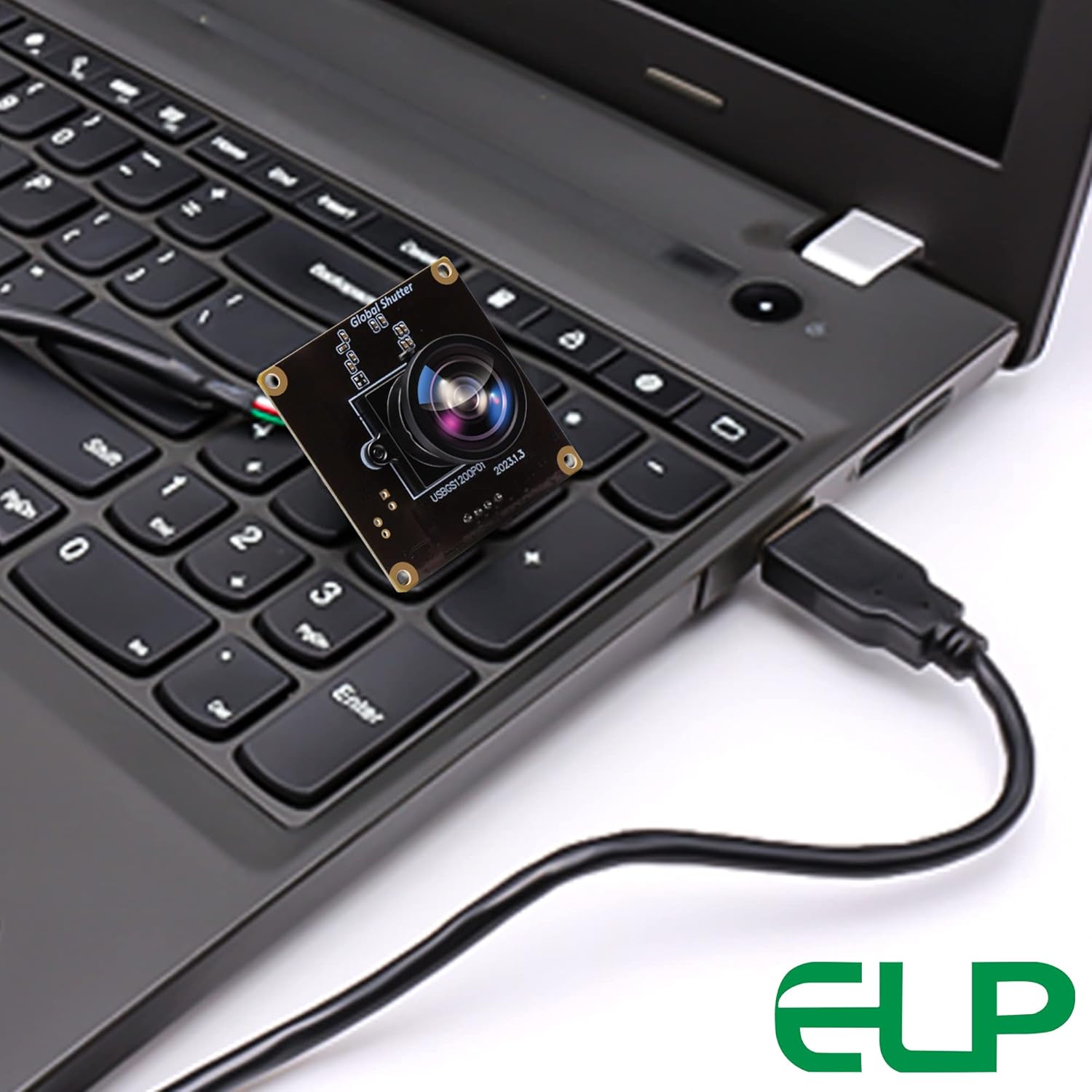

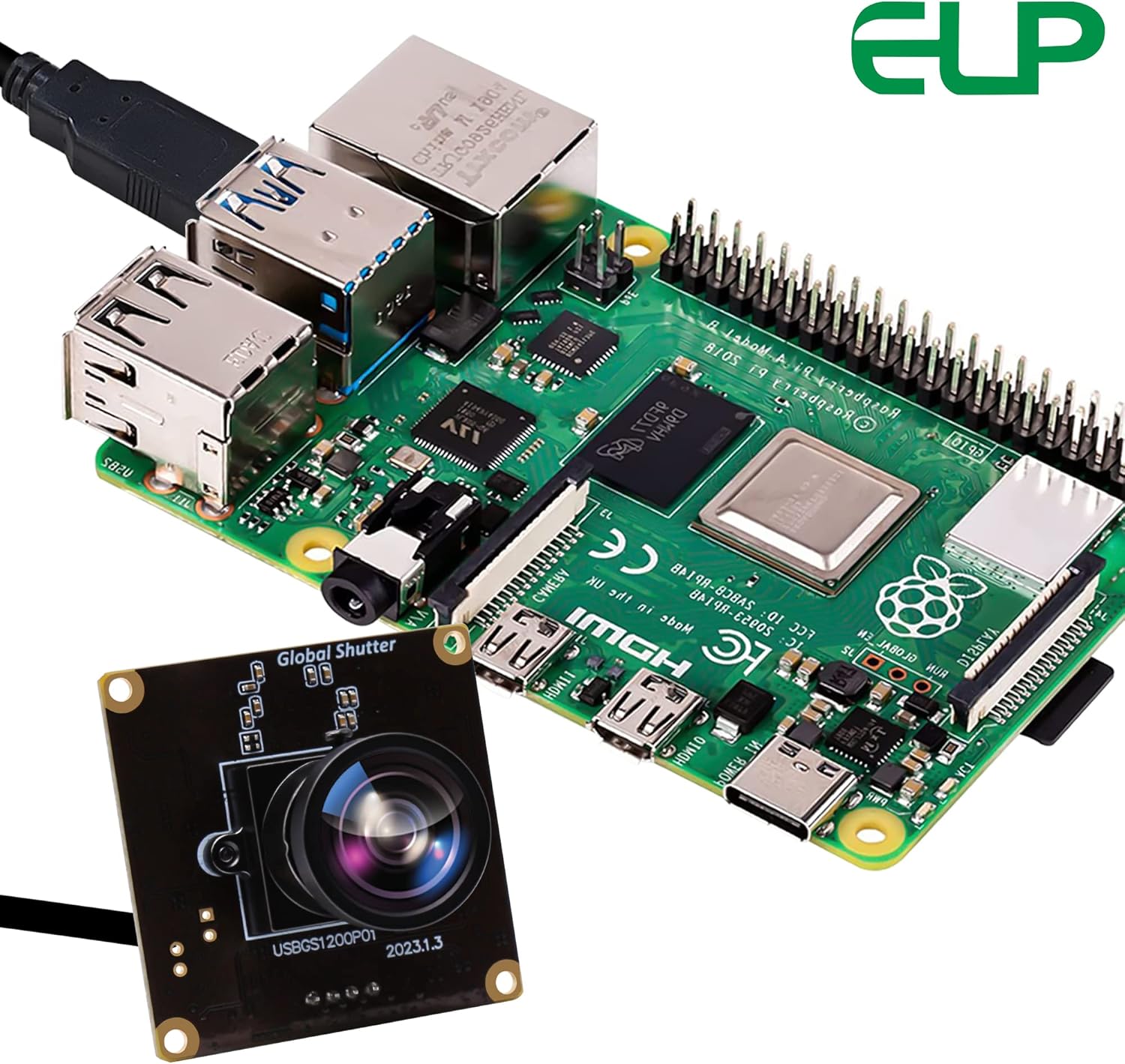

• Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
• Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.

Overview

• Photo Sensor Technology : CMOS
• Video Capture Resolution : 1080p
• Maximum Focal Length : 30 millimeters
• Maximum Aperture : 3 f_stop
• Flash Memory Type : Micro SD
• Video Capture Format : MJPEG/YUY2
• Screen Size : 14 inches
• Connectivity Technology : USB
• Color : 120degree No Distortion Lens
• Small outlets,can embedded in most machines.
• Widely application for Industrial equipment,medical auxiliary,ATM,Robt,Bank Security,etc.
• First choice by million business people.
• Plug and play,free driver,easy to use.
• This model is a new member of ELP's USB camera family. It's a 2MP, based on the 1/2.6" global shutter Aptina AR0234 image sensor, UVC compliant, high speed, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. The global shutter sensor's excellent low-light sensitivity makes it crisp, sharp, and accurate colorful images even for high-speed moving objects.
• Sensor: Aptina AR0234 (1/2.6”) Global Shutter
• Max Resolution: 1920 (H) *1200 (V)
• Lens Size: 1/2.6 inch (4:3) Pixel Size: 3.0μm
• Compression Format: MJPEG / YUV2 (YUYV)
• Resolution & Frame rate
• 1920x1200@90fps MJPEG/1920x1080@90fps MJPEG 1600x1200@90fps MJPEG/1280x960@90fps MJPEG
• 1280x720@90fps MJPEG/1024x768@90fps MJPEG 960x720@90fps MJPEG/800x600@90fps MJPEG 640x480@90fps MJPEG/320x240@90fps
• Sensitivity: 1.4V/lux-sec@550nm
