DC 10-30V LED Backlight Strip Light Kit CCFL LCD Screen to LED Monitor Module 490mm

About This

• [Energy-saving Design] The backlight bar is designed for screen, high brightness, environmental protection and energy saving.
• [Long Service Life] The product is made of high-quality materials through exquisite craftsmanship, strong and durable, with a long service life, with a service life of 100,000 hours.
• [High Brightness] LED particles are compact, high-density arrangement, imported high-brightness LED light bar. The light bar has higher brightness and low energy consumption.
• [Relieve Eye Fatigue] TV backlight, add subtle backlight to your monitor, TV, desktop, computer, reduce eye fatigue caused by different movie, show and game scenes.
• [Easy to Install] Easy to install, use double-sided adhesive can be attached to the display original LCD groove, or elsewhere.

Overview

• Color : White
• Brand : SEIWEI
• Indoor/Outdoor Usage : Indoor
• Special Feature : Energy Efficient
• Light Source Type : LED
• Power Source : Corded Electric
• Light Color : White
• Style : Compact
• Material : Glass, Metal, Polycarbonate, Vinyl

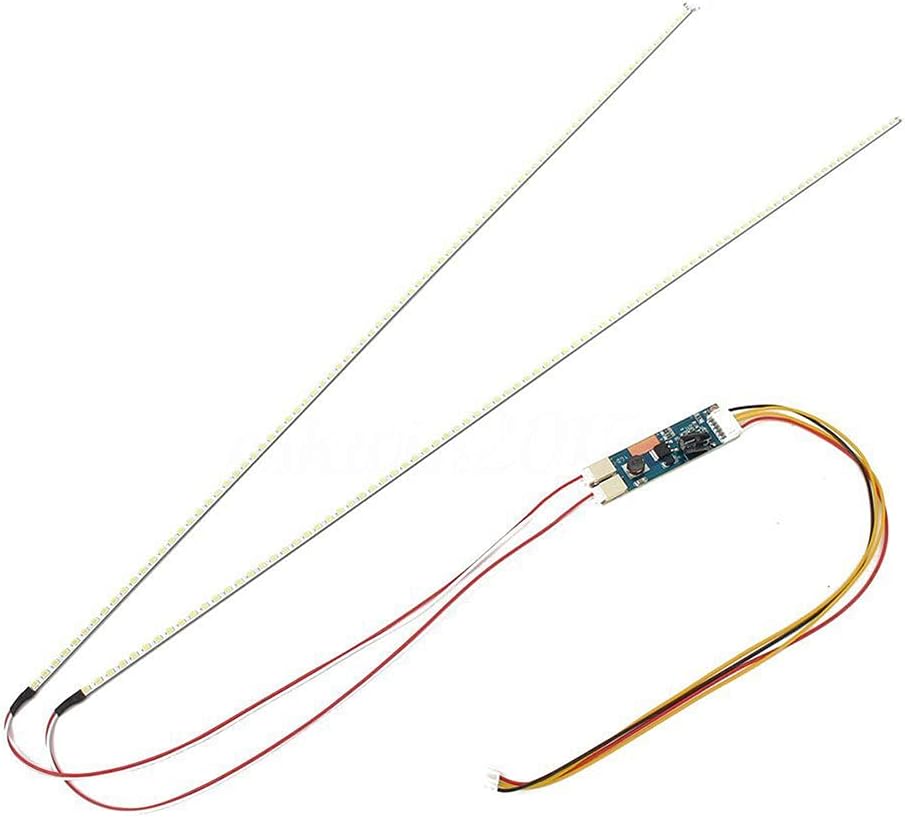

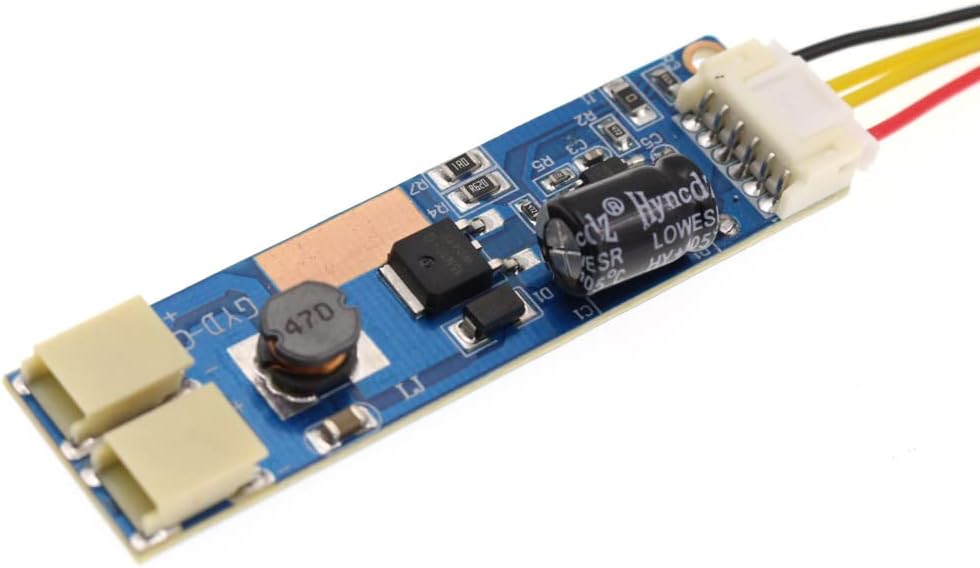

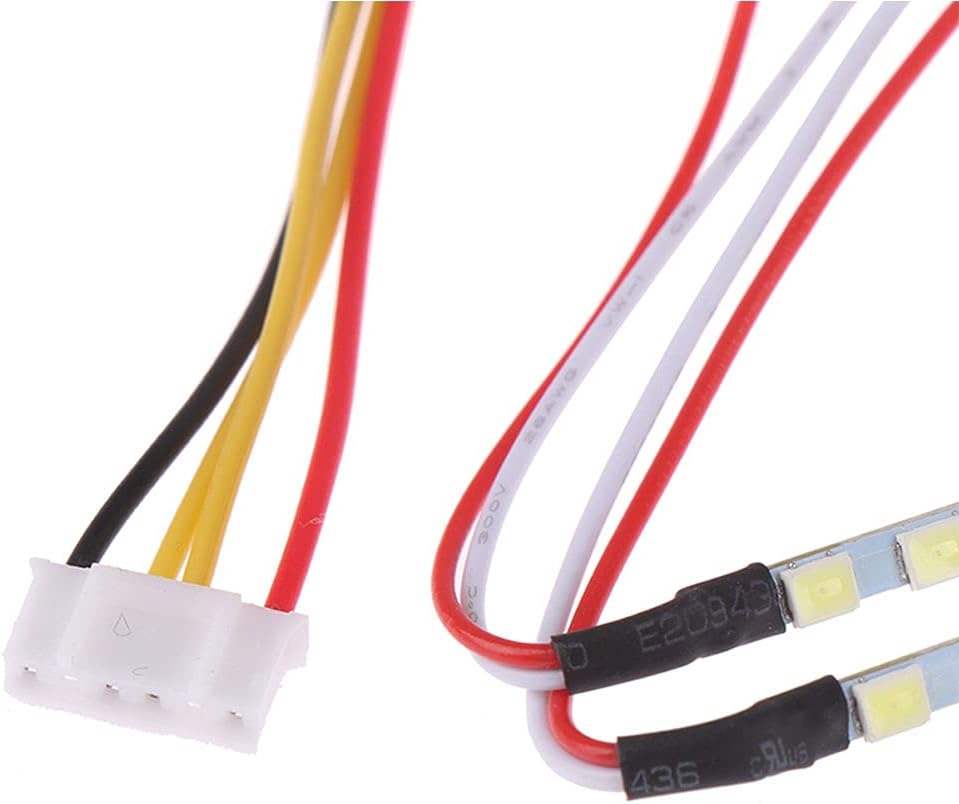

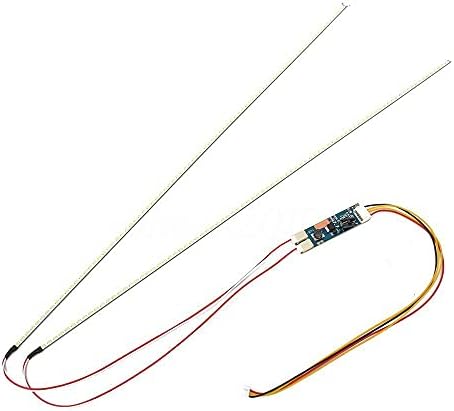

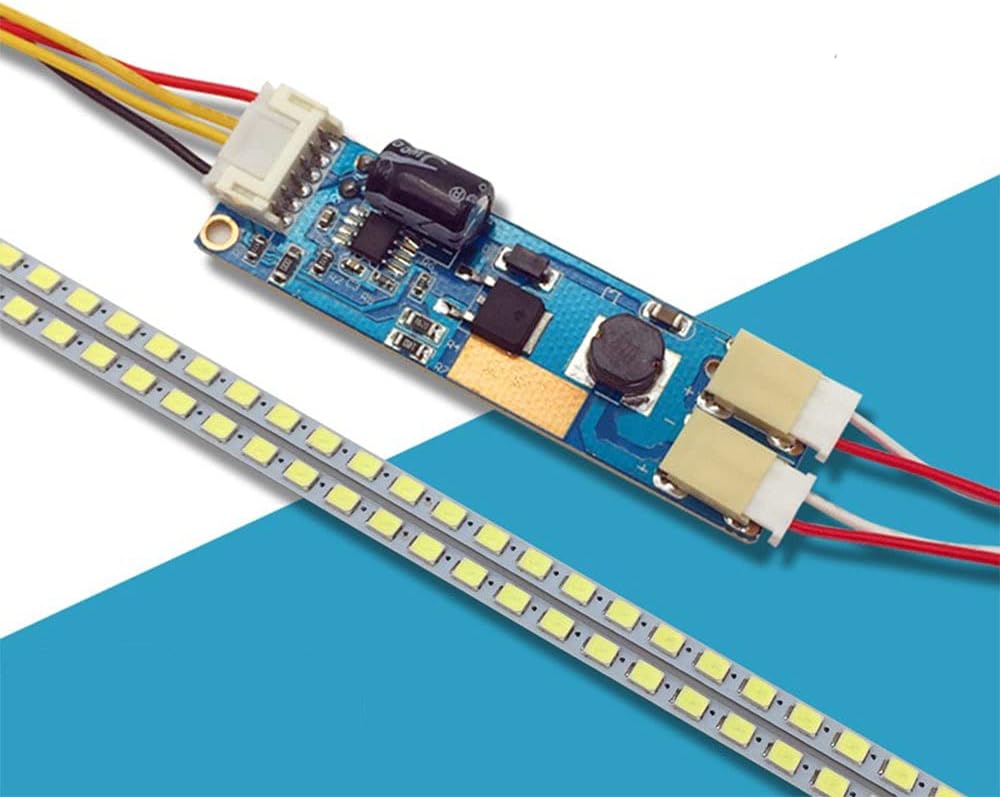

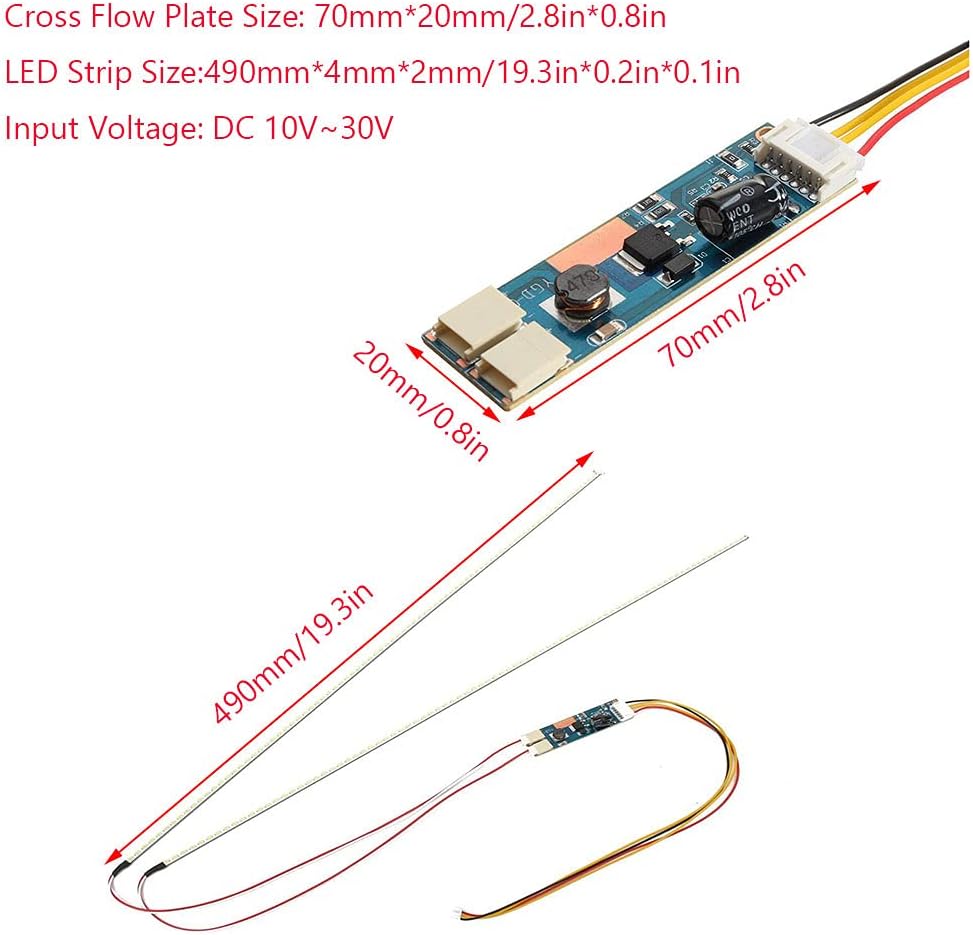

• Specification Material:Fiberglass panels Cross Flow Plate Size: 70mm*20mm/2.8in*0.8in LED Strip Size: 490mm*4mm*2mm/19.3in*0.2in*0.1in (84 Lamp beads/Bar) Input Voltage: DC 10V~30V Installation: If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ; If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance), and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect with the ON / OFF. In simple terms, The original high voltage power supply is disconnected,instead of the inverter,In the original high-pressure front to take power. Pin description: VIN: Voltage ENA: ON/OFF DIM: ADJ adjust brightness GND: Connecting Ground Package Include 2PCS* LED strip 1PC* Driver board 1PC* Cable
