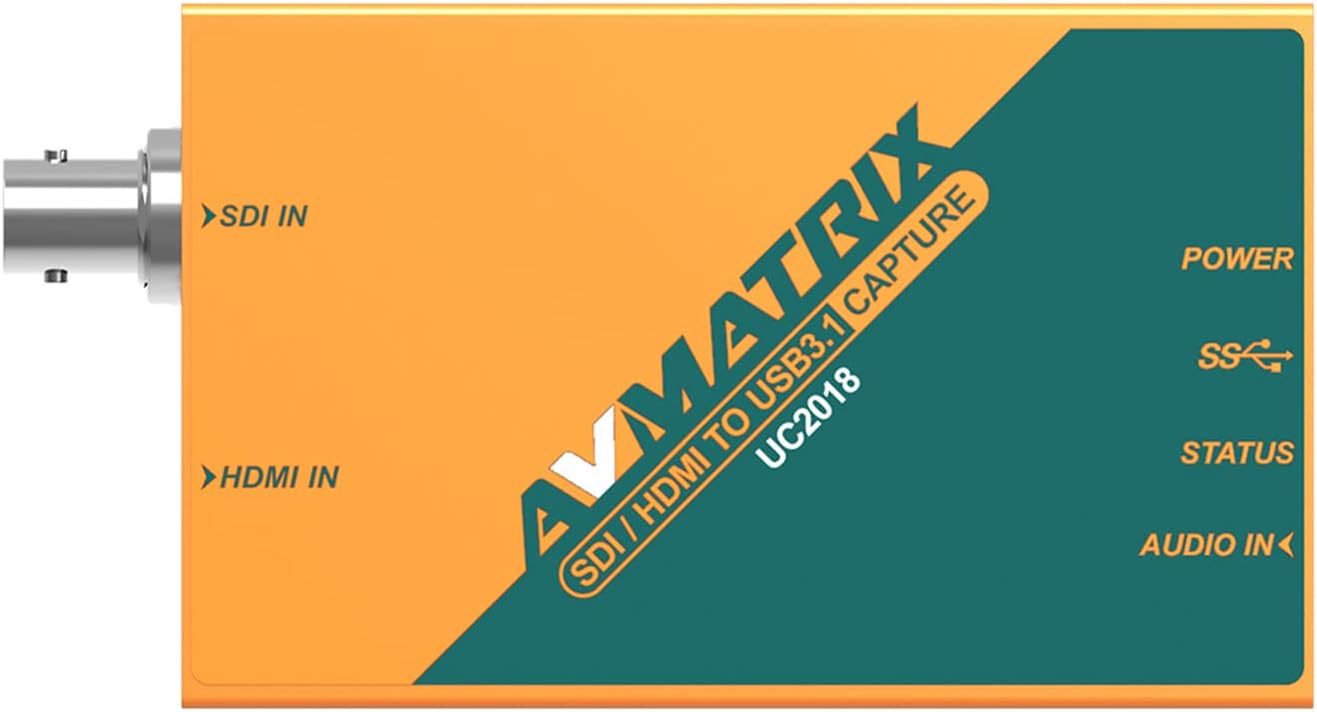

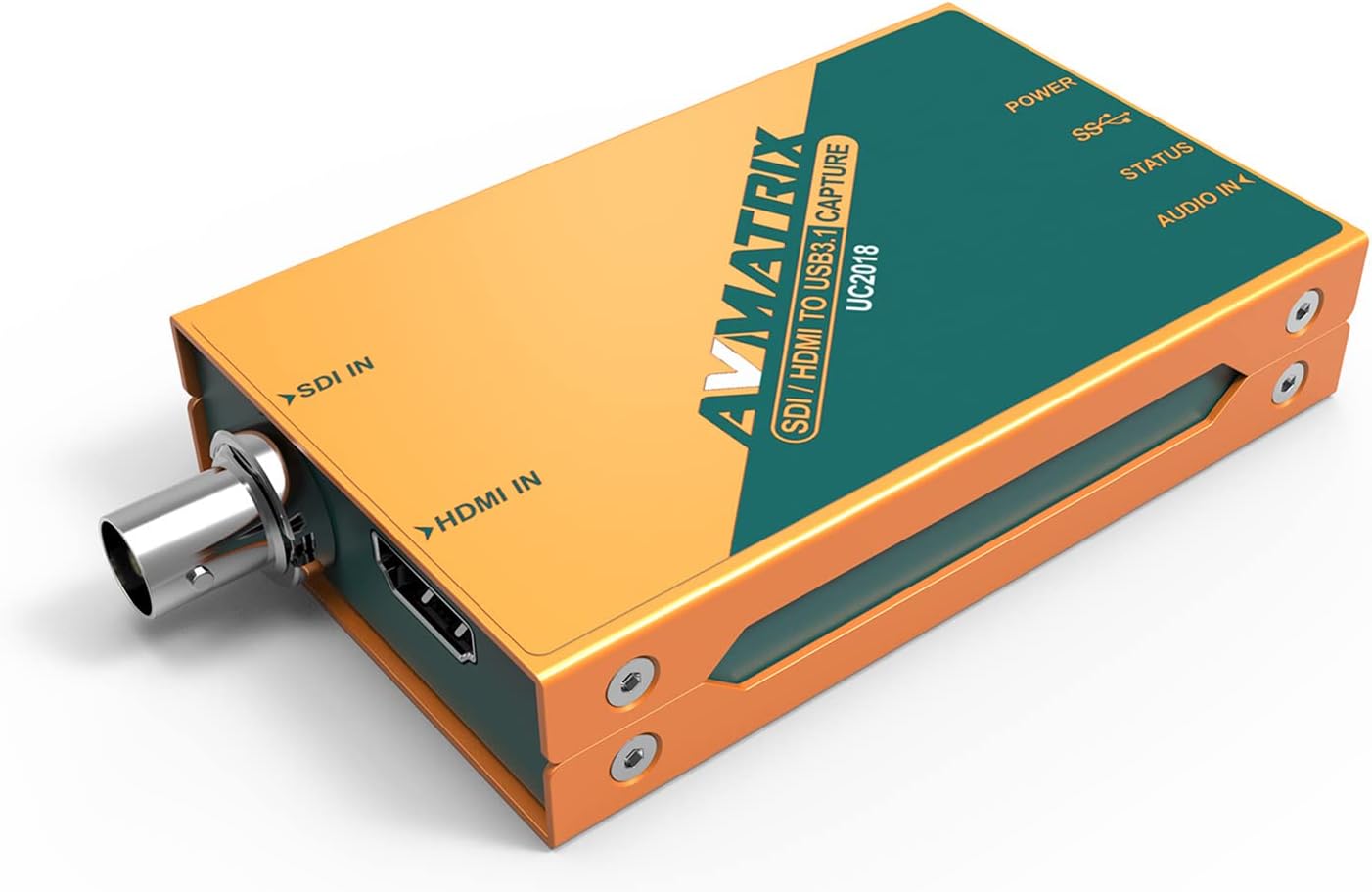

UC2018 HDMI/SDI Video Capture Card with USB 3.0 Type-C 1080P 60FPS Uncompressed Transmission Speed Automatic Input Signal Detection for Live Streaming

About This

• SDI/HDMI In and Audio InUncompressed video & audio capture, comply with UVC and UAC, automatic input signal detection, up to 1080p 60hz. Audio codec is 2-channel 169bitpcm 478kHz 1536kbps.
• Plug and Play & Power FreeNo need to install driver, and it compatible with operating systems such as Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above).
• High quality video recording1080P 60fps video capture and streaming. Super High-Speed transmission, no delay, no freeze, without frame lag. It will bring you nice digital experience.

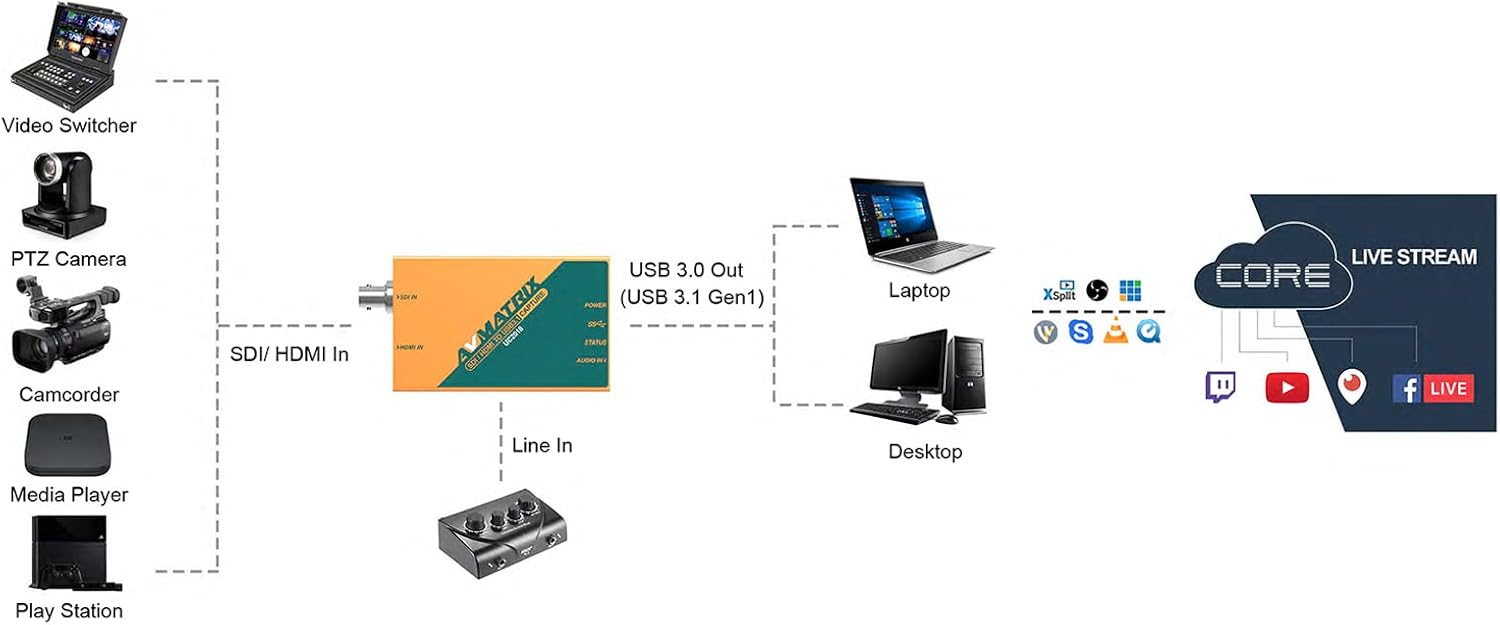

• Widely ApplicationSupport live video streaming, webcasting, video conferencing, church livestream, personal live broadcast and so on.
• Package IncludeUC2018 HDMI/SDI Video Capture Cardx1, USB-A to USB-C 3.0 Cablex1

Overview

• Brand : AVMATRIX
• Hardware Interface : USB 3.0
• Video Capture Resolution : 1080p, 576p, 720p
• Operating System : Linux, Windows 7
• Recommended Uses For Product : Video Recording
• Plug-and-Play, driver free & power free HDMI or SDI in, and USB 3.1 Gen1(USB3.0) out Automatic input signal detection, up to 1080p60 Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1 Comply with UVC video capture and YUY2 video output Comply with UAC audio out from SDI/HDMI embedded audio or line in Compatible with Windows, Linux, macOS Compatible with OBS, ZOOM, Teams & Twitch, etc.
• Plug-and-Play, driver free & power free
• HDMI or SDI in, and USB 3.1 Gen1(USB3.0) out
• Automatic input signal detection, up to 1080p60
• Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
• Comply with UVC video capture and YUY2 video output
• Comply with UAC audio out from SDI/HDMI embedded audio or line in
• Compatible with Windows, Linux, macOS

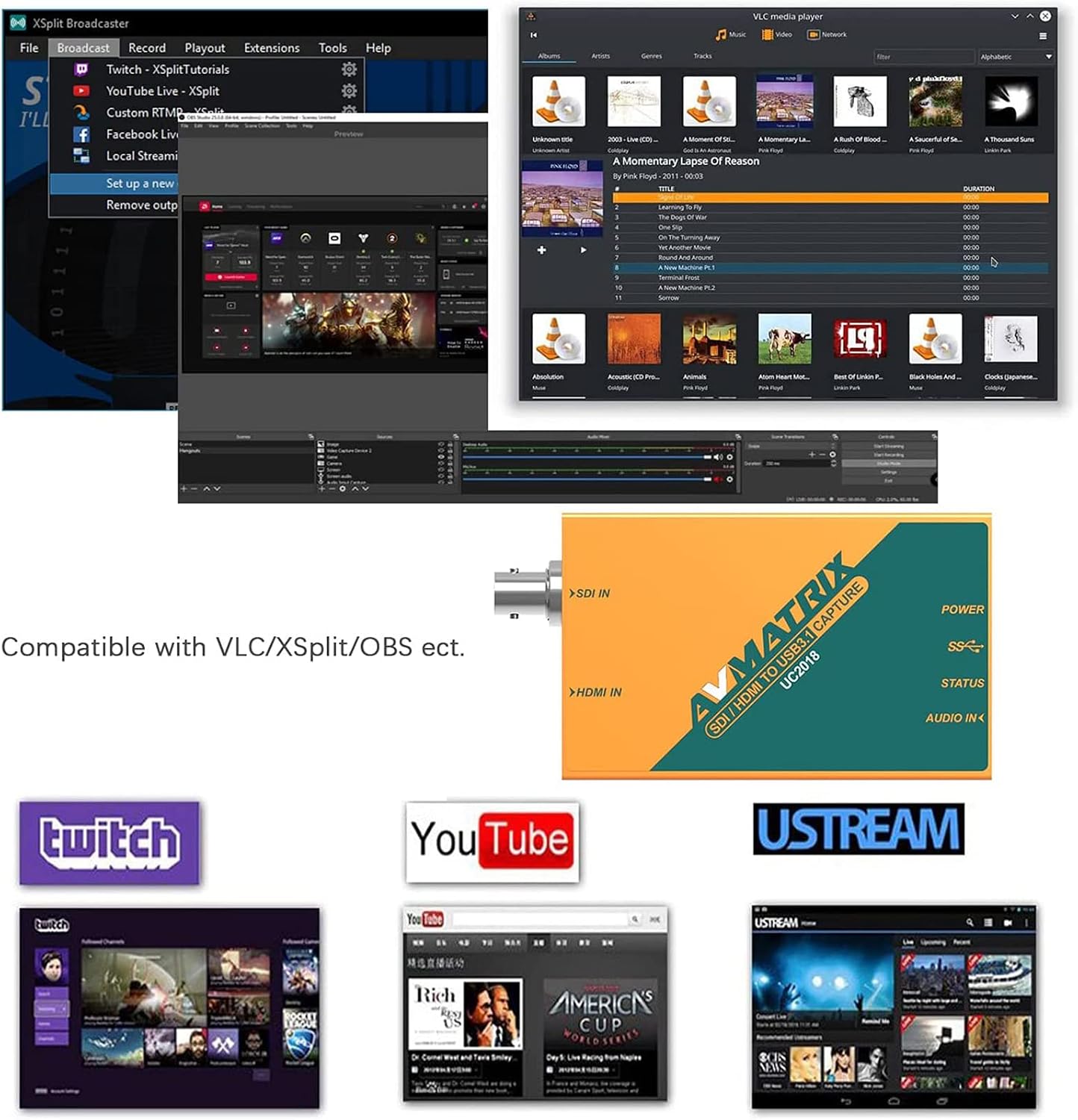

• Compatible with OBS, ZOOM, Teams & Twitch, etc.

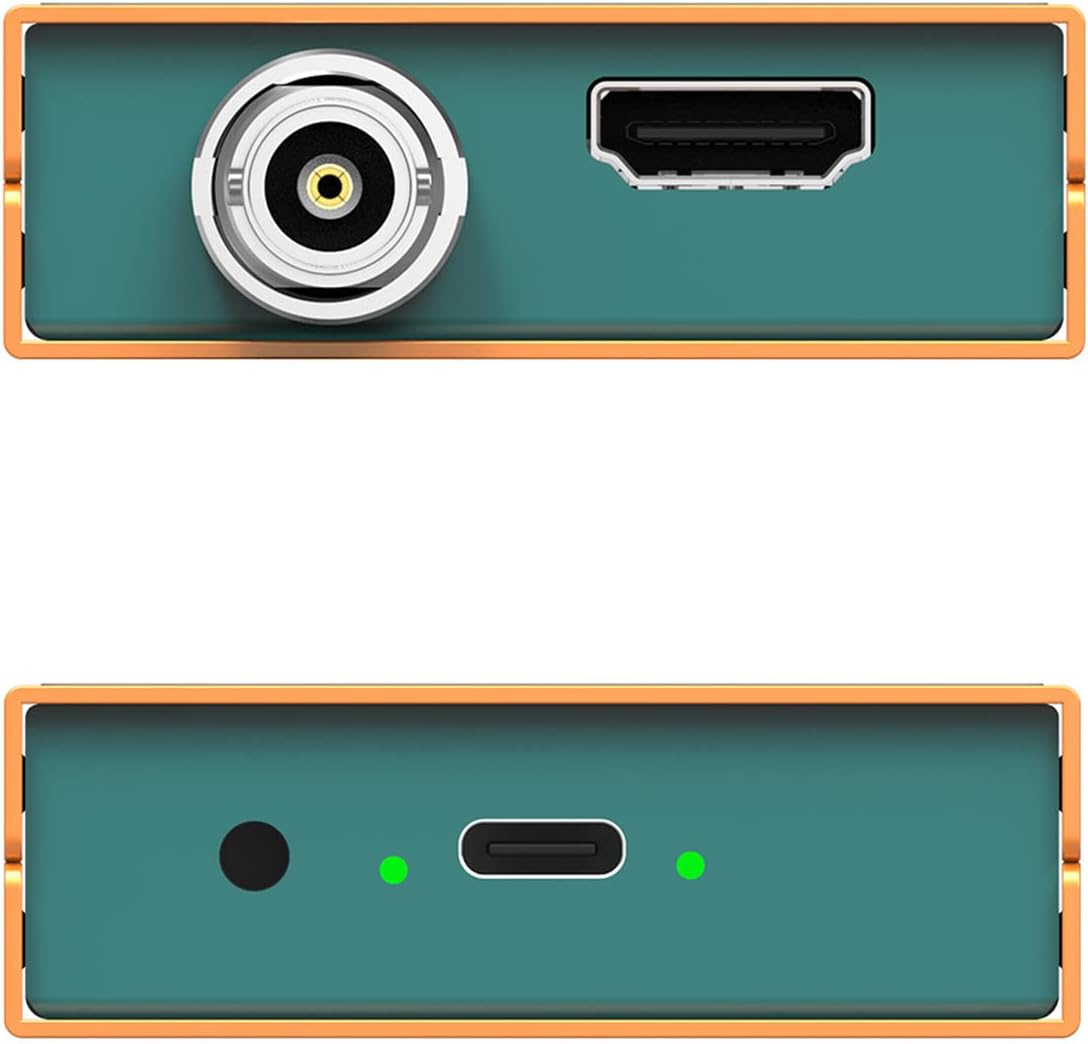

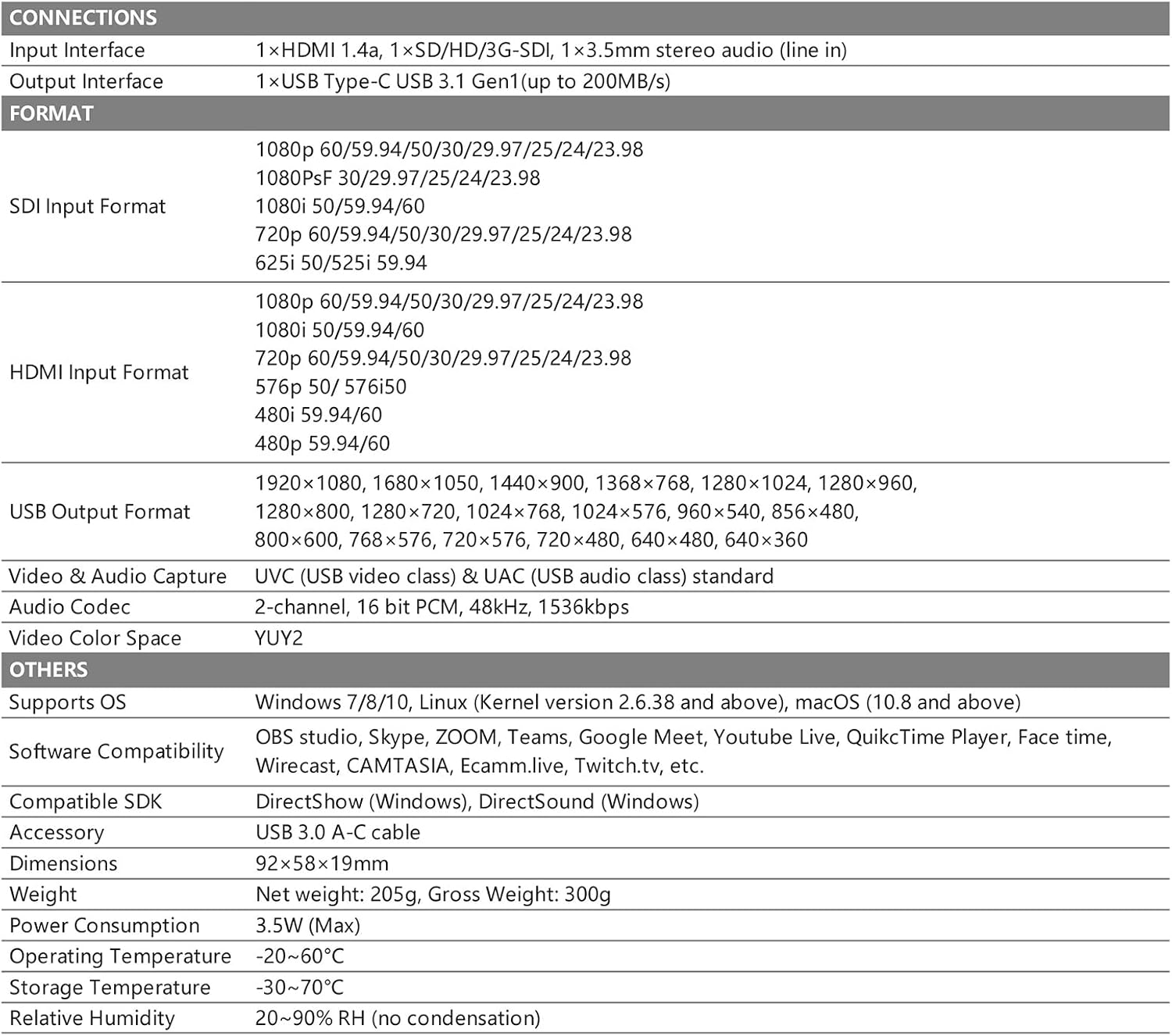

• Input Interface
• HDMI 1.4a x1, SD/HD/3G-SDI x1, 3.5mm stereo audio (line in) x1
• Output Interface
• USB Type-C USB 3.2 Gen1(up to 200MB/s)
• SDI Input Format
• 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080PsF 30/29.97/25/24/23.98, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98
• HDMI Input Format
• 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 567i 50, 480i 59.94/60, 480p 59.94/60
• USB Output Format
• 1920x1080, 1680x1050, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x700, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480,640x360
