ARCTIC TP-3: Premium Performance Thermal Pad, 200 x 100 x 0.5 mm (2 Pack)

About This

• PLEASE NOTE: Due to the extremely low hardness of thermally conductive pads, a more demanding installation is to be expected. Please refer to the User Manual
• MINIMIZATION OF THERMAL RESISTANCE: The thinner the pad, the lower the thermal resistance. Thanks to its good compression properties, the very soft heat conduction pad is particularly a good heat conductor
• HIGH PERFORMANCE: Based on silicone and a special filler, TP-3 also outperforms high-performance pads, especially when height differences of closely spaced chips
• VERSATILE APPLICATIONS: Heat-conducting, vibration-damping, mouldable, electrically insulating - can be easily cut to size. Ideal for RAM, chipset, IC in PC, laptop, console, graphic cards
• SAFE HANDLING: The pad contains no metal particles, is electrically insulating and non-capacitive. Handling is therefore safe, as contact with electrical parts will not cause damage

Overview

• Based on silicone and a special filler, TP-3 also outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.

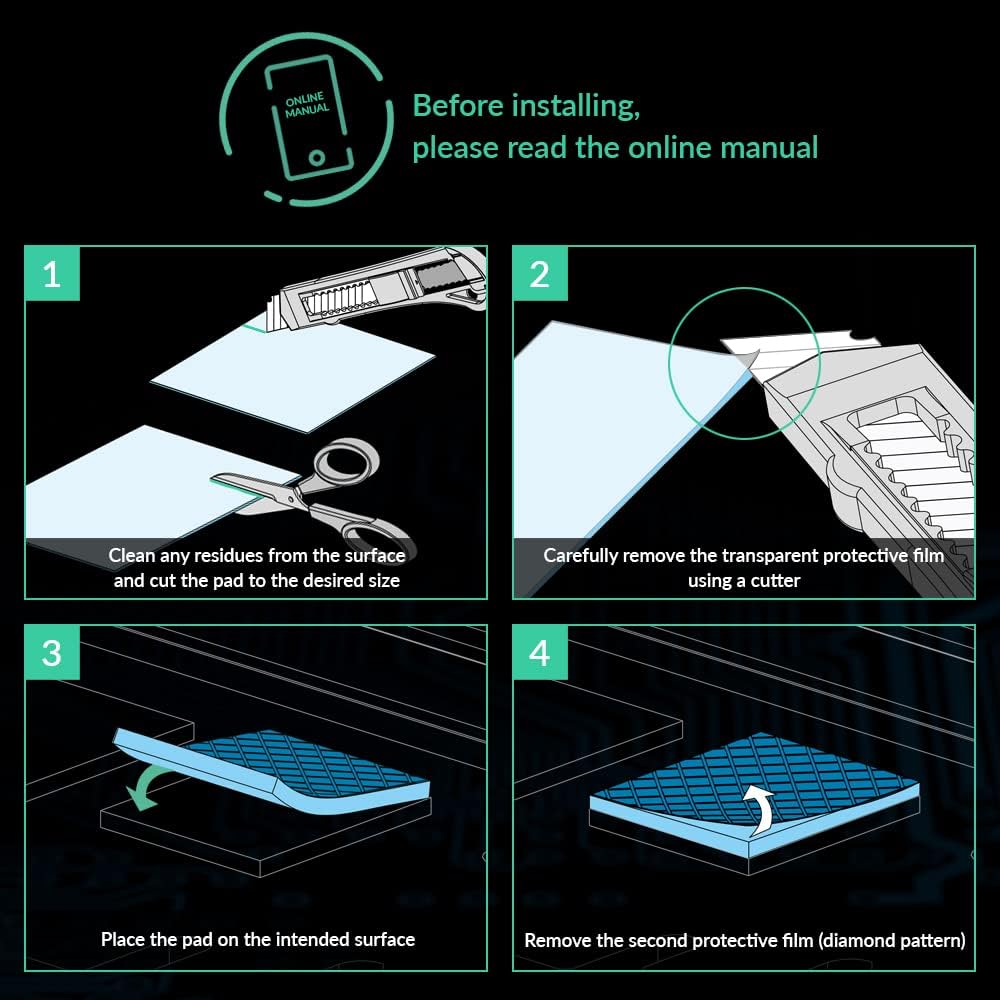

• The thinner the pad, the lower the termal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.

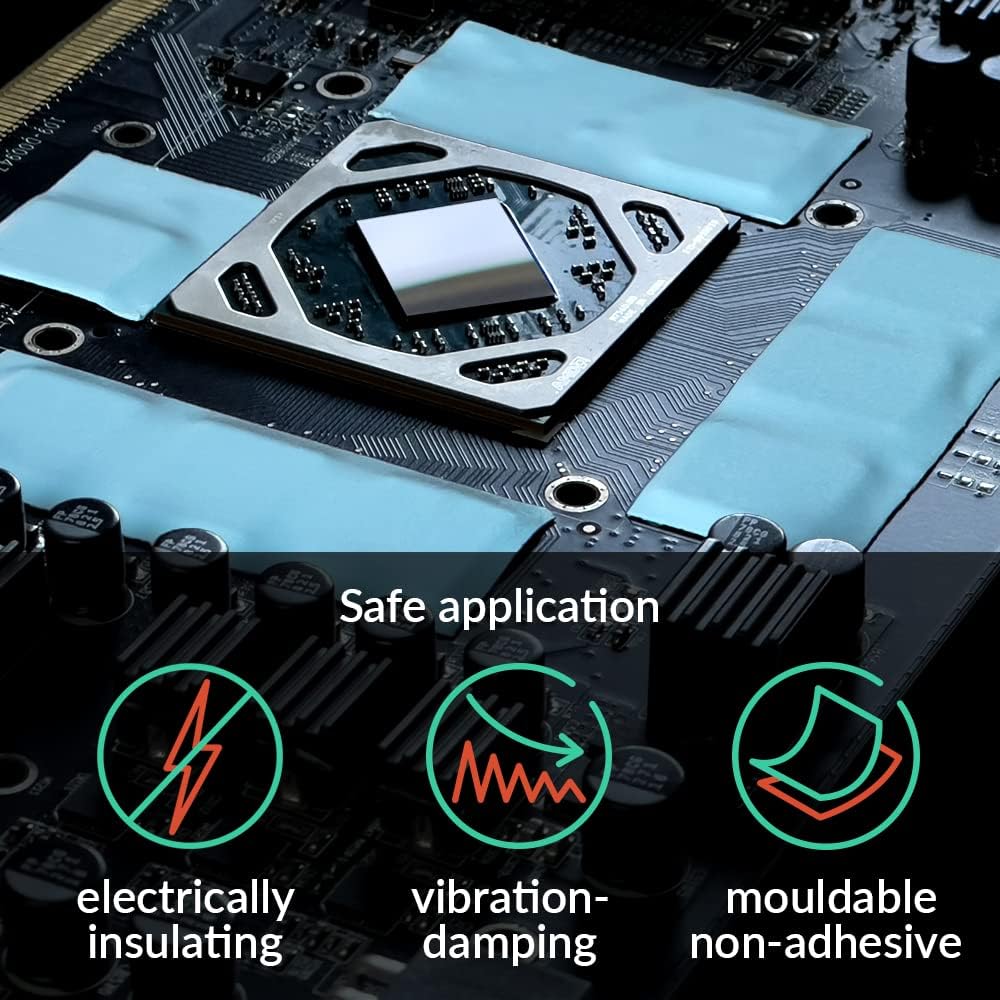

• Heat-conducting, vibration-damping, mouldable, electrically insulating - safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards and electronic devices in general.

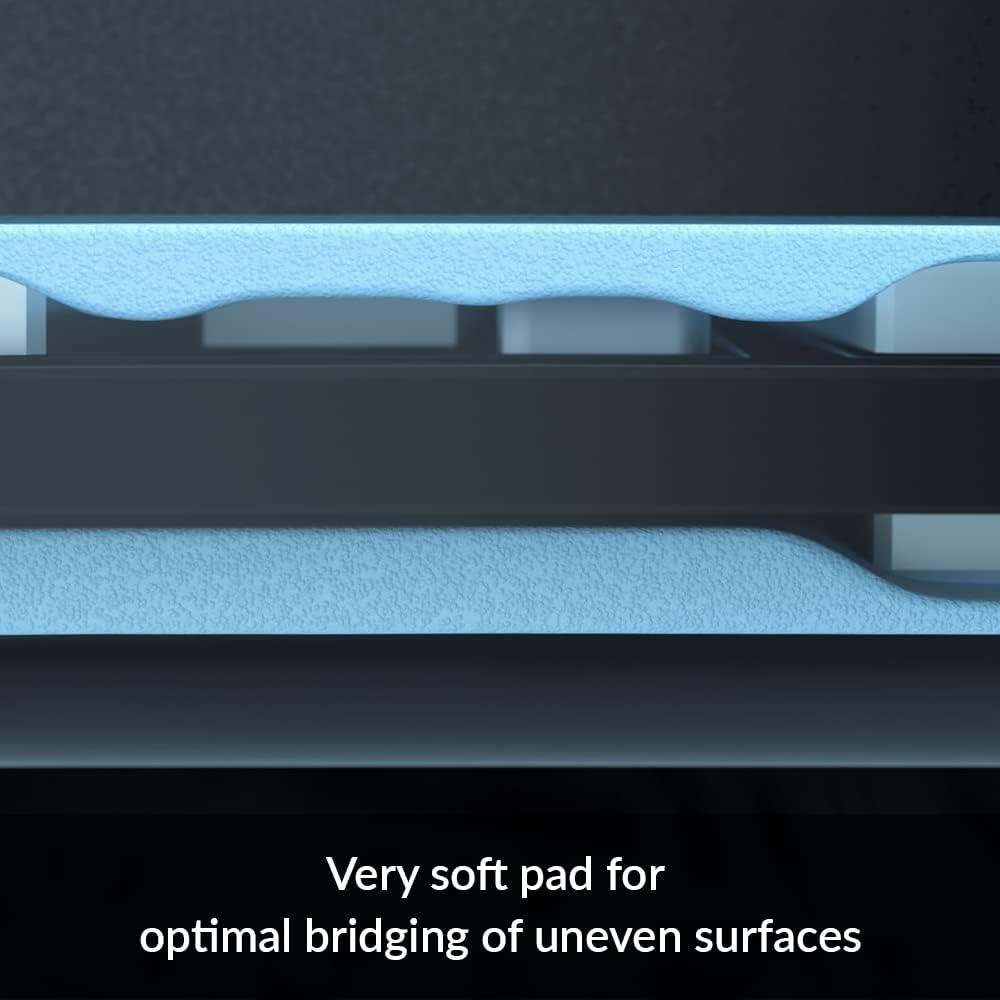

• The TP-3 are softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridges uneven surface and air gaps without stressing sensitive and protruding components.

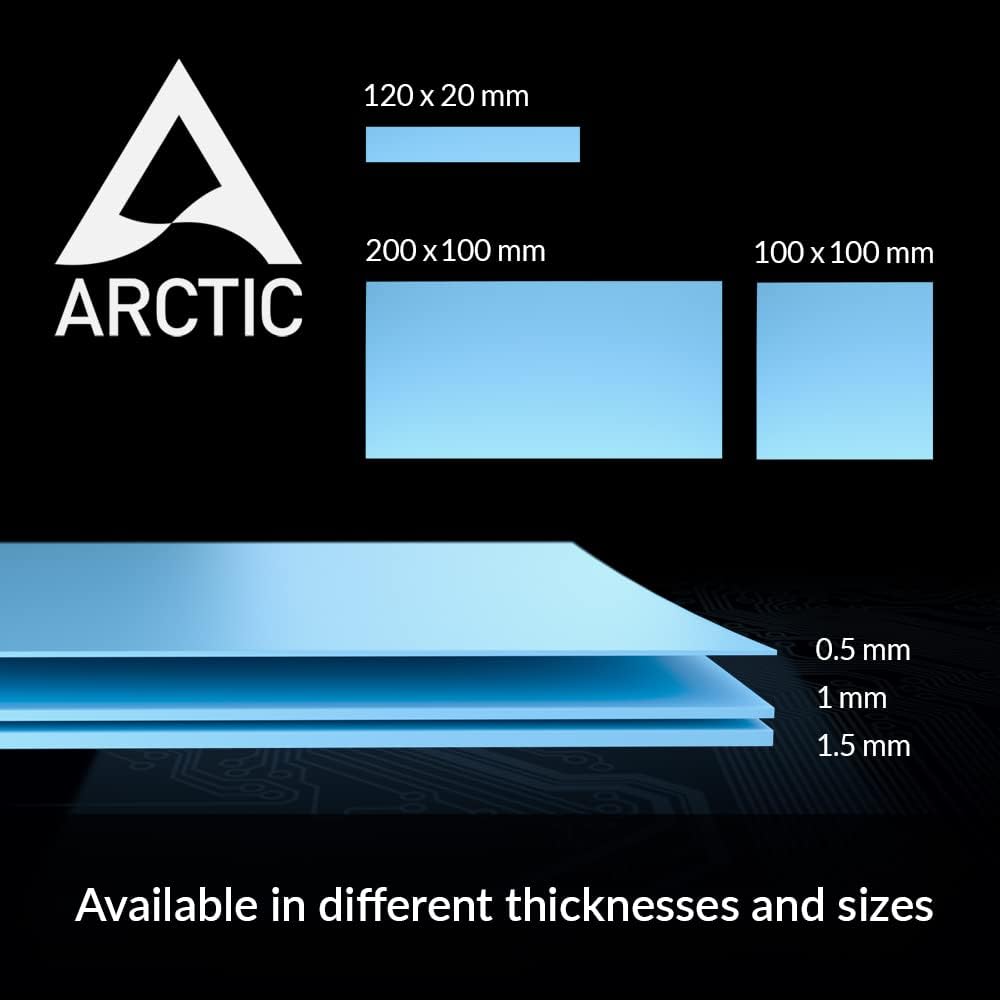

• Our thermal pads are available in a choice of 0.5 mm, 1.0 mm and 1.5 mm. The 0.5 mm variant is ideally suited as an alternative to heat-conducting foil. The pads are available in different dimensions, depending on their thickness. If required, the pads can also be independently cut to any size.

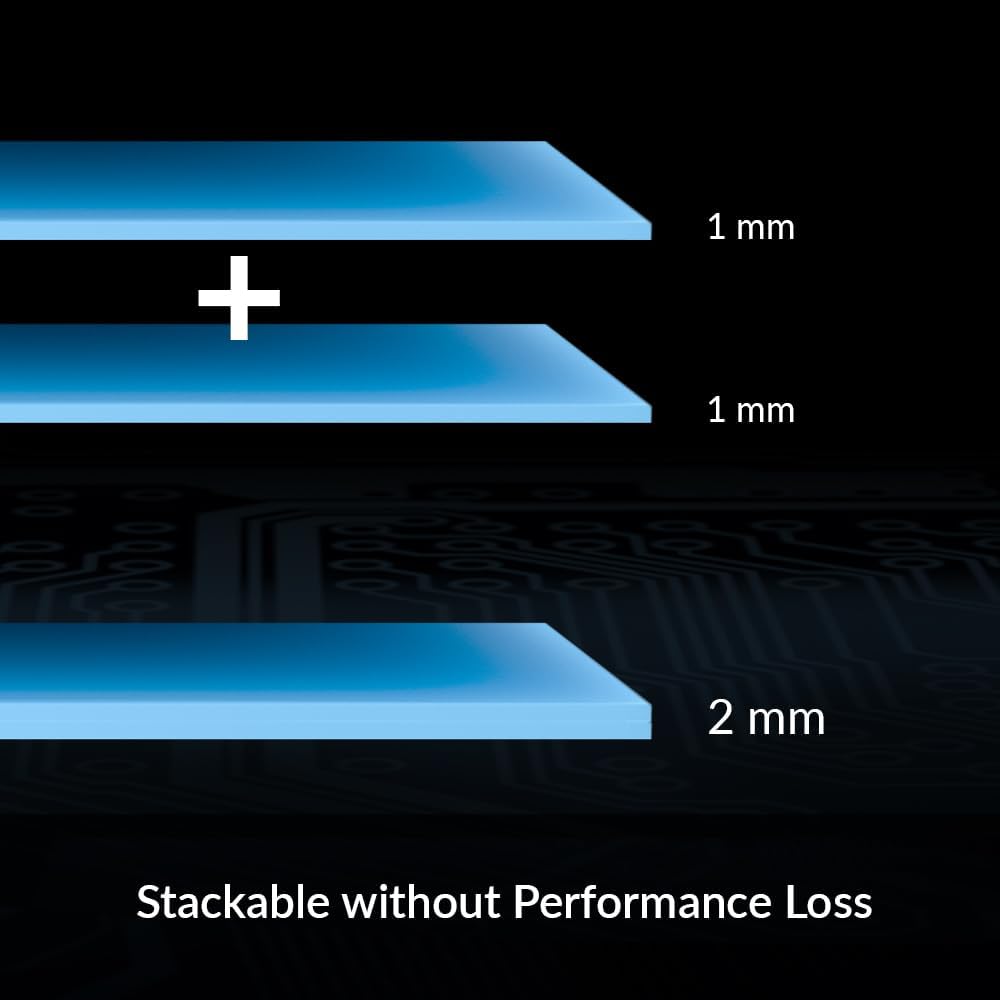

• The ARCTIC TP-3 thermal pads can be stacked particularly well due to their softness and low Interfacial Contact Resistance. This allows for flexible adaptation to various application requirements and the bridging of different thicknesses without compromising the efficiency of heat transfer. In contrast, harder pads often lose performance when stacked.
