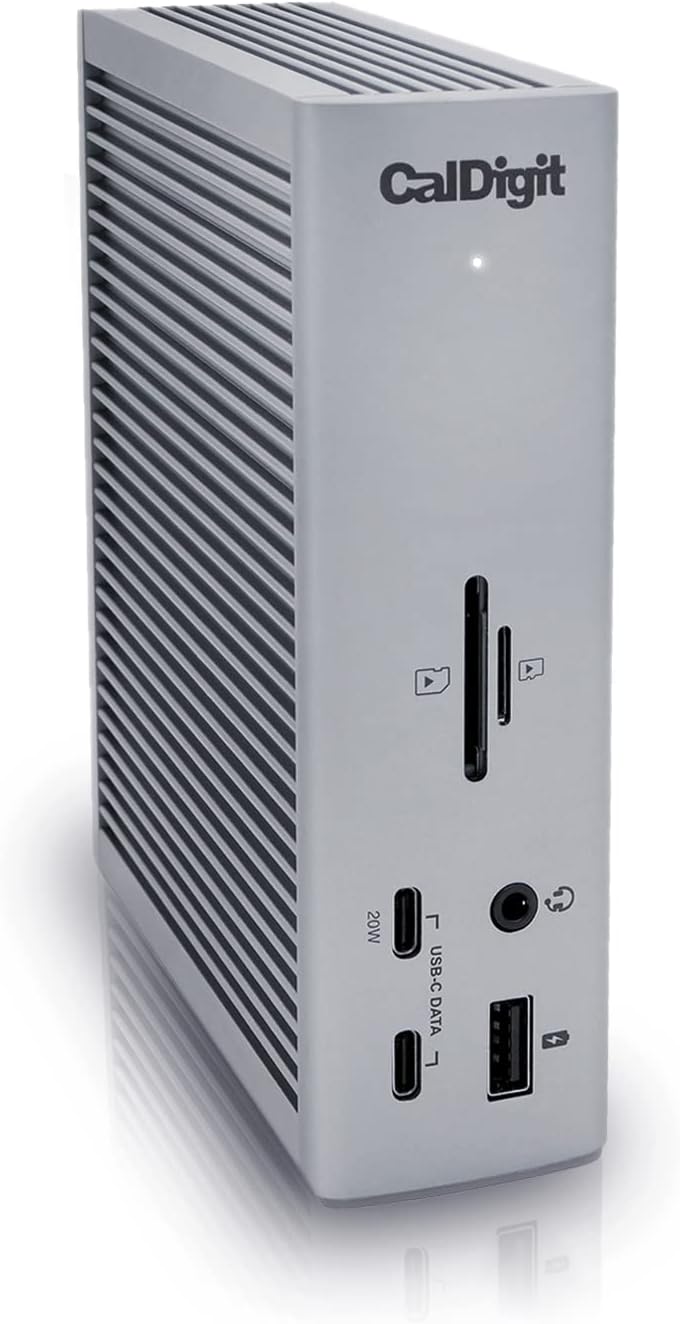

CalDigit TS4 18 Port Thunderbolt 4 Dock, 98W Charging, 3X TBT4 (40Gb/s), 3X USB-C + 5X USB-A (10Gb/s), 2.5GbE LAN, 8K@30Hz or 2X 6K@60Hz Displays, Mac/Windows/Chrome, Space Gray, 0.8m Certified Cable

About This

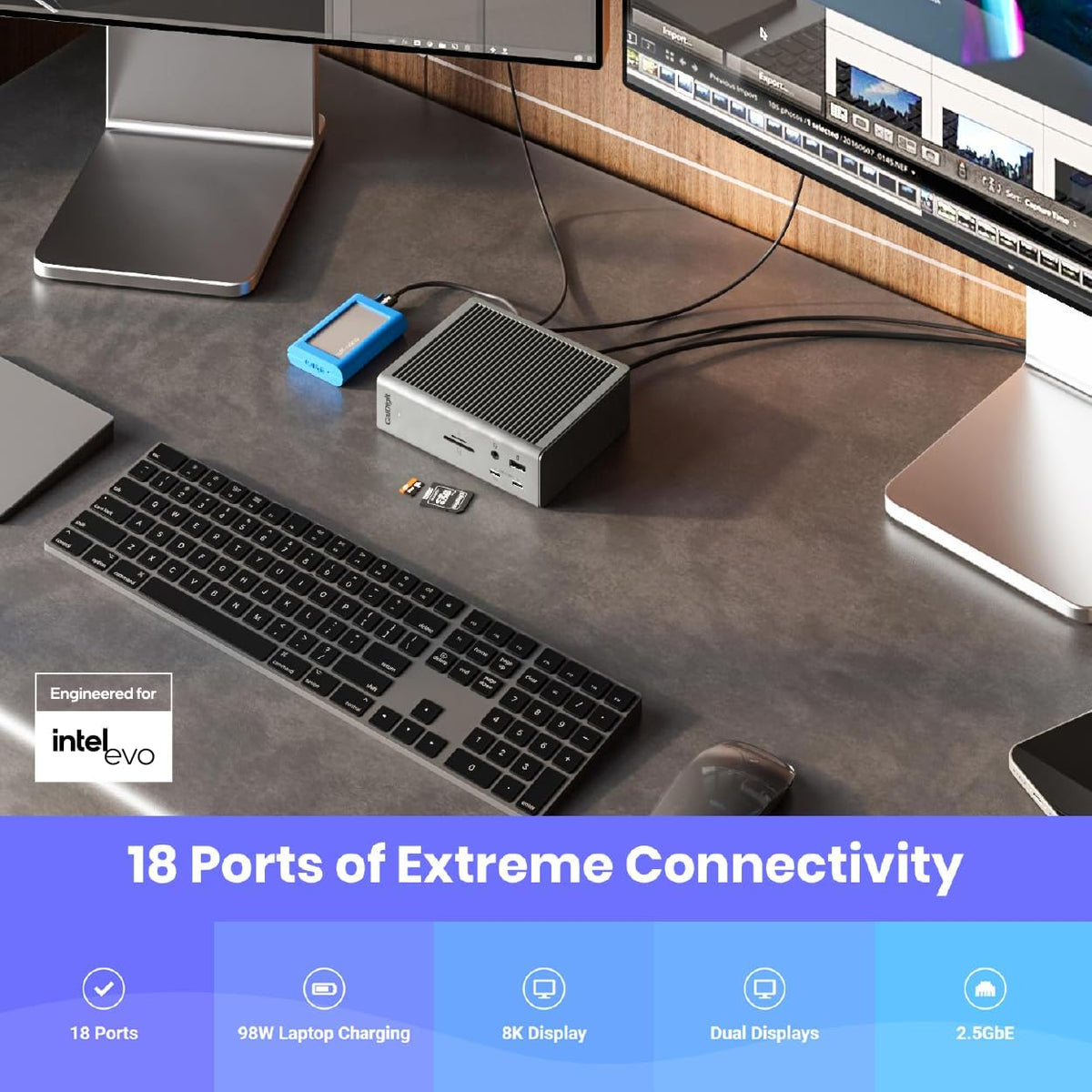

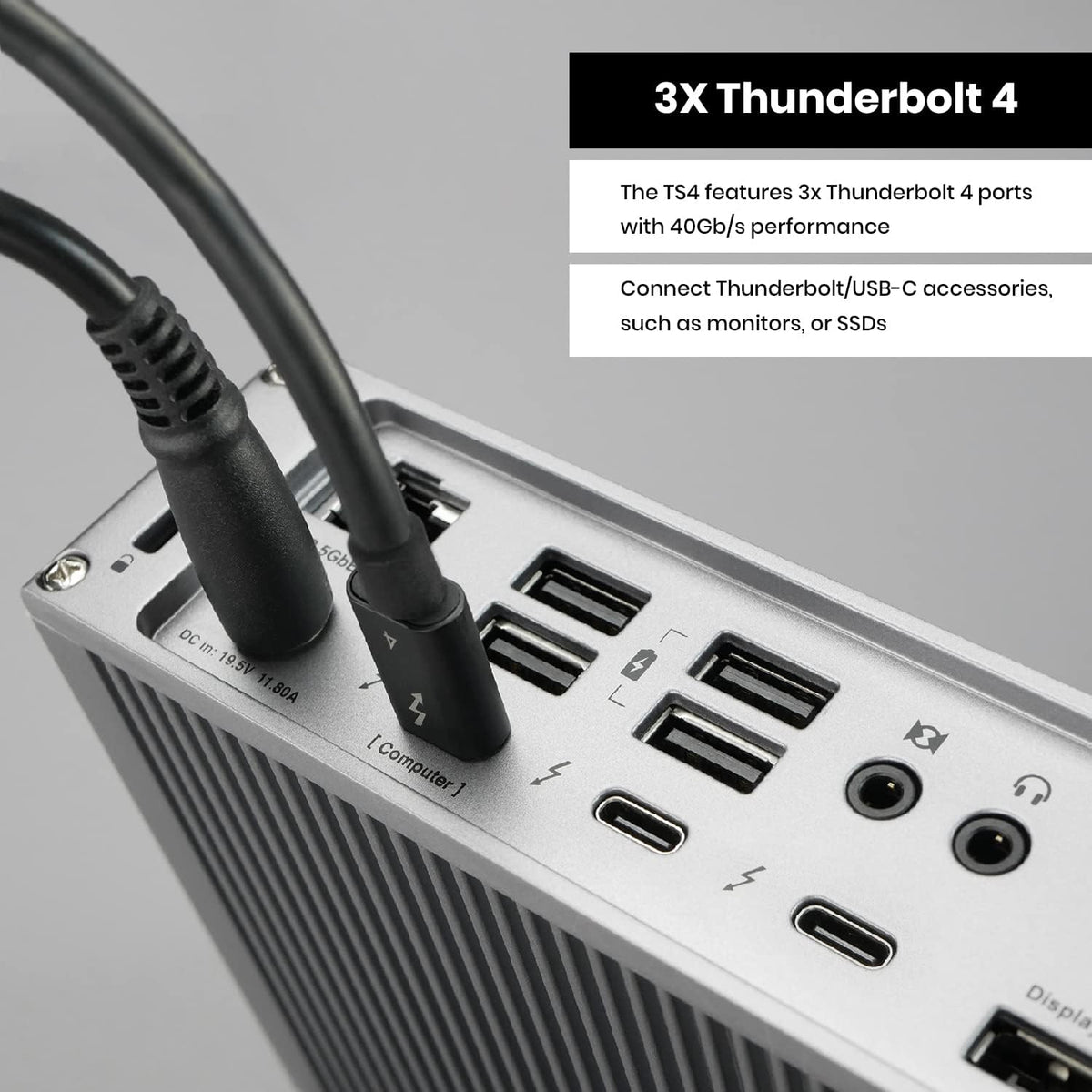

• 18 Ports of Extreme Connectivity - Featuring an impressive 18 ports, the TS4 has enough connectivity for even the most demanding of workflows. This includes a built-in DisplayPort 1.4 connector, a total of 8x USB ports with full 10Gb/s performance, SD & microSD 4.0 UHS-II Card Readers, 3x Thunderbolt 4 (40Gb/s) ports, 3x Audio ports, 2.5GbE, and a security slot.

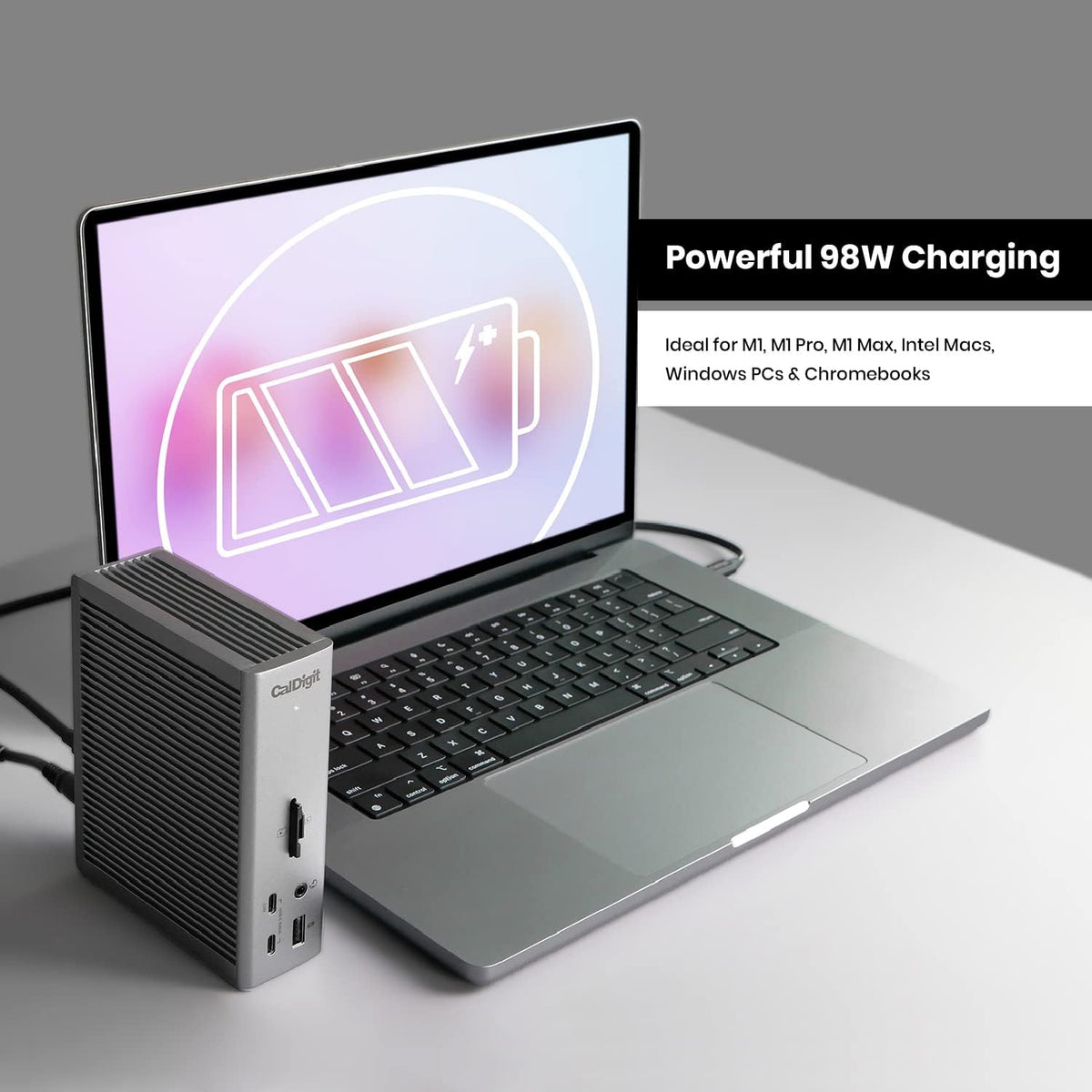

• Powerful 98W Charging - The TS4’s power delivery is ideal for any Thunderbolt or USB-C (with data, video, and power support) host device, including larger screen laptops that require more power. A single cable will charge your laptop and connect 18 devices at the same time.

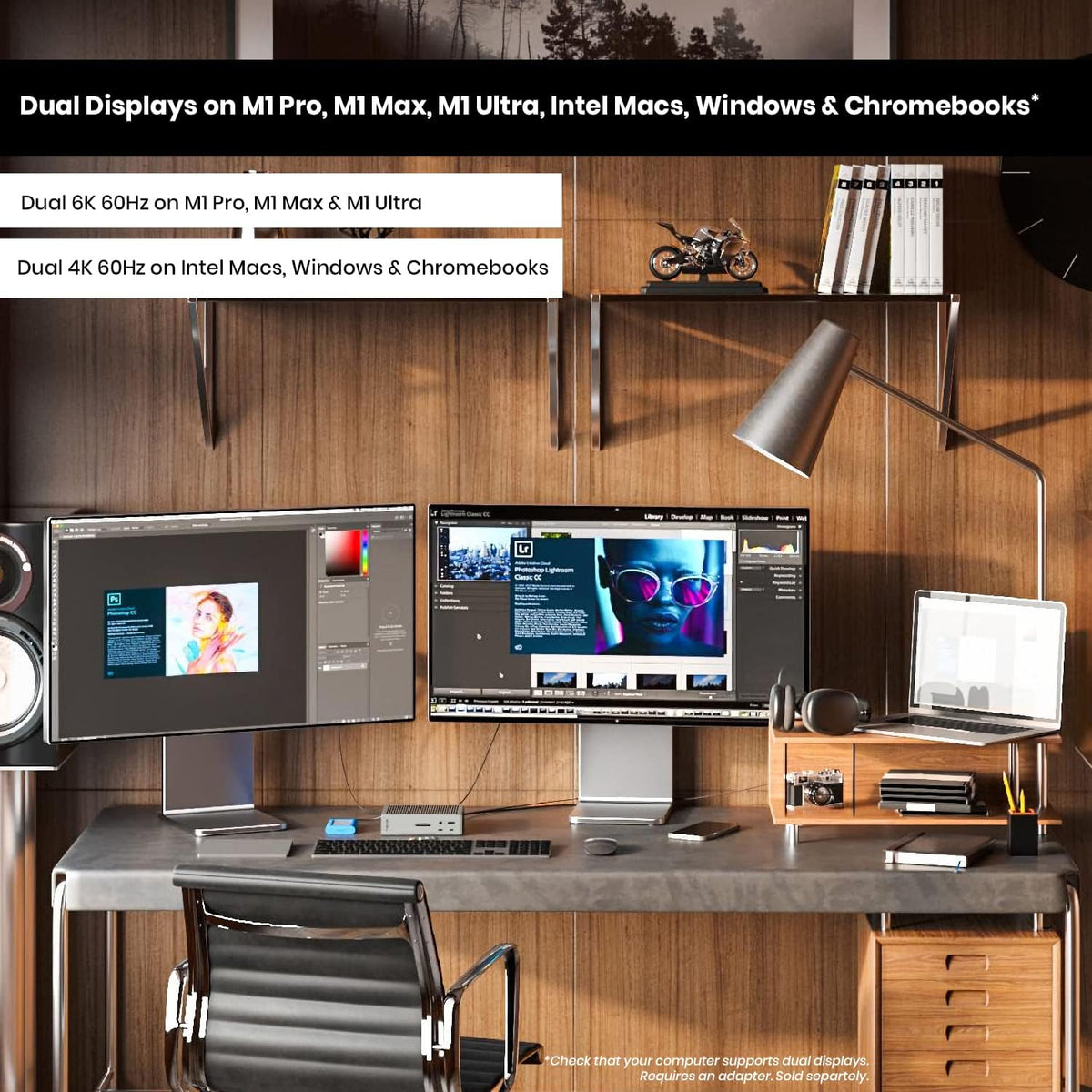

• Single 8K or Dual 6K 60Hz Displays - Windows users can connect a single monitor up to 8K resolution. macOS users can connect a single display up to 6K 60Hz. For anyone looking to add dual displays, Windows users can connect up to dual 4K 60Hz monitors. Users on M1 - M4 Pro, M Ultra and Max can connect up to dual 6K 60Hz display. Users with M1 - M3 (Non Pro) Macs are limited to a single display only due to host hardware limitations.

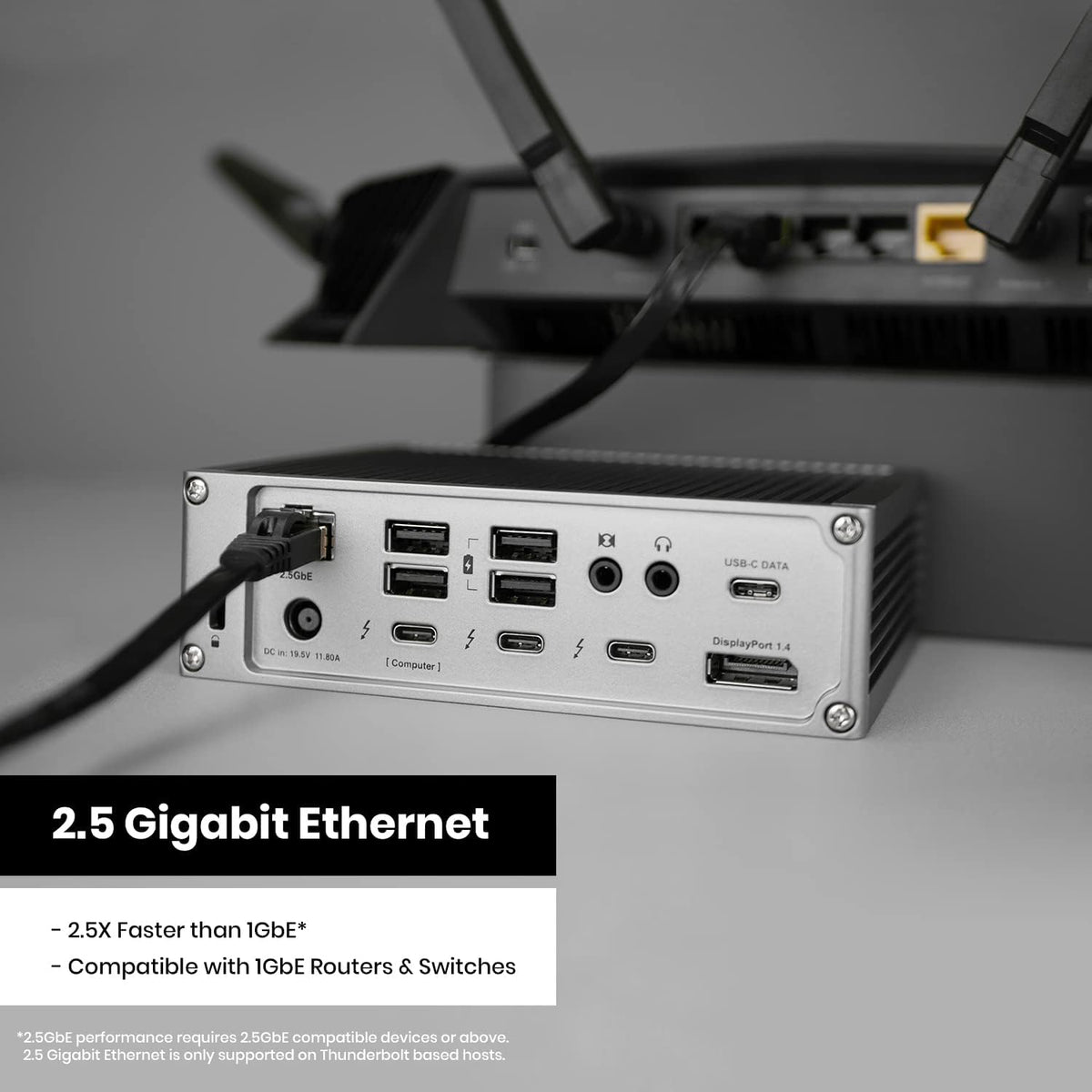

• 2.5 Gigabit Ethernet - The TS4’s 2.5GbE port is 2.5X faster than standard 1GbE, allowing users to connect to faster networks, routers, and NAS devices. This powerful Ethernet port is fully backwards compatible with 1GbE devices. 2.5GbE performance requires a Thunderbolt host connection and 2.5GbE compatible devices or above.

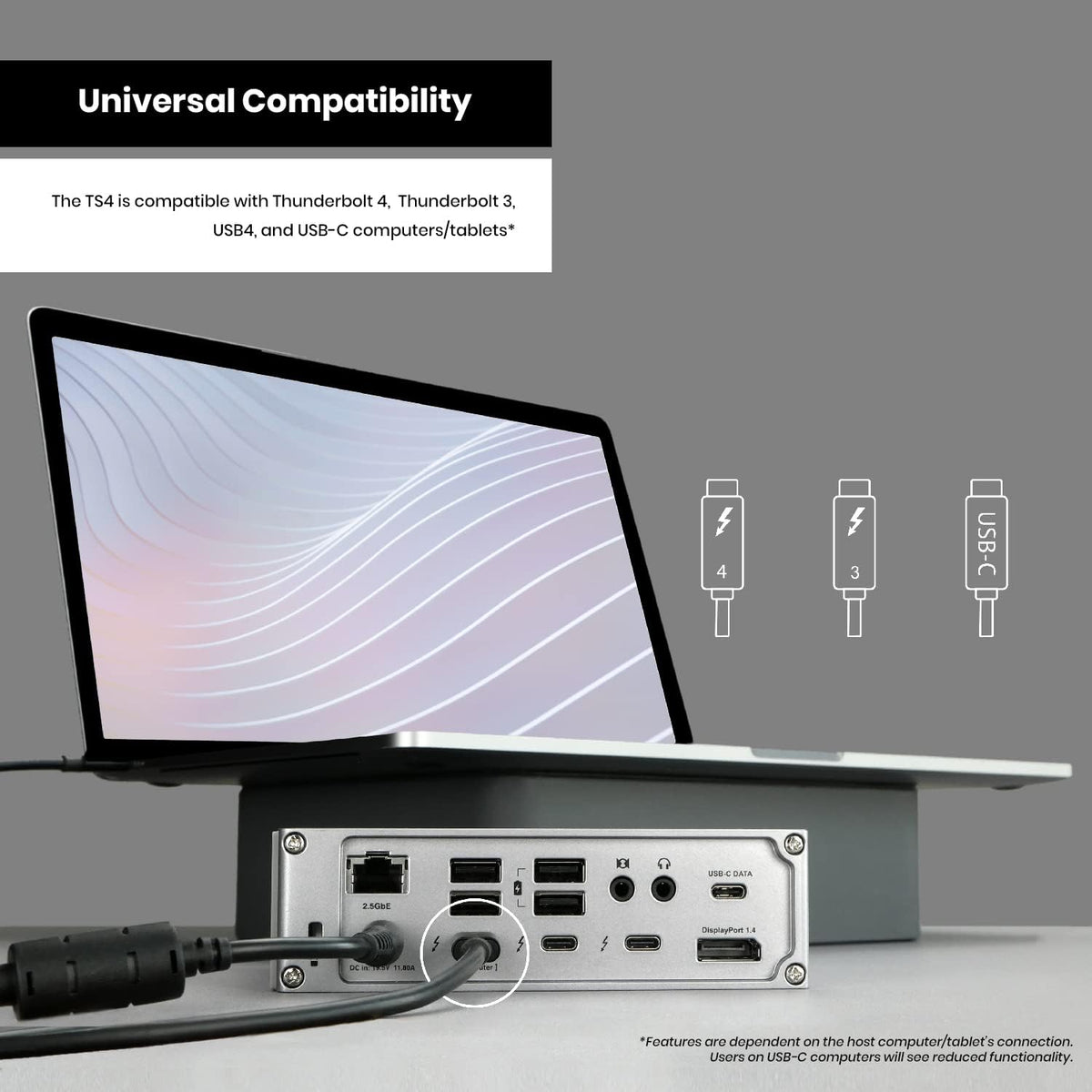

• Universally Compatible - The TS4 works with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C* computers, including Apple M1 - M4, M1 Pro - M4 Pro, M Max and M Ultra, Windows PCs, and Chrome OS devices. Also compatible with the USB-C iPhone 15 - 16 Pro, iPads and Windows tablets that feature Thunderbolt or USB-C. *USB-C port must support data, video, and power for basic functionality
• *The TS4 requires a Thunderbolt 4 or fully optioned USB4 port for maximum performance. When used with older or less powerful interfaces such as Thunderbolt 3, Thunderbolt 2, Thunderbolt 1, USB-C (with data, power, and video support), performance will be capped at the capability of the the host interface specifications **Must be used with supplied certified cable or an Intel Certfied aftermarket Thunderbolt / USB4 cable. More details can be found in the product requirements and specifications section below.

Overview

• Brand : CalDigit
• Color : Space Gray
• Hardware Interface : Thunderbolt, Thunderbolt 4, USB 3.0 Type C, USB 3.1 Type A, USB 3.1 Type C, USB 3.2 Gen 2×2, USB Type C See more
• Compatible Devices : MacBook Air, MacBook Pro
• Total USB Ports : 3
• Number of Ports : 18
• Wattage : 230
• Input Voltage : 120 volts
• Established in 2006, CalDigit started out designing premium external storage solutions for creative professionals. As the industry shifted to the newly introduced Thunderbolt connector in 2011, CalDigit realized the importance that Thunderbolt would bring to workflows worldwide, and we began work on what would become our first docking station – the Thunderbolt Station.
• Having the ability to use the TS4 on any Type-C (with data, power, and video support) computer or tablet is incredibly convenient. Compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, and USB-C (with data, power, and video support) computers, the TS4 adapts to the host computer it connects to, providing the features available to your computer or tablet. **Devices using less powerful/older interfaces than Thunderbolt 4 or USB4 will see a reduction in performance capped by their max specifications Thunderbolt 3, 4 and 5 PC Intel Thunderbolt 3 Mac¹ M4, M Pro, M Max & Ultra Thunderbolt 4 or Thunderbolt 5 Mac¹ M1 Thunderbolt 3 Mac¹ Thunderbolt 3, 4, & 5 PC USB4 PC USB-C (with data, power, and video support) PC USB-C (with data, power, and video support) Windows Tablet Thunderbolt or USB-C (with data, power, and video support) iPad² Thunderbolt or USB-C (with data, power, and video support) Chromebook
• When it comes to laptop charging the TS4 provides up to 98W of power delivery.
• That is the highest charging provided by any Thunderbolt 4 dock, and is ideal for larger screen laptops that require more power.
• For laptops or tablets that require less than 98W, the TS4 will only supply the wattage required by your device.
• 20W USB-C Port
• One of the front-facing USB-C ports can supply up to 20W of power for your attached USB-C device.
• This is ideal for accessories that require more power, such as Apple’s MagSafe wireless charger.
• The TS4 offers a staggering 18 ports of connectivity, the most featured on any Thunderbolt dock ever. The purpose of a device like this is to never run out of ports, and for the majority of us, that should certainly not be the case with the TS4.

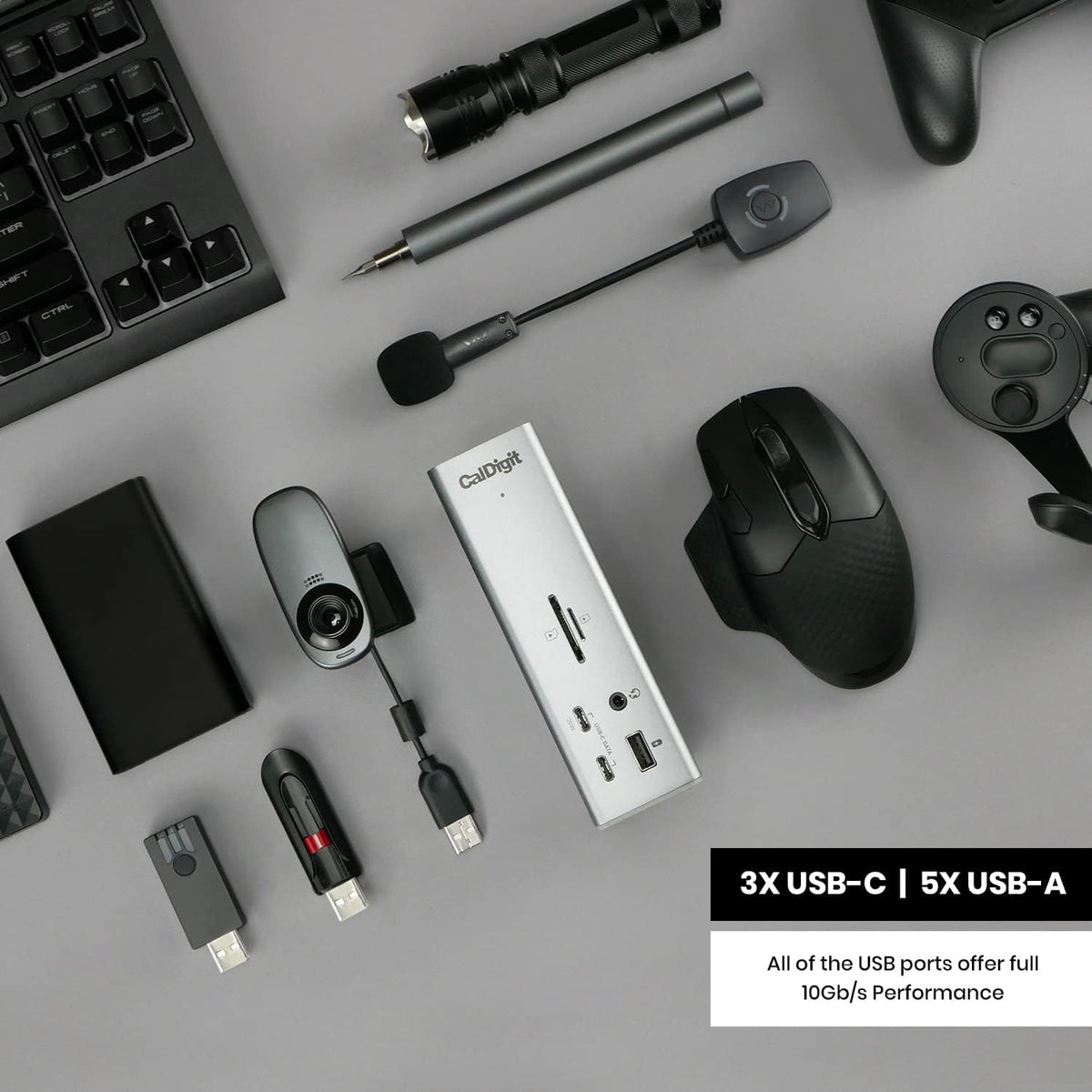

• With 8 USB ports on the TS4, a mixture of USB-A and USB-C, you have plenty of port connectivity to connect your USB accessories³.
• All of the USB ports on the TS4 offer 10Gb/s performance.
• 2.5 Gigabit Ethernet
• The TS4 is a dock that provides a lot of unique features, and that is certainly the case with the inclusion of 2.5GbE.
