The AHT10 is equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element.
The AHT10, a new generation of temperature and humidity sensors, sets a new standard in size and intelligence.
It is embedded in a dual-row flat leadless SMD package for reflow soldering with a 4 x 5mm bottom and a height of 1.6mm.
Its performance has been greatly improved beyond the reliability level of previous generation sensors.

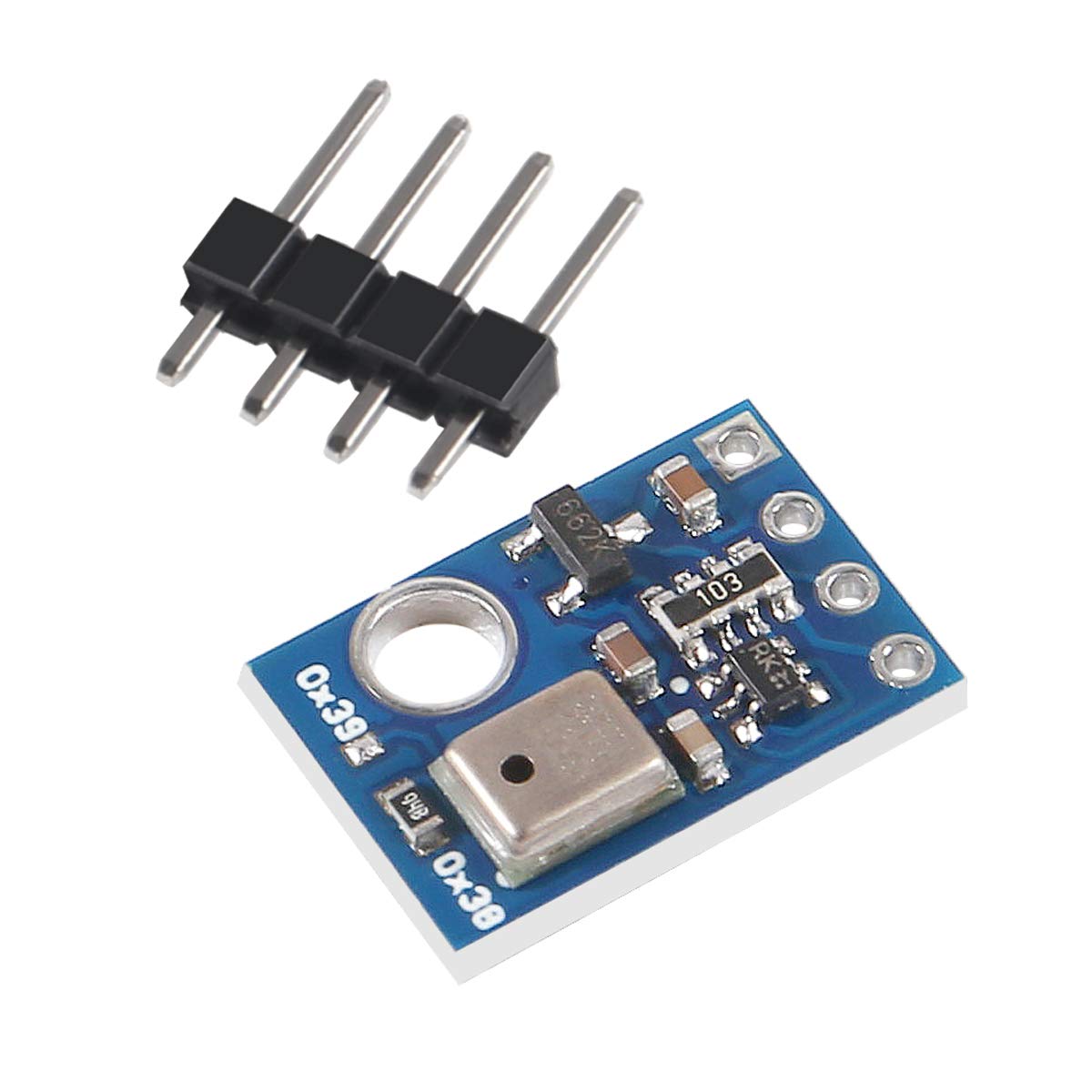

AHT10 High Precision Digital Temperature and Humidity Sensor Measurement Module I2C Communication; The sensor outputs a calibrated digital signal in standard I 2C format. Application: HVAC ,dehumidifier ,testing and testing equipment, consumer goods; Automobiles ,Automatic control ,data recorders, weather stations, household appliances, humidity regulation, medical and other related temperature and humidity detection and control .
Overview
Specification
Package includes

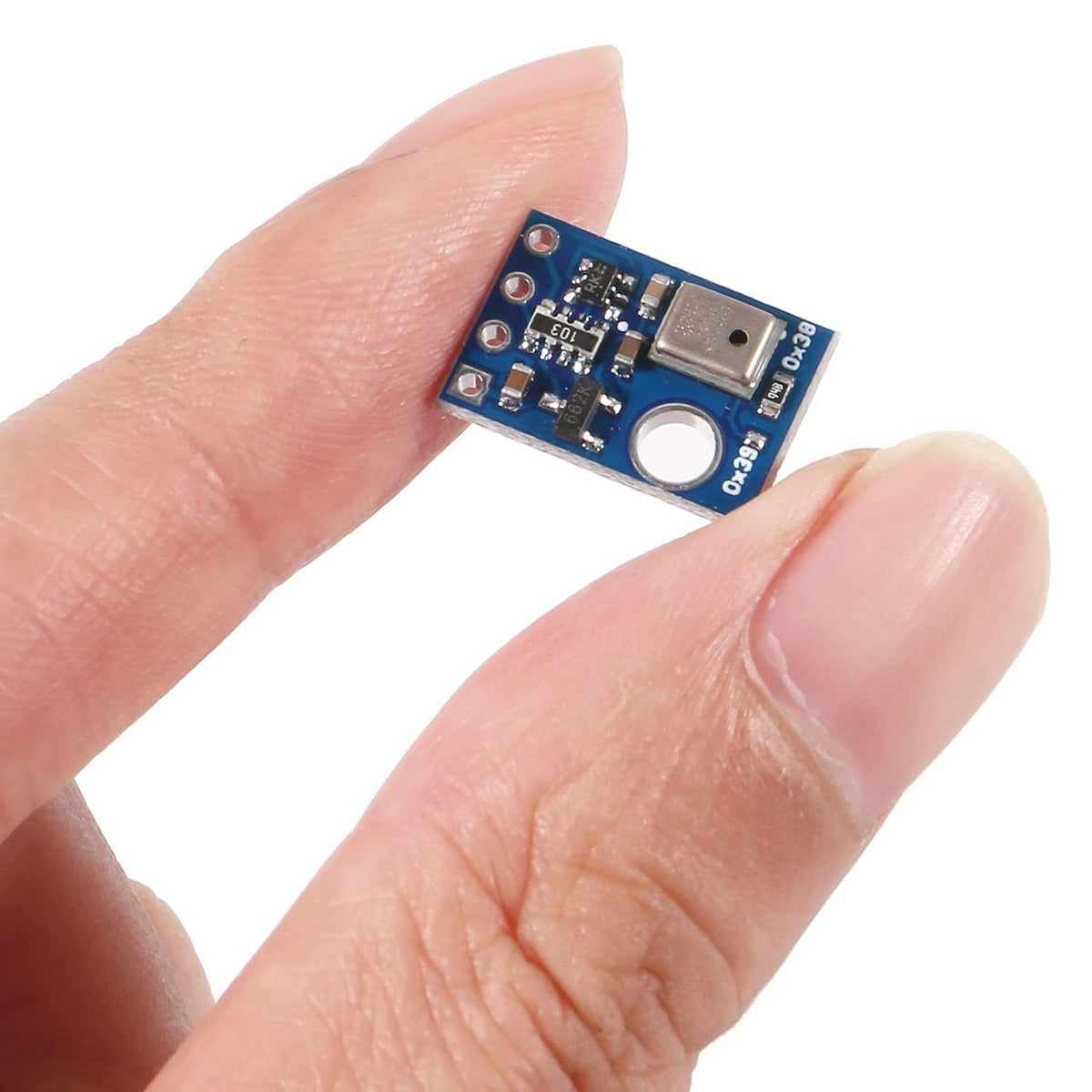

1. Module size: 16 x 11 mmApprox./0.6 x 0.4 inch
2. Interface type: I2C
3. Working voltage: 1.8 - 6.0 V

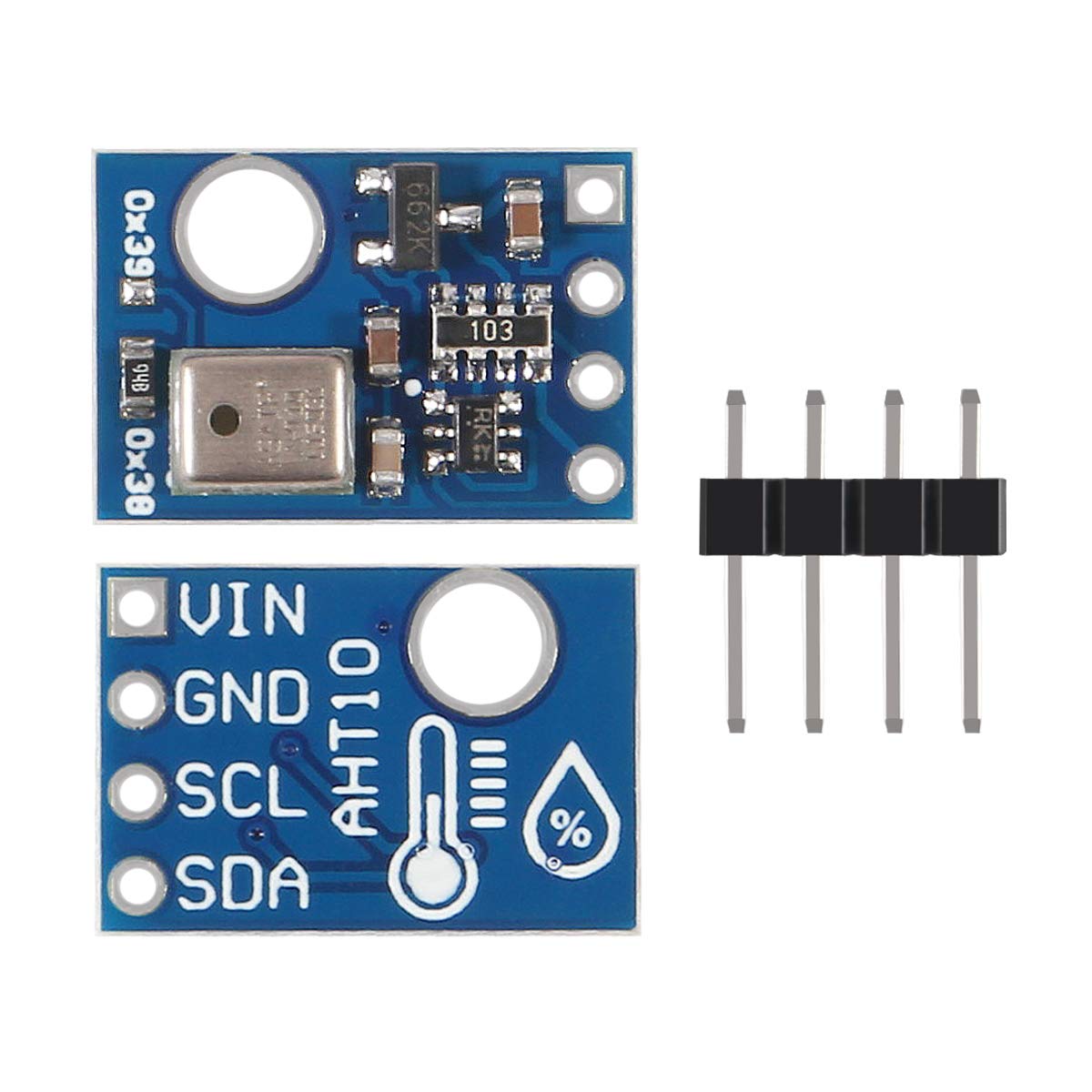

4. Interface size: 4 x 2.54mm pitch
5. Humidity accuracy: typical ± 2%
6. Humidity resolution: 0.024%
7. Temperature accuracy: typical ± 0.3 ° C
8. Temperature resolution: Typical 0.01 °C
9. Working temperature: -40°C--85°C

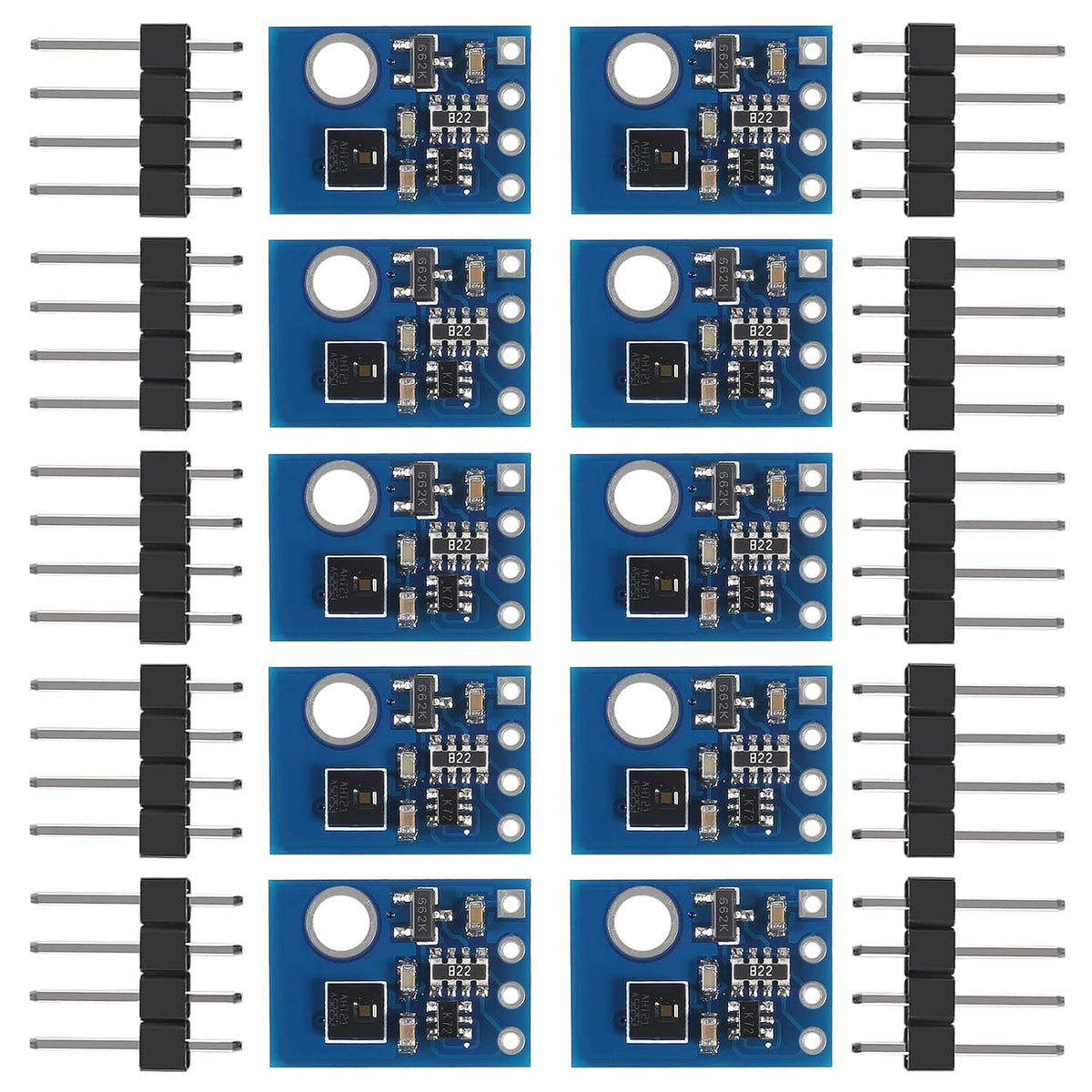

10PCS AHT10 Digital Temperature and Humidity Sensor
