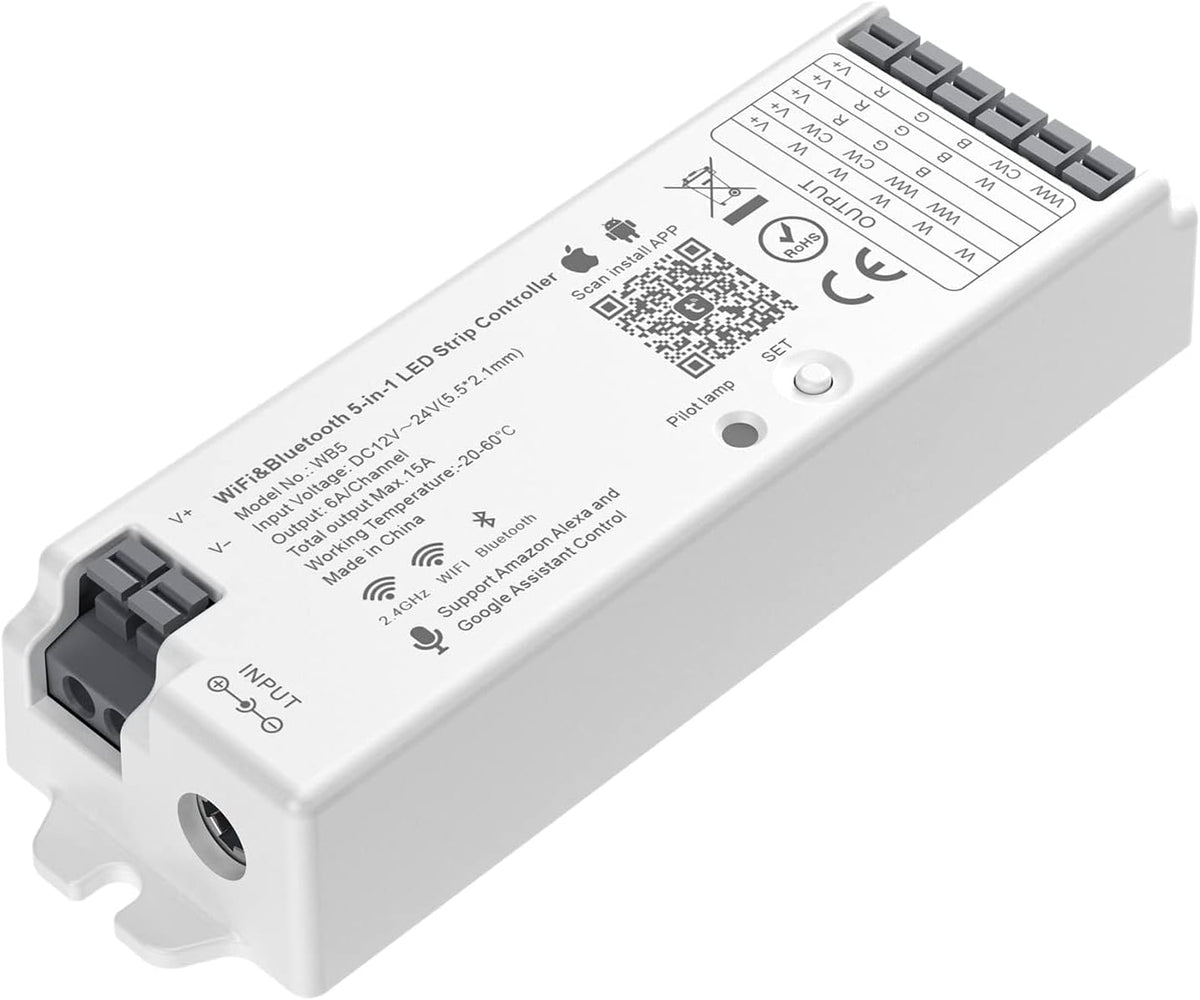

BTF-LIGHTING 5-in-1 WB5 2.4GHz WiFi LED Controller, PWM Dimmer Compatible with Alexa/Google Home/Tuya Smart/Smart Life APP, for Dimming/CCT/RGB/RGBW/RGBCCT Strip Light, Work with WR01RF, WR02RF, etc.

About This

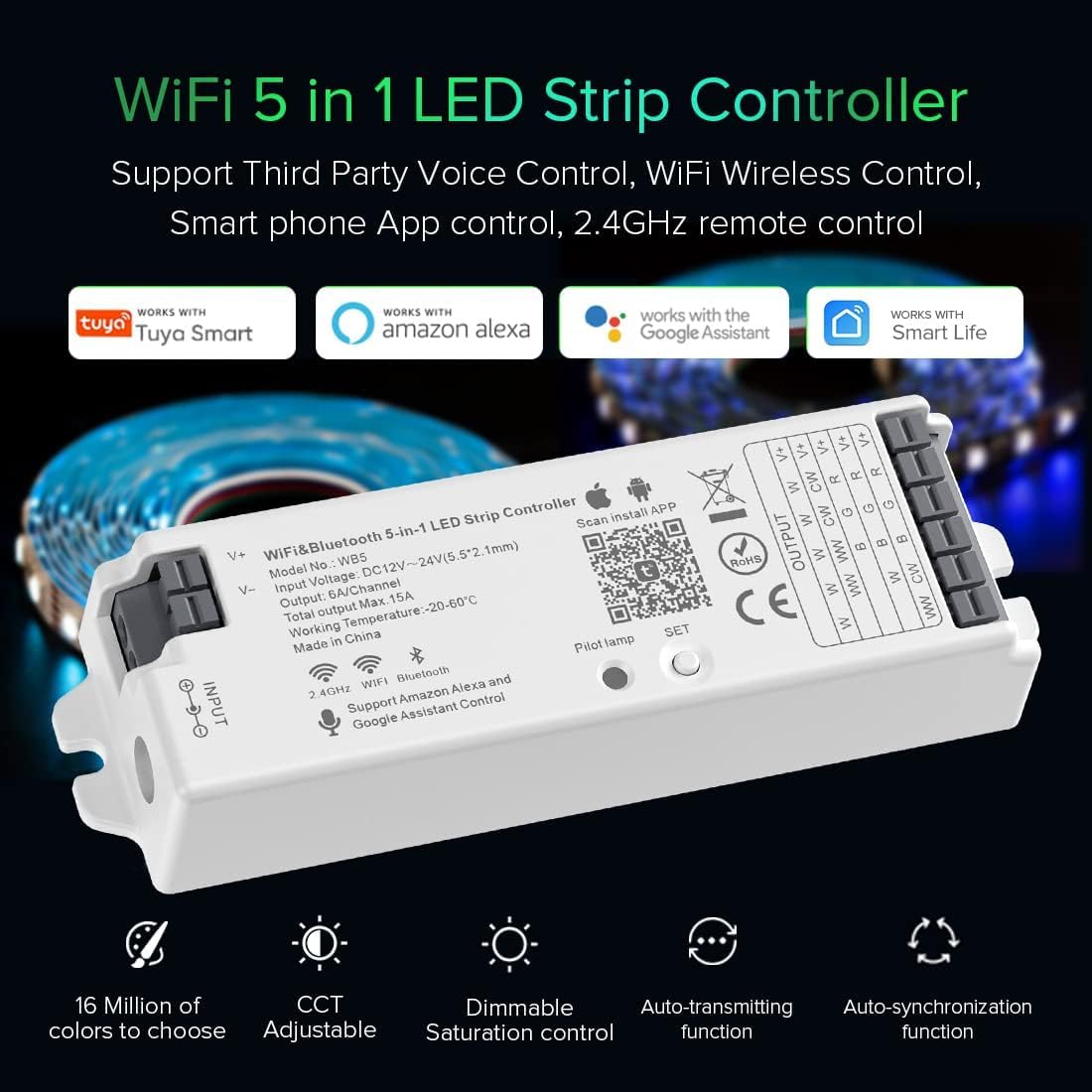

• 5 in 1 Tuya WiFi PWM ControllerWB5=C01W+C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT(Dual White), C03W=RGB, C04W=RGBW, C05W=RGB+CCT. Switch mode by one setting button — no controller swapping.Great for DIYers, home renovators, low-voltage lighting pros, and smart home beginners tackling kitchen cabinets, bookshelves, TV backlights, patio areas, RVs, or PC builds.
• PWM LED TypeSupports PWM Single Color (2 wire), CCT Dual White (3 wire), RGB (4 wire), RGBW (5 wire) and RGBCCT (6 wire) LED strips.FCOB COB 5050 SMD etc LED string strip bulb lamp.Supports DC12V/24V, 6A per channel, total max 15A (180W DC12V / 360W DC24V). Powers long LED strips in kitchens, patios, or home theaters without drop in brightness.

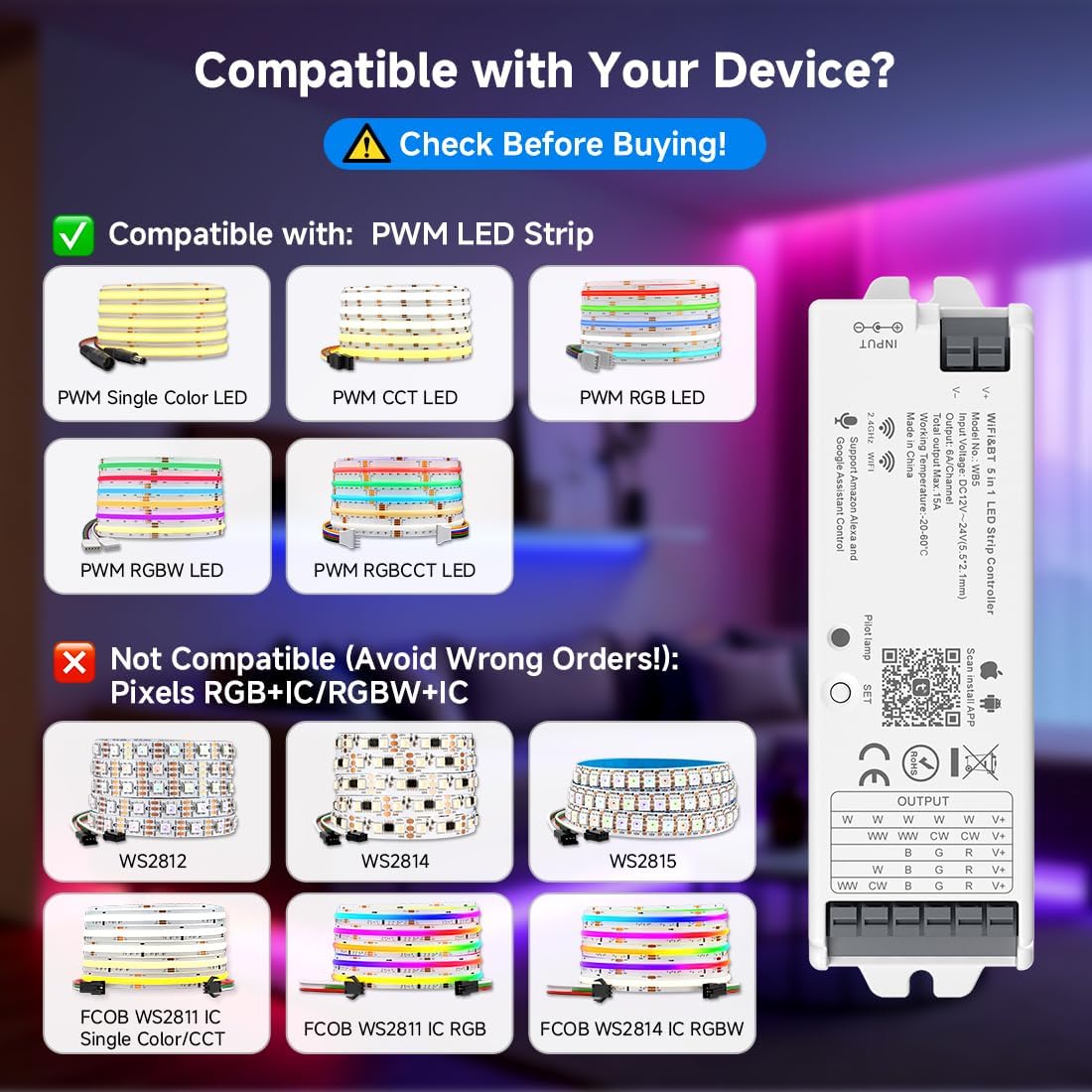

• Not Compatible with Addressable LED StripsThis PWM 5-in-1 2.4GHz WiFi Controller is not compatible with addressable LED strips.Such as: WS2811/WS2812/WS2813/WS2814/WS2815/SK6812/WS2805/FCOB WS2811 IC /FCOB WS2812 IC RGB/FCOB WS2814 IC RGBW, or any FCOB/SMD strips using these ICs (Dim/CCT/RGB/RGBW/RGBCCT). Please verify your strip type before purchase.

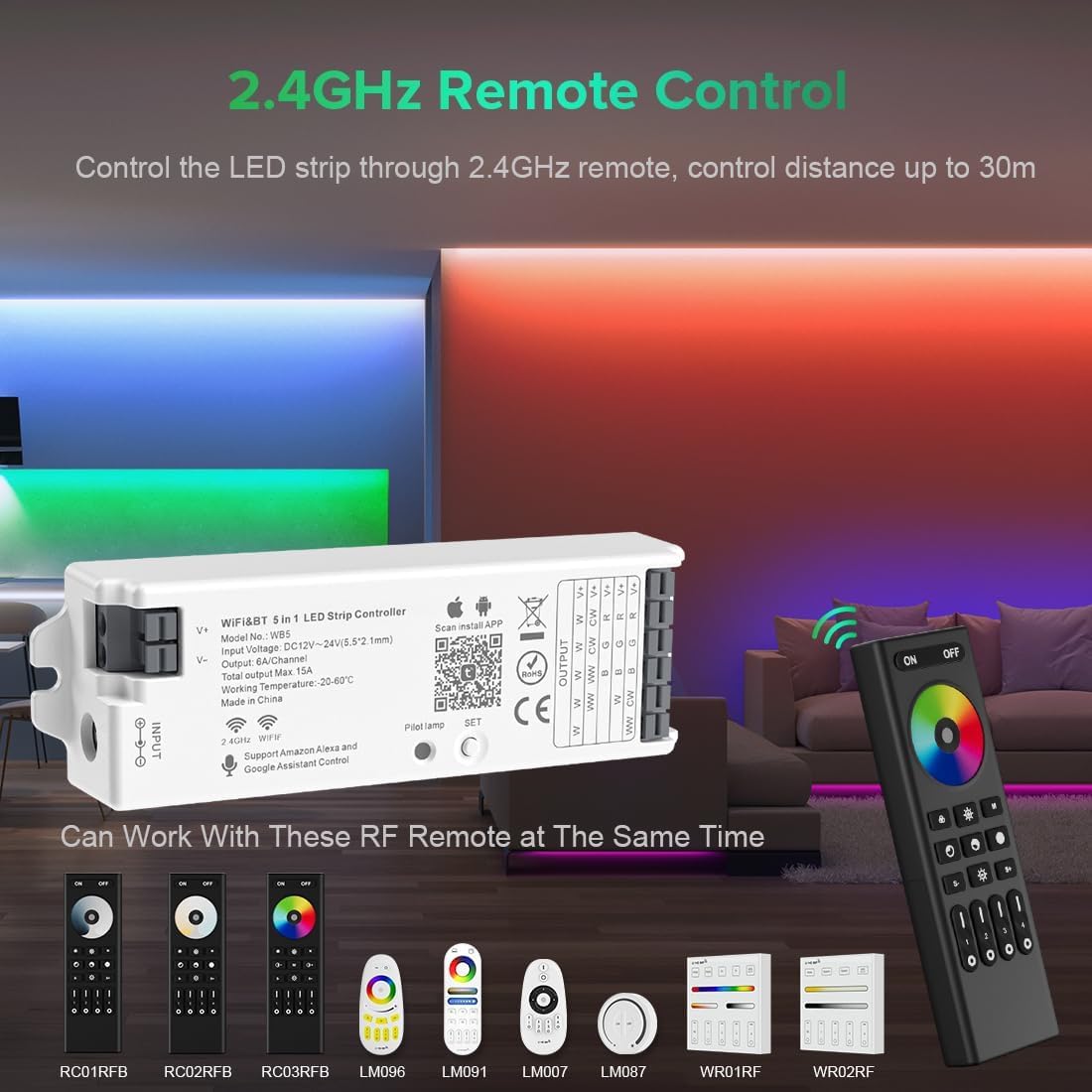

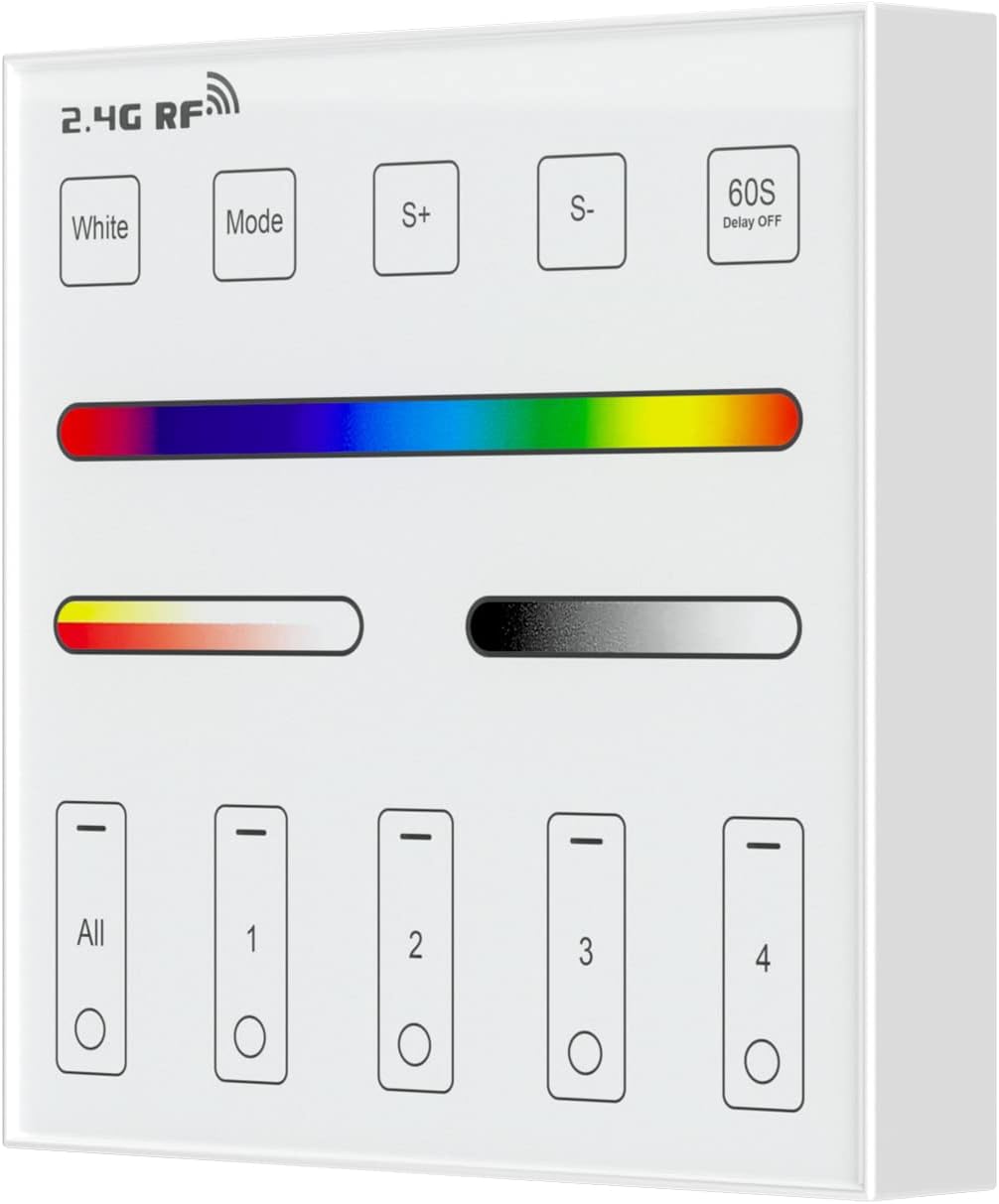

• 3 control methods1st:Compatible 2.4GHz RF Remote: WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB. 2nd: Tuya Smart ,Smart Life APP 2.4GHz Wi-Fi control. 3rd: Alexa, Google Home Assistant control.Three methods can be used at the same time.

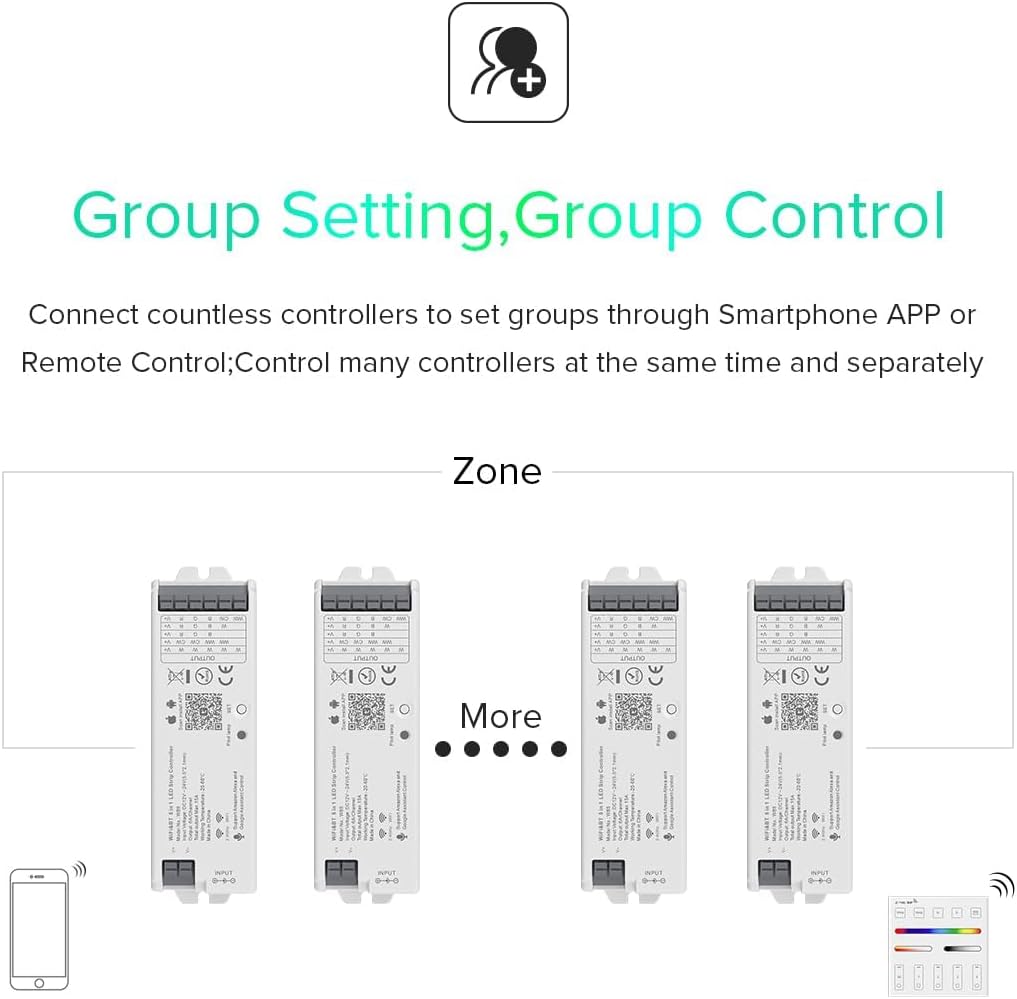

• Multi-function16 millions of RGB colors. Dual White. Dim Brightness/saturation.Group control. Multi zone control. Voice command. Timmer setting.Countdown turn on/off. Biorhythm. Tap-to-Run and Automation. Secene customization. Sleep/wakeup plan. Don’t disturb mode. Device sharing. Selection of different usage scenarios.

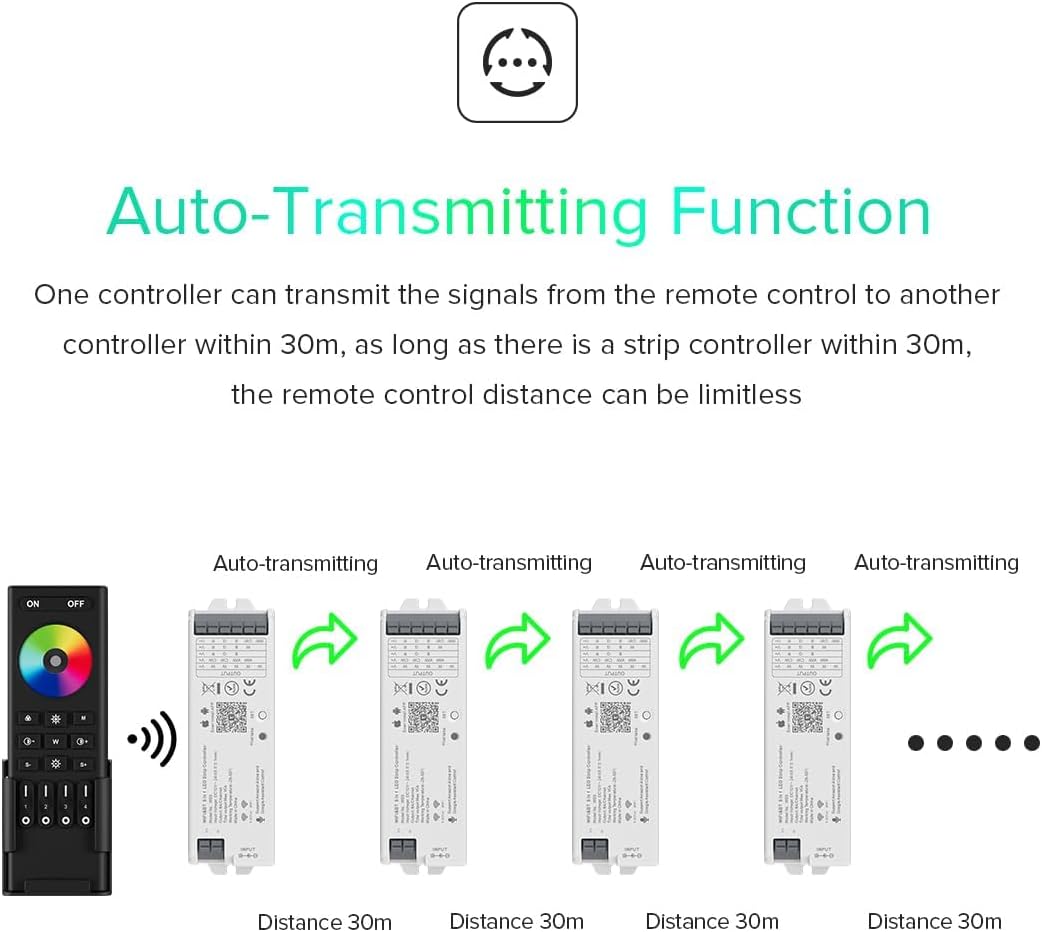

• Auto-transmitting functionOnly for remote control dimming. One controller can transmit the signal from the remote control to the another controller within 30 meters. As long as there is a LED strip controller within 30 meters, the remote control distance can be limitless. All the controllers should be the same group.
• Auto-Synchronization FunctionDifferent controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.

Overview

• Brand : ‎BTF-LIGHTING
• Part Number : ‎WB5
• Assembled Height : ‎2.3 centimeters
• Assembled Length : ‎12.5 centimeters
• Assembled Width : ‎3.8 centimeters
• Item Package Quantity : ‎1
• Style : ‎Modern
• Color : ‎White
• Shape : ‎Square
• Material : ‎Plastic
• Number of Lights : ‎150
• Voltage : ‎24 volts
• Specific Uses : ‎Indoor use only
• Special Features : ‎Adjustable, AppControl, Color Changing, Dimmable, Remote Controlled, Timer
• Light Direction : ‎Adjustable
• Power Source : ‎Corded Electric
• Type of Bulb : ‎LED
• Wattage : ‎360
• Bulb Features : ‎Dimmable
• Average Life : ‎50000 hours
