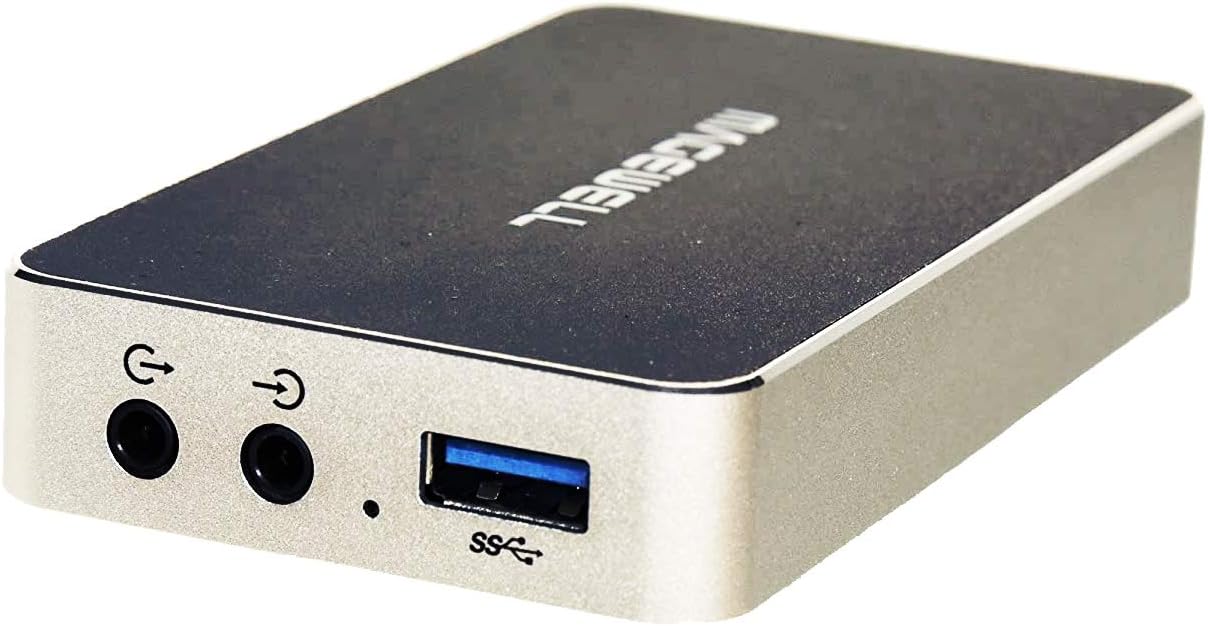

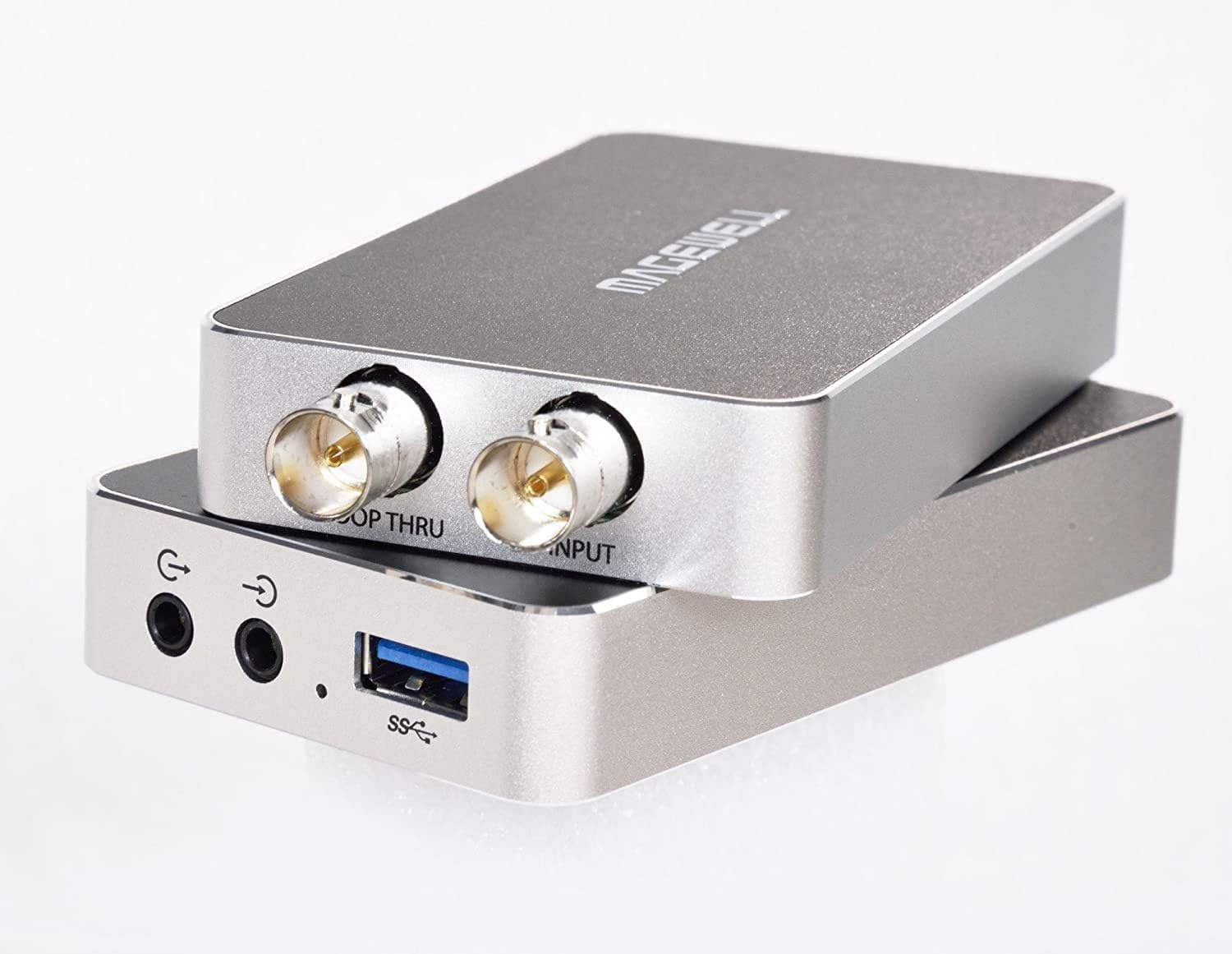

High-Quality 2K SDI Capture – Accepts SD/HD/3G/2K SDI input (up to 2048×1080 60fps) and captures up to 120 fps for smooth, detailed video.

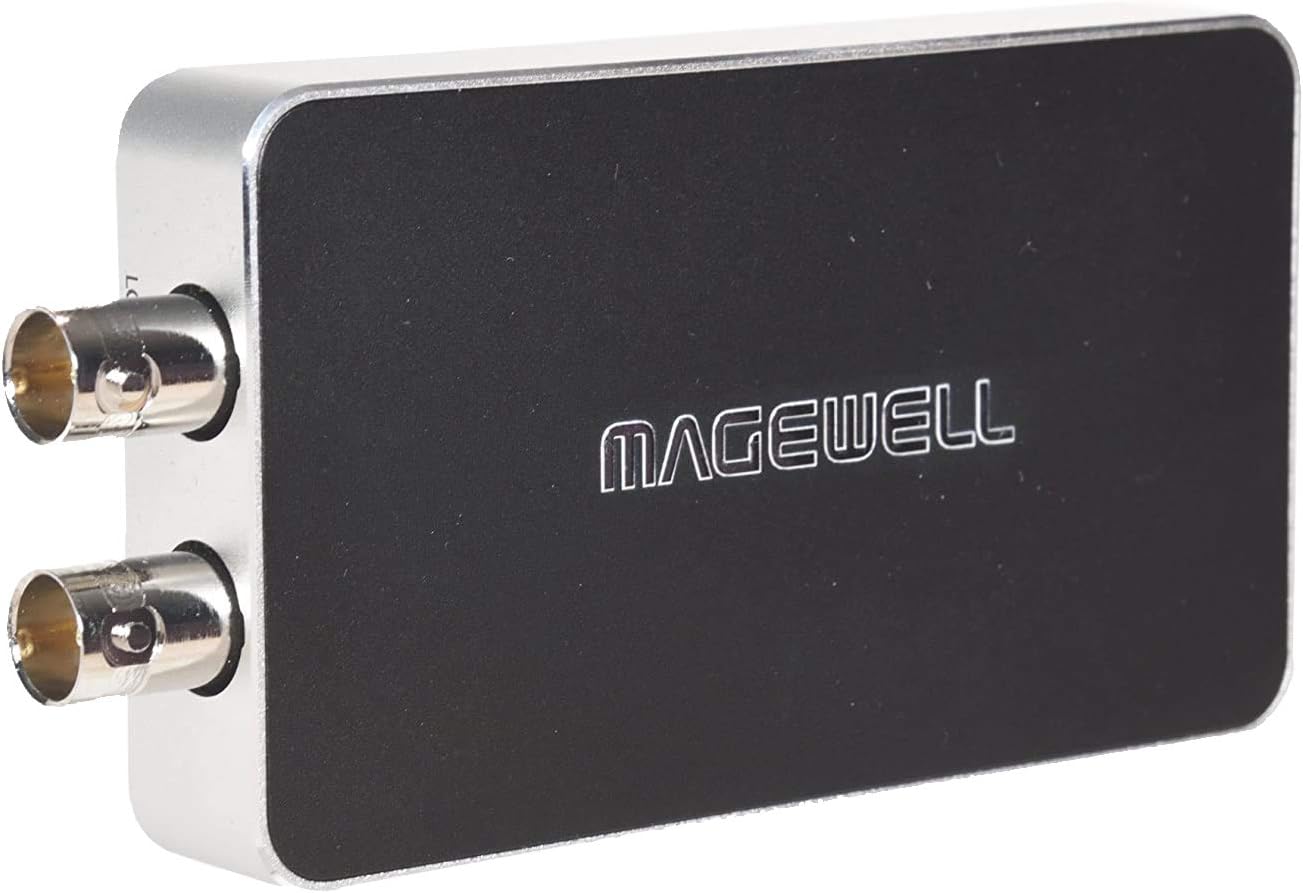

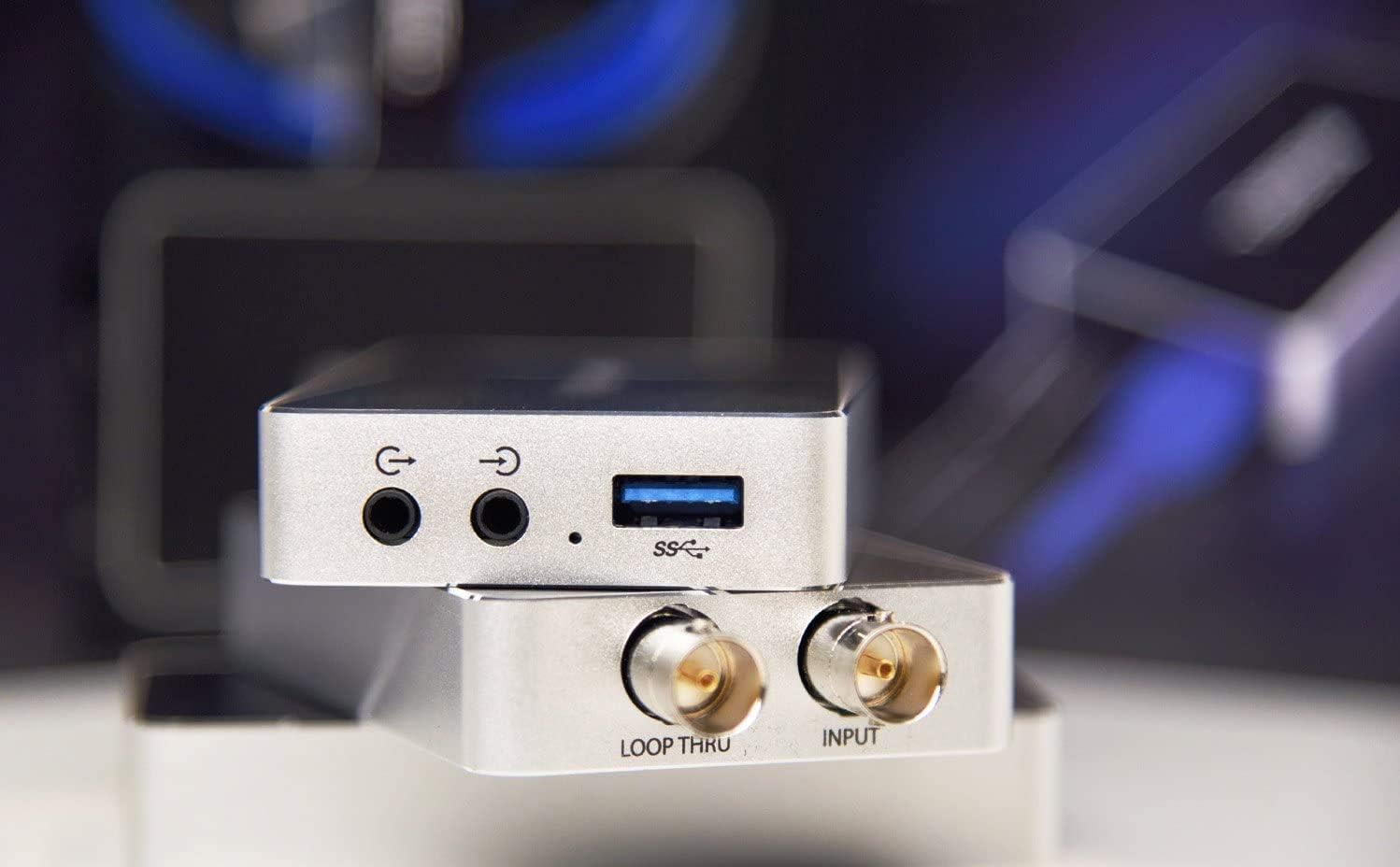

SDI Loop-Through for Monitoring – BNC loop-through lets you route the signal to an external monitor while capturing without latency.
Flexible Audio Handling – De-embed SDI embedded audio or feed in analog line audio (3.5 mm). Output via analog line out for monitoring.
FPGA-Based Video Processing – Onboard cropping, scaling, de-interlacing, color format conversion and flip/mirror reduce load on your computer.
Plug-and-Play USB 3.1 – No drivers needed; works out-of-the-box on Windows, macOS, Linux, and Chrome OS. Backward compatible with USB 2.0 (at lower performance).
Control & Updates via Utility – Use Magewell’s utility software to configure EDID, video settings, firmware updates, and diagnostics.
