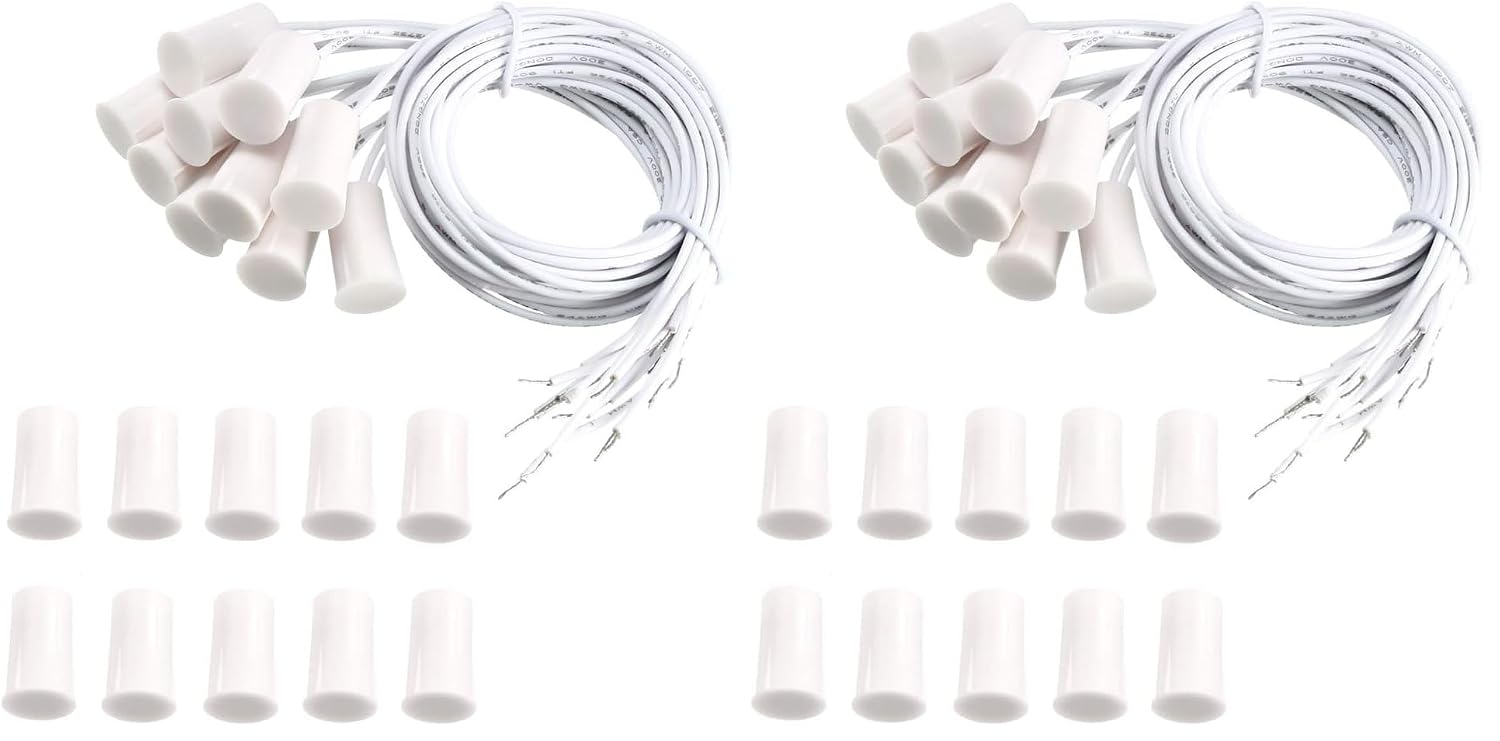

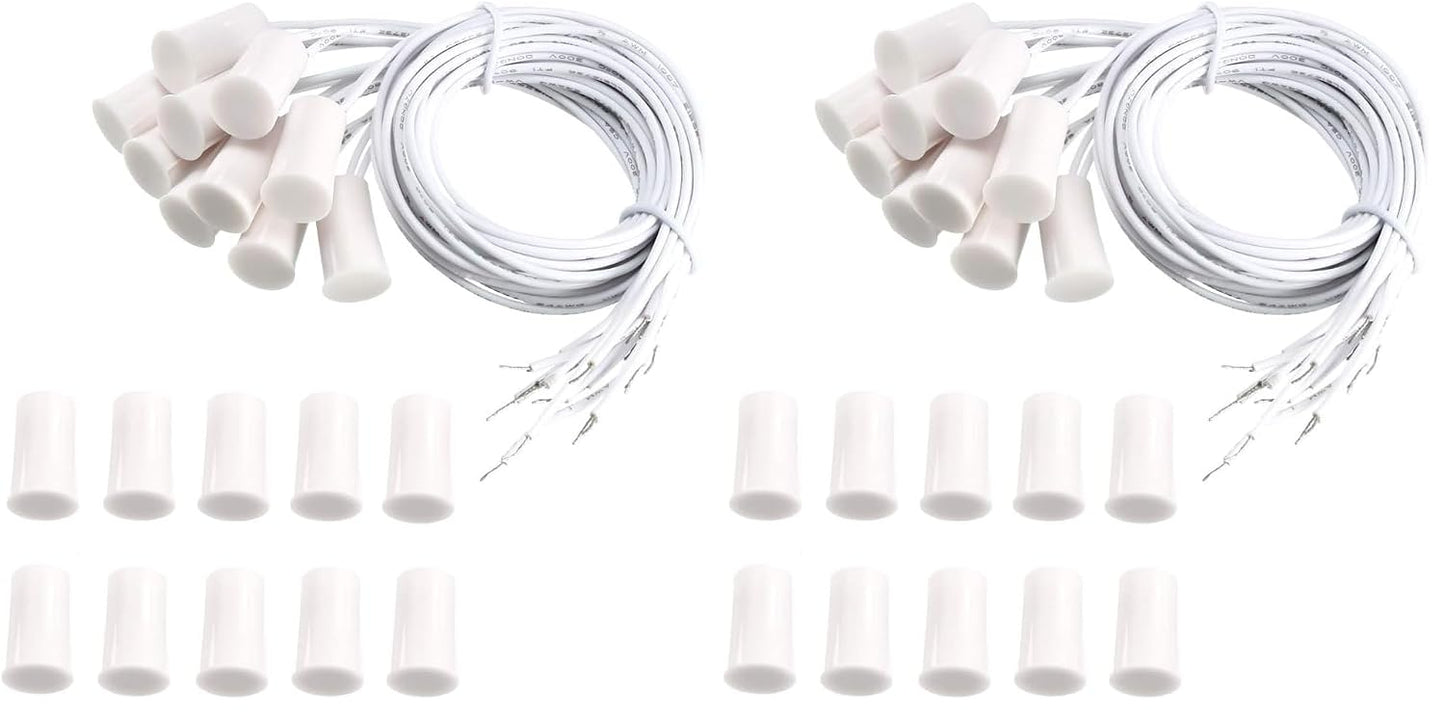

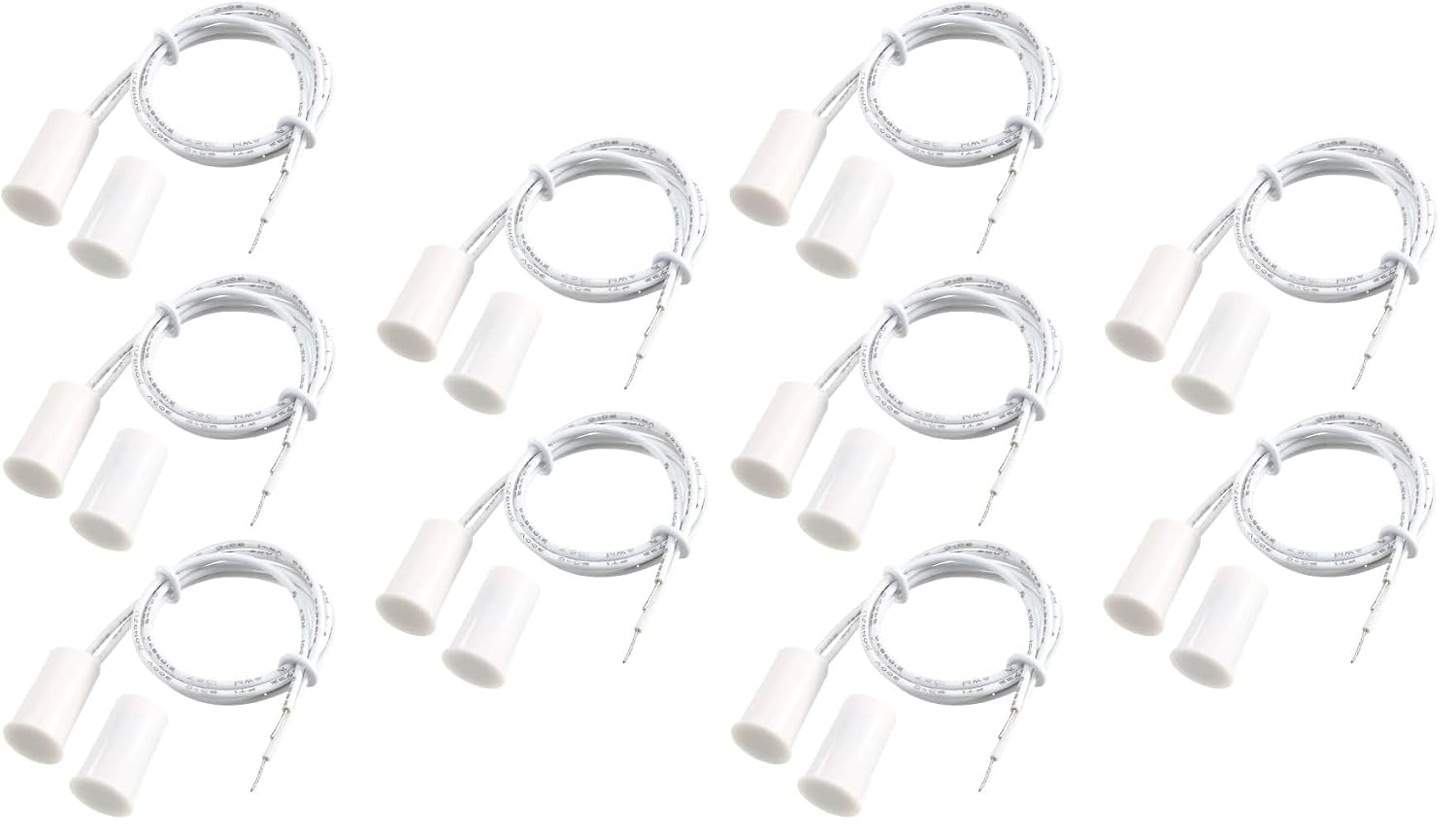

Magnetic Reed Switch RC-33 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs

About This

• MATERIAL - The switch housing is made of ABS flame retardant material and reed switch, is resistant to high temperature and deformation.

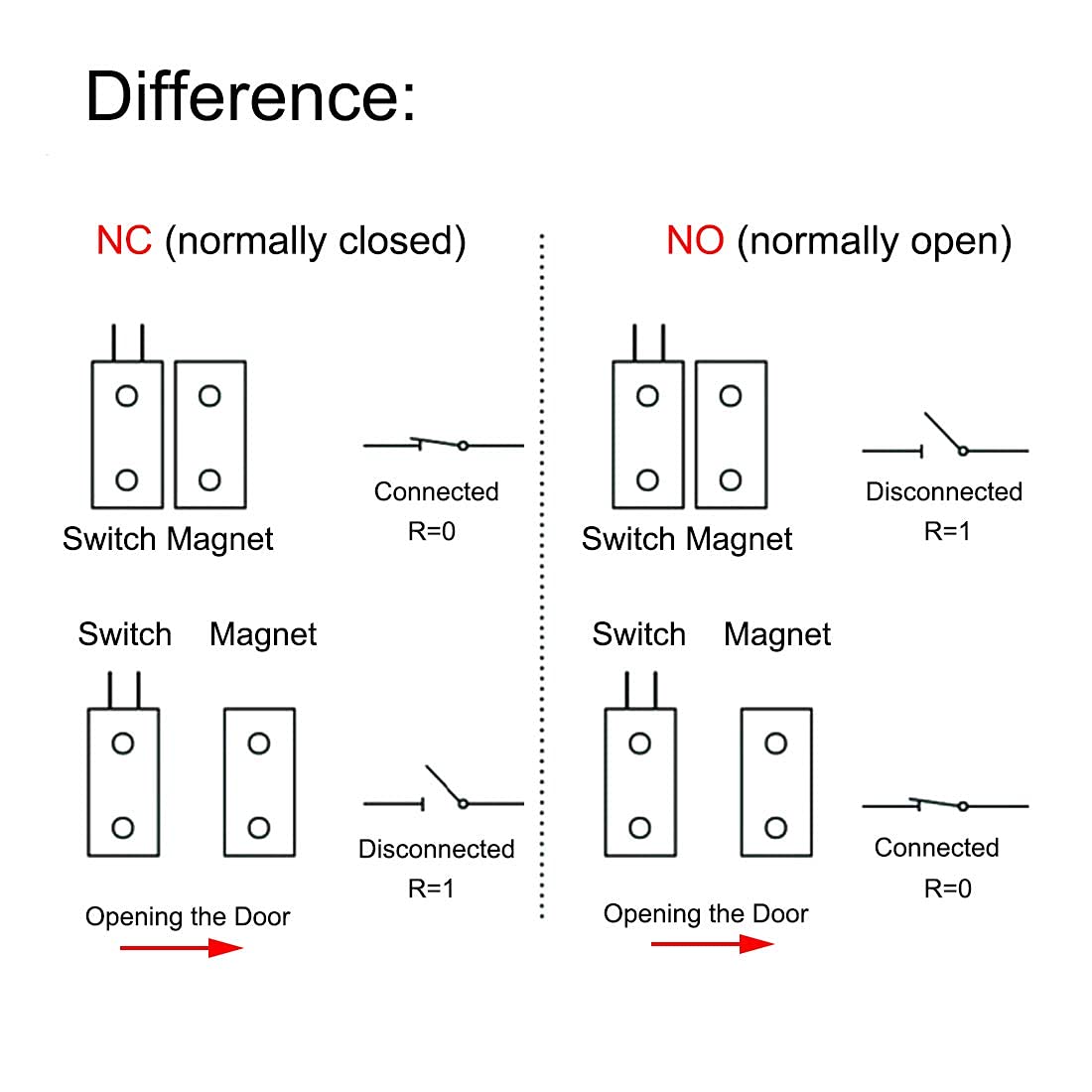

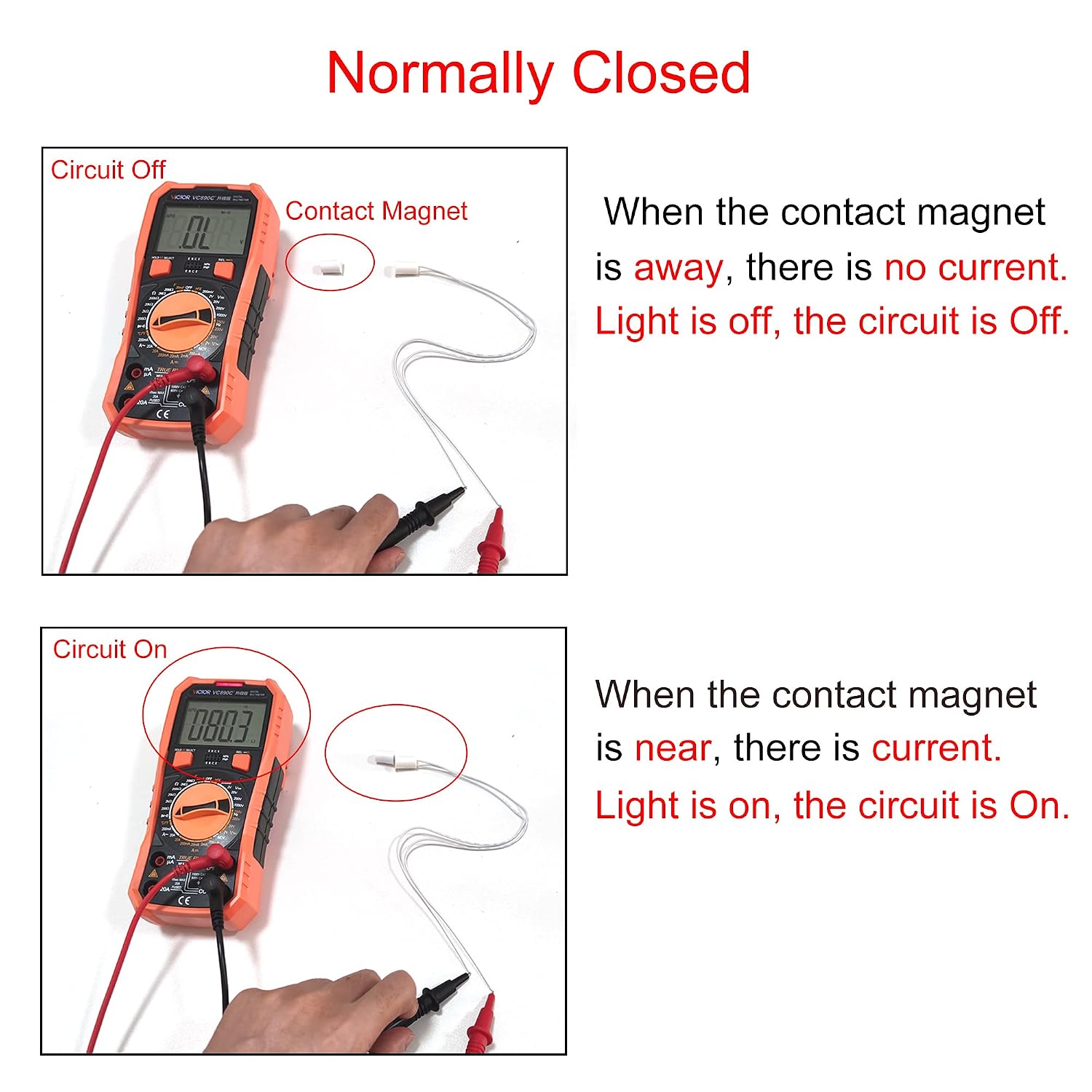

• NORMALLY CLOSED(NC) - When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
• ACTUATION DISTANCE - 10mm transmitting distance. The contact has fast reflection and accurate detection.
• WORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the supply current cannot exceed 1A. The load current is 120mA.
• WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.

Overview

• Operation Mode : Off
• Current Rating : 120 milliamps
• Operating Voltage : 24 volts
• Contact Type : Normally Closed
• Connector Type : Wire Leads
• Brand : VictorsHome
• Switch Type : Reed Switch
• Terminal : Screw
• Material : Aluminum,Wooden,Aluminum Alloy,Abs
• Item dimensions L x W x H : 3.15 x 0.79 x 2.76 inches
• For electrical, hardware, and home solutions.
• We focus on simplifying home life through time-tested durability and fast delivery.
• No flashy innovations or overengineering - just straightforward tools that adapt to your routines.

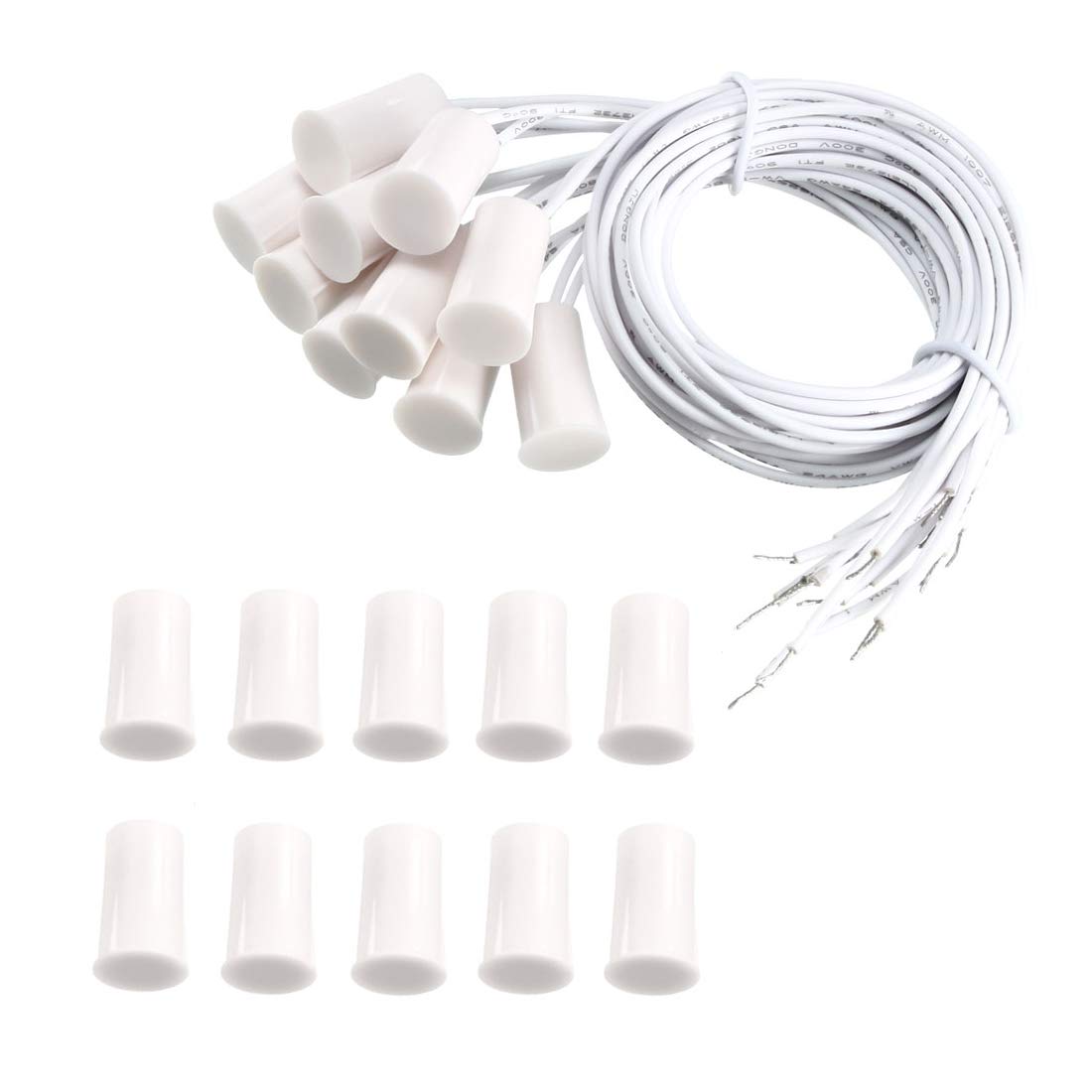

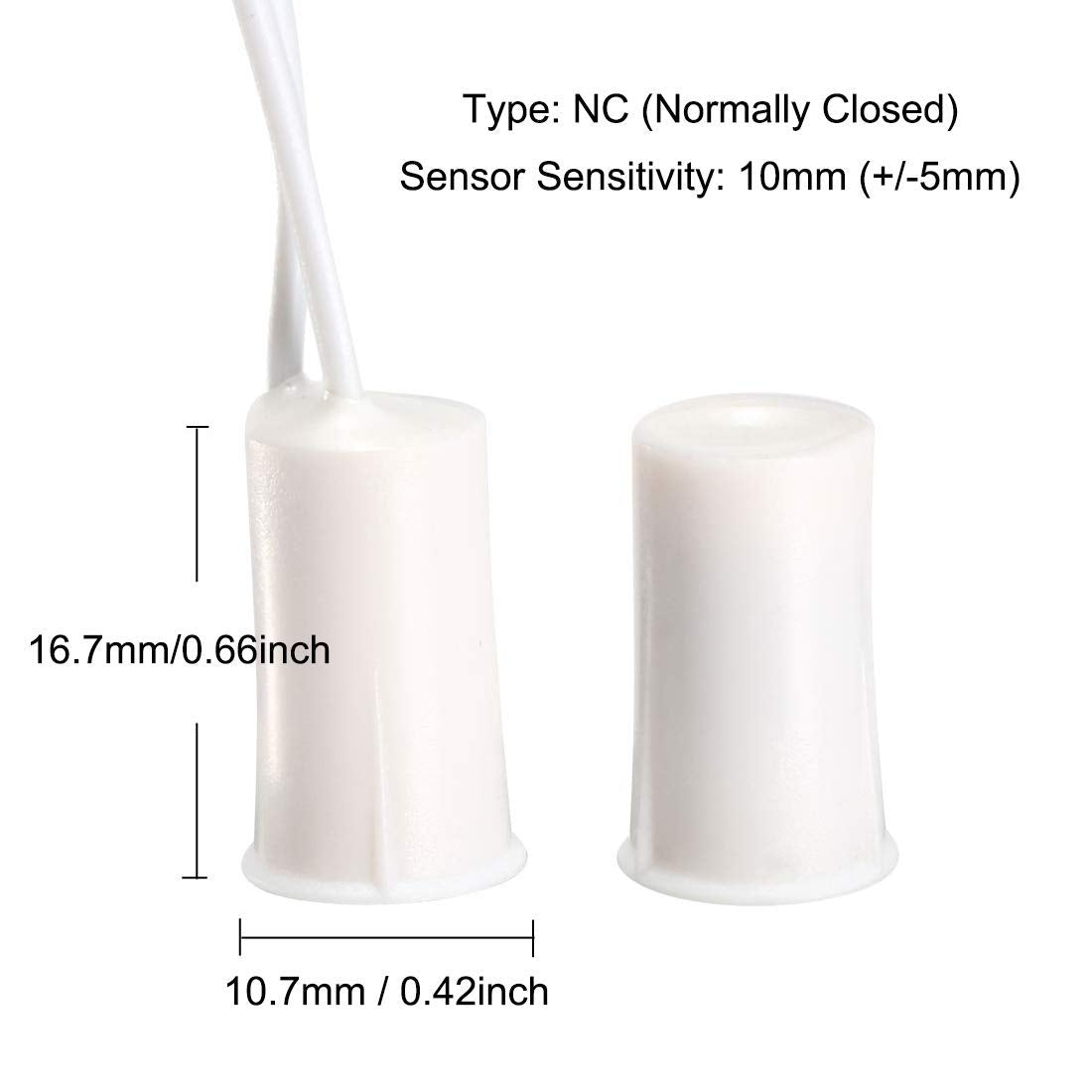

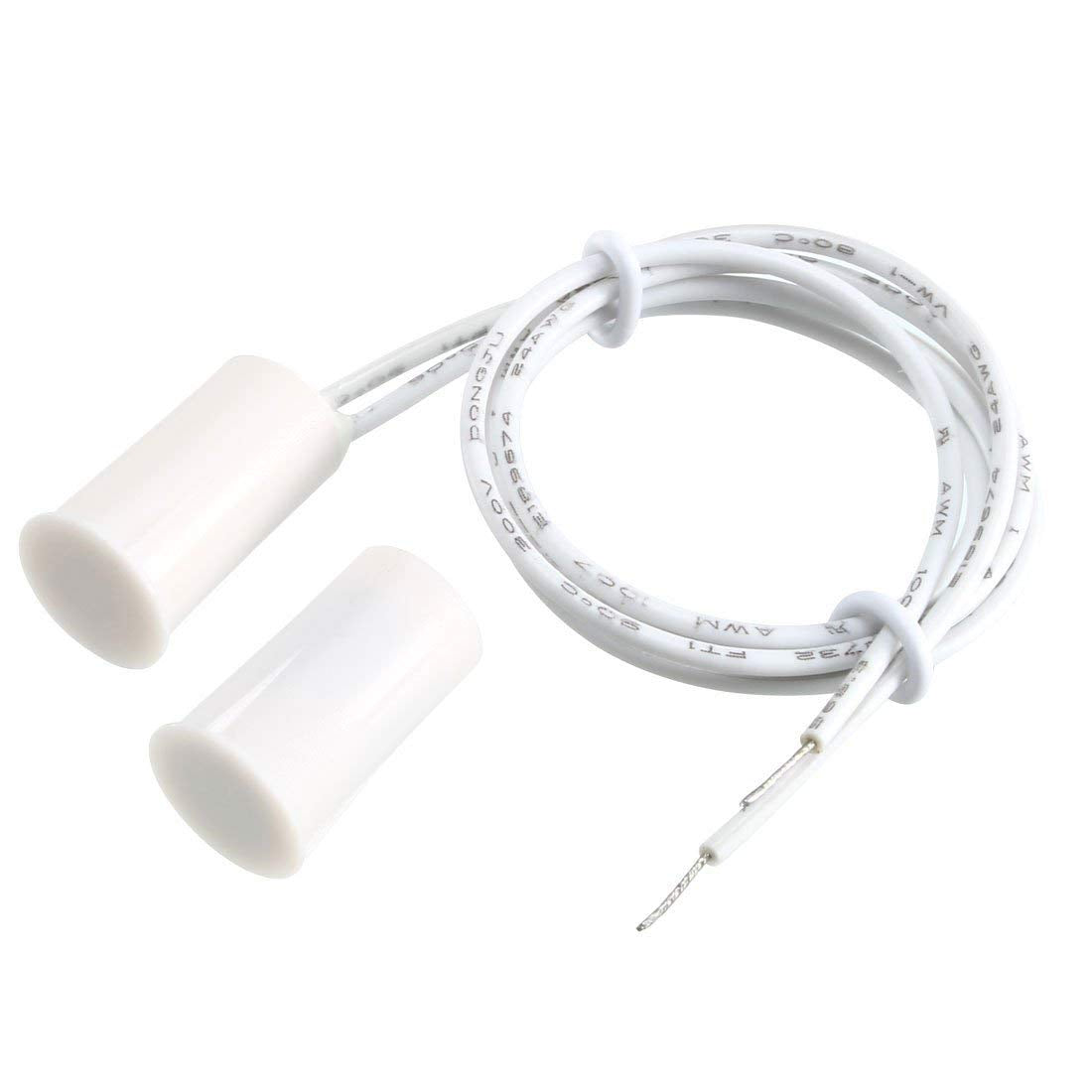

• NORMALLY CLOSED When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off). WIDE APPLICAIONS Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows. PLEASE NOTE A magnetic door contact can only provide a switching signal to the device. It cannot directly load the power supply and cannot be directly connected to the lamp. Specifications: Model: RC-33 Contact Type: NC(Normally Closed) Max. Sensor Sensitivity: 10mm(+/-5mm) Max. Current: 120mA Max. Voltage: 100V Working Voltage: DC0-24V Max. Contact Power: 10W Size(Approx.): 16.7 x 10.7mm / 0.66 x 0.42inch (H*D) Cable Length(Each): 30cm / 11.8inch Housing Material: ABS Wire Type: 1007#/24#300mmUL Package Content: 10 x Magnetic Door Switch
• NORMALLY CLOSED
• When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
• WIDE APPLICAIONS
