Waveshare BME280 Environmental Sensor, Temperature, Humidity, Barometric Pressure, I2C, SPI, Compatible with Raspberry Pi, Arduino, Pico

About This

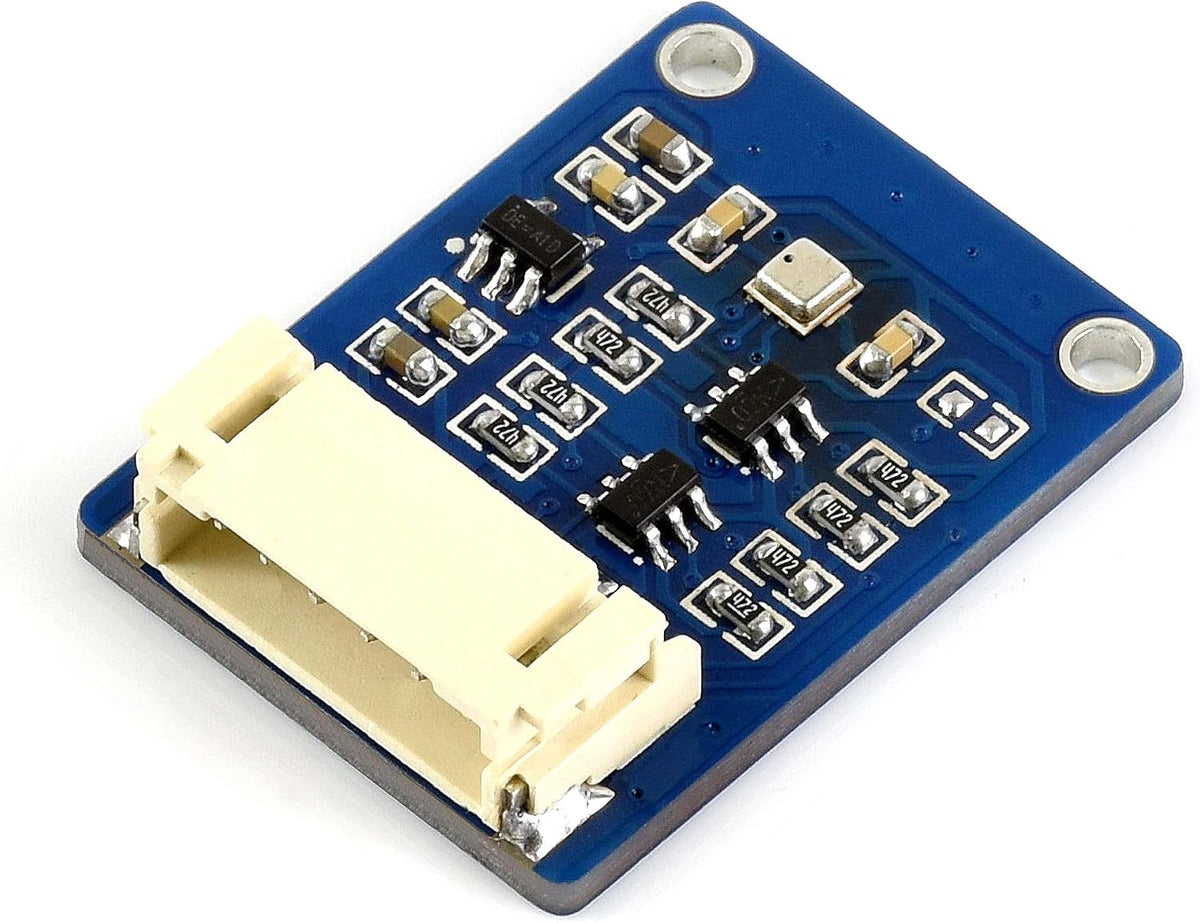

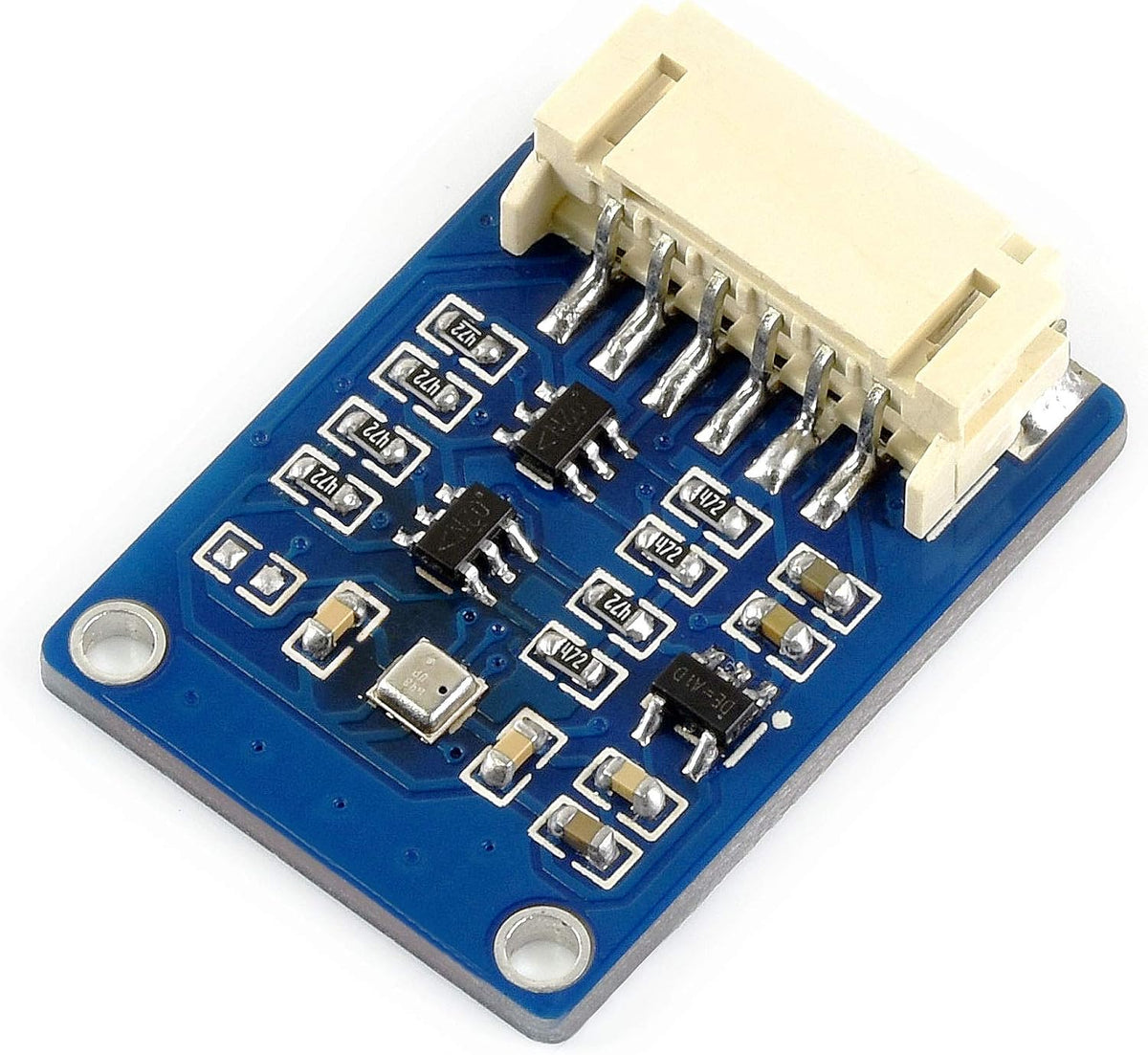

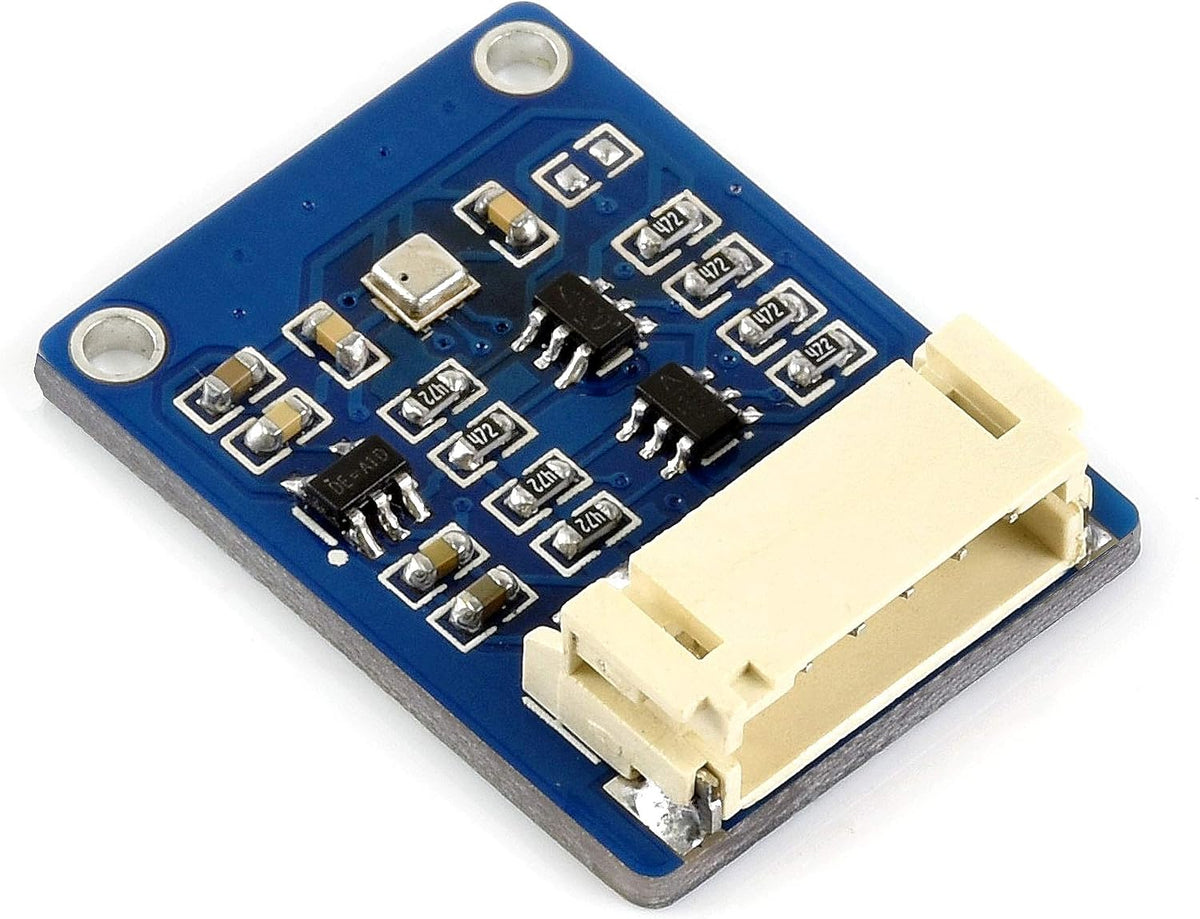

• A tiny sensor breakout with onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.
• Due to its ultra small form factor, low power consumption, high precision with stability, the Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on.

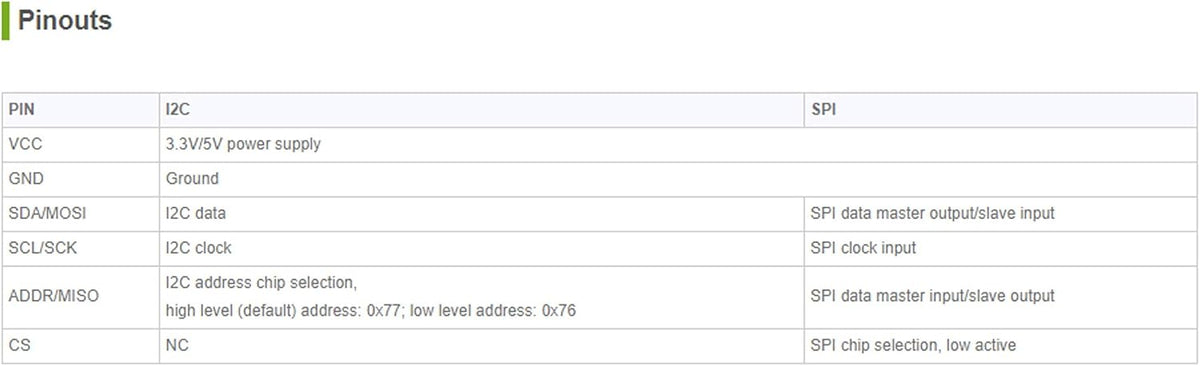

• Supports I2C (default), configurable slave address. Supports SPI, switch to SPI via I/O setting
• Onboard voltage level translator, compatible with 3.3V/5V operating voltage
• Comes with development resources and manual (examples for Raspberry Pi/ /STM32)

Overview

• Brand : waveshare
• Item dimensions L x W x H : 7.09 x 3.94 x 3.54 inches
• Style : Modern
• Maximum Supply Voltage : 5 volts_of_direct_current
• Overview A tiny sensor breakout with onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels. Due to its ultra small form factor, low power consumption, high precision with stability, the Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on. Features Supports I2C (default), configurable slave address Supports SPI, switch to SPI via I/O setting Onboard voltage level translator, compatible with 3.3V/5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/ /STM32) Specifications Operating voltage: 3.3V/5V Communication interface: I2C/SPI Temperature sensing: -40~85°C (resolution 0.01°C, accuracy ±1°C) Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy ±3%RH, response time 1s, delay ≤2%RH) Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy ±1hPa) Power consumption: <0.1mA@1Hz (H,P,T) Dimension: 27mm x 20mm Mounting hole size: 2.0mm
