Magnetic Base, MGBR-01, Magnetic Stand for Digital Dial Indicators, 176lbs Max Pull

About This

• Adjustable Arm Design – Features two arms: lower arm (4.5") and upper arm (4"), with a total height of 14.1", providing flexibility for precise positioning.
• Strong Magnetic Base with ON/OFF Control – Equipped with two strong magnet surfaces, delivering 176 lbs of holding force (works best on metal/steel 30mm+ thick). Thinner metal reduces magnetic force.
• Universal Compatibility – Designed with a 9.5mm clamping hole diameter, making it compatible with most dial and digital indicators, including all Clockwise Tools indicators.

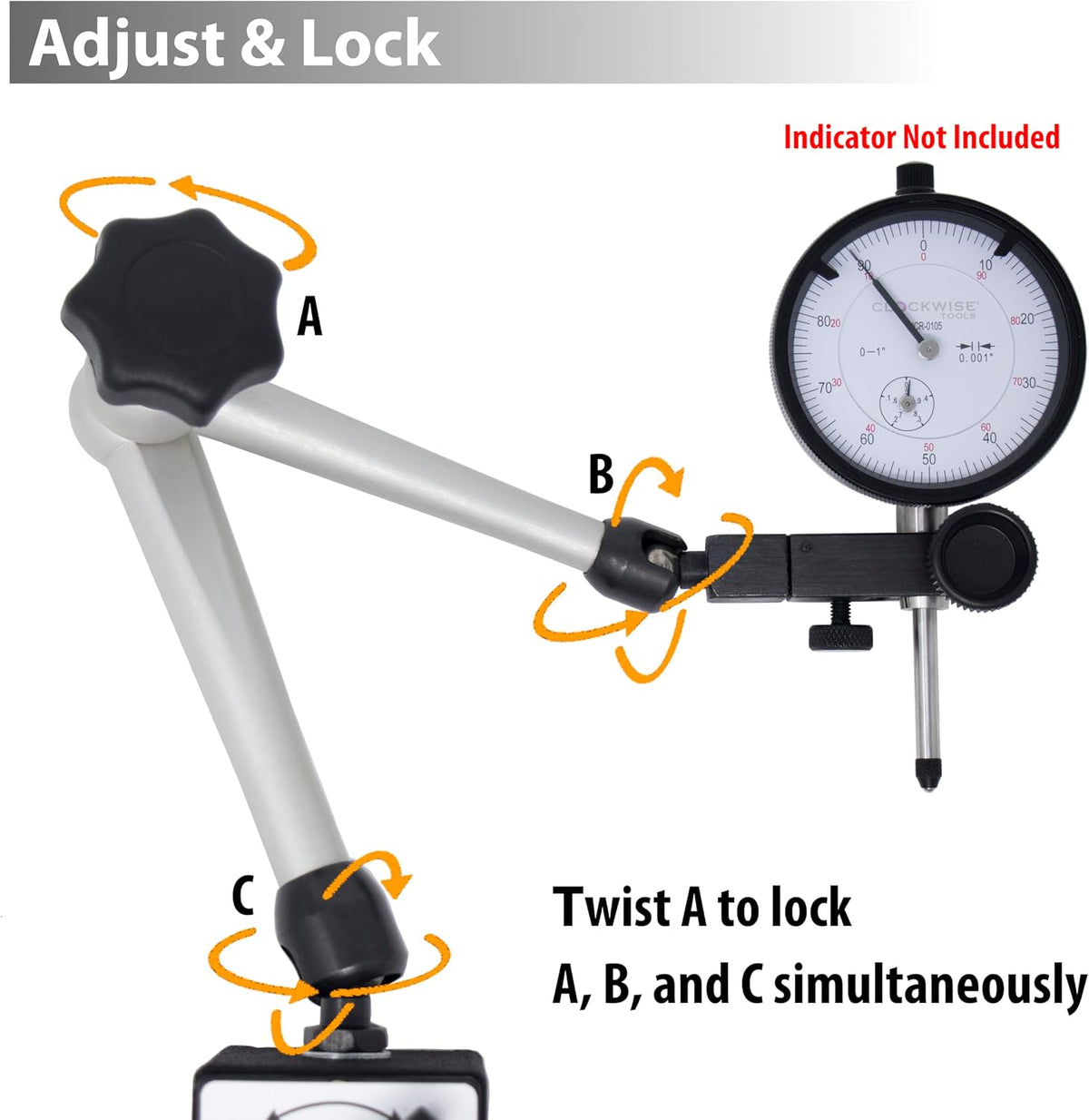

• Easy One-Knob Adjustment – A single black knob controls three rotary joints, allowing for smooth and 360-degree positioning at any desired angle.
• Stable & Versatile for Precision Work – Ideal for machining, metalworking, quality control, and calibration tasks, ensuring stable and accurate indicator readings.

Overview

• Import : Imported
• Clockwise Tools MGBR-01 Magnetic Base
• Compatible with all Clockwise Tools dial/digital indicators
• Max Pull 176 lbs ( 176lbs Tensile Force Requires a Metal Working Surface with a Thickness of 30mm and Above )

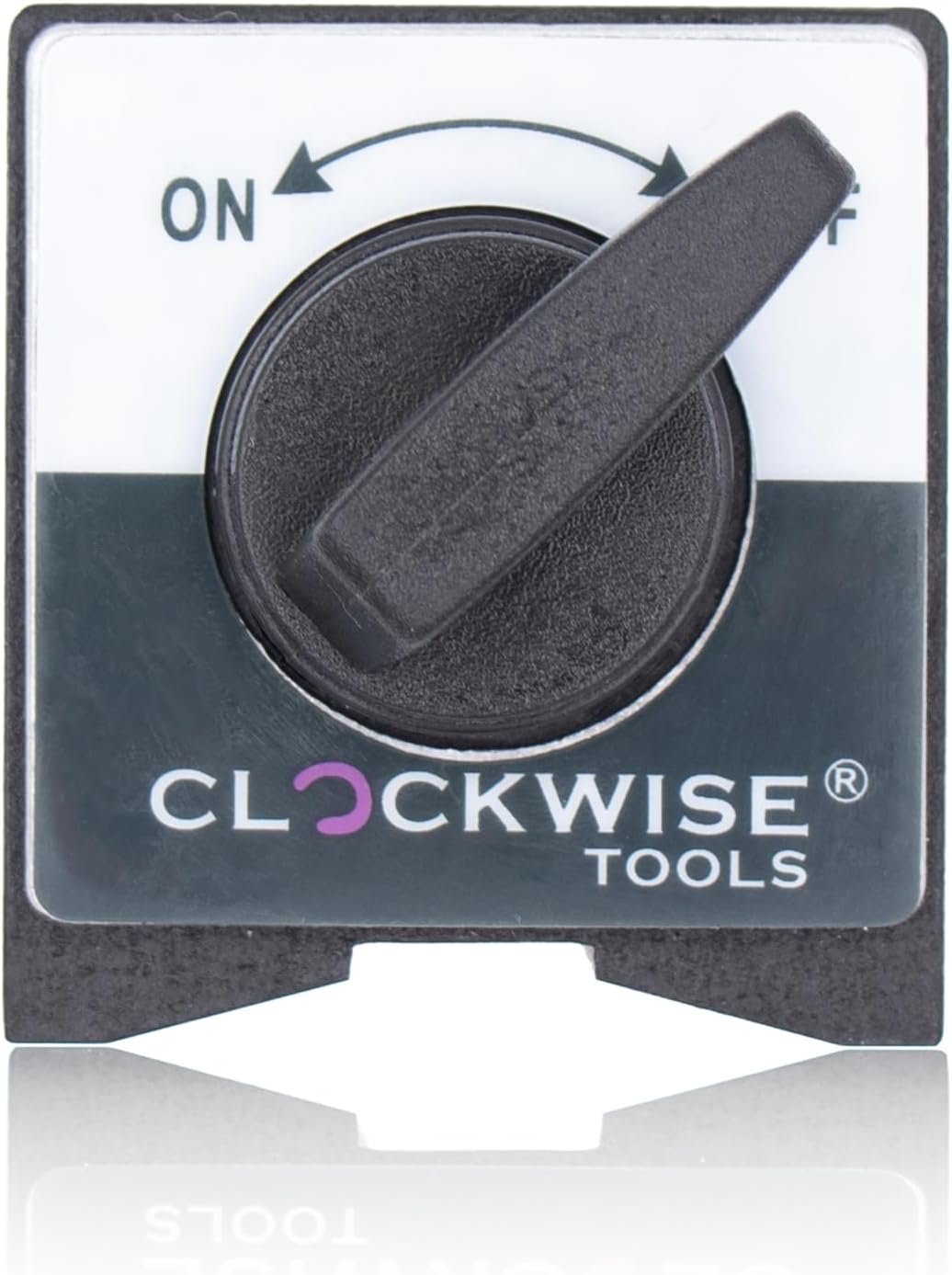

• Switchable permanent magnet with ON/OFF control for convenient mounting onto metal surfaces.
• 2 arms adjustable in any position by twisting the knob. Works with all Clockwise Tools dial and digital indicators and other brand indicators.
• V-grooved base for secure mounting on cylindrical surfaces

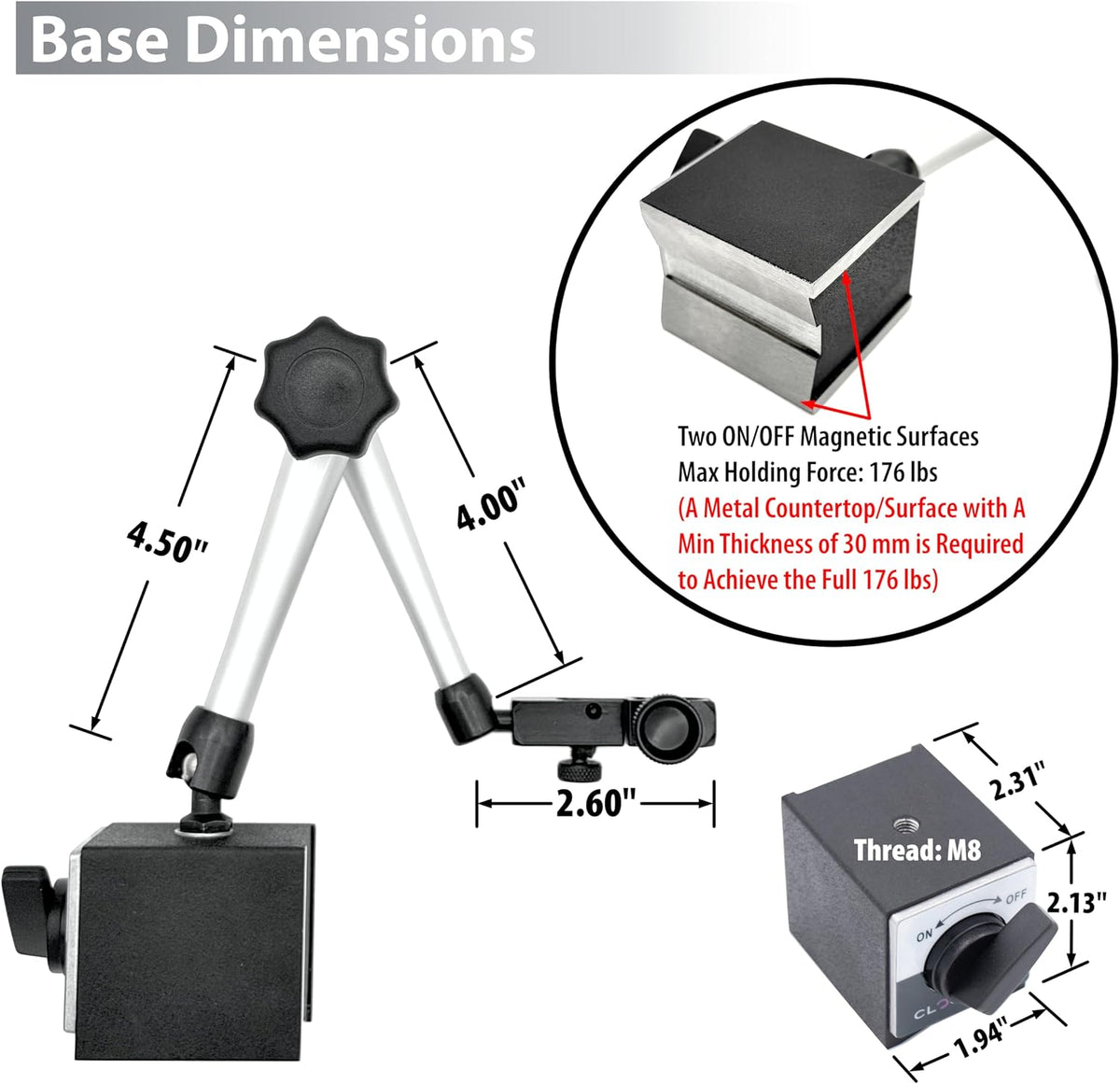

• Base dimension: 2.5" x 2.3" x 2" Total Height: 14.1"

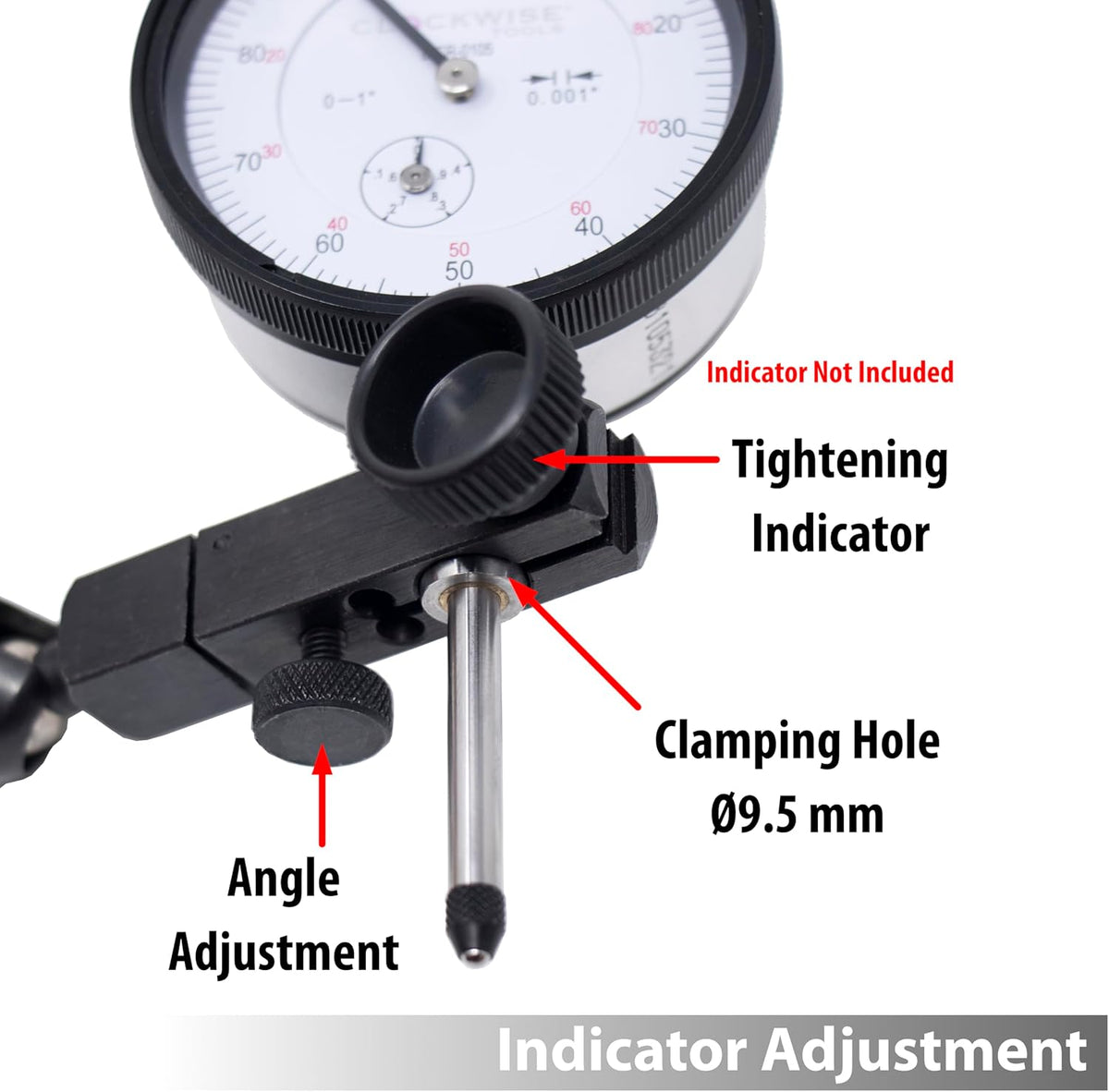

• Clamping Hole Diameter: Approx. 9.5mm, for regular digital/dial indicator use
• 2 arms dimension: Lower arm 4.5"; Upper arm 4"; Total Height 14.1"
• 2 Magnetic faces; (176lbs Force Requires a Metal Working Surface with a Thickness of 30mm and Above)
• Clamping Hole Diameter 9.5mm
• Twist one black knob can adjust 3 rotary joints at any direction and location
• Compatible with all Clockwise Tools dial/digital indicators and other market indicators
• Upper arm 4"
• Lower arm 4.5"
