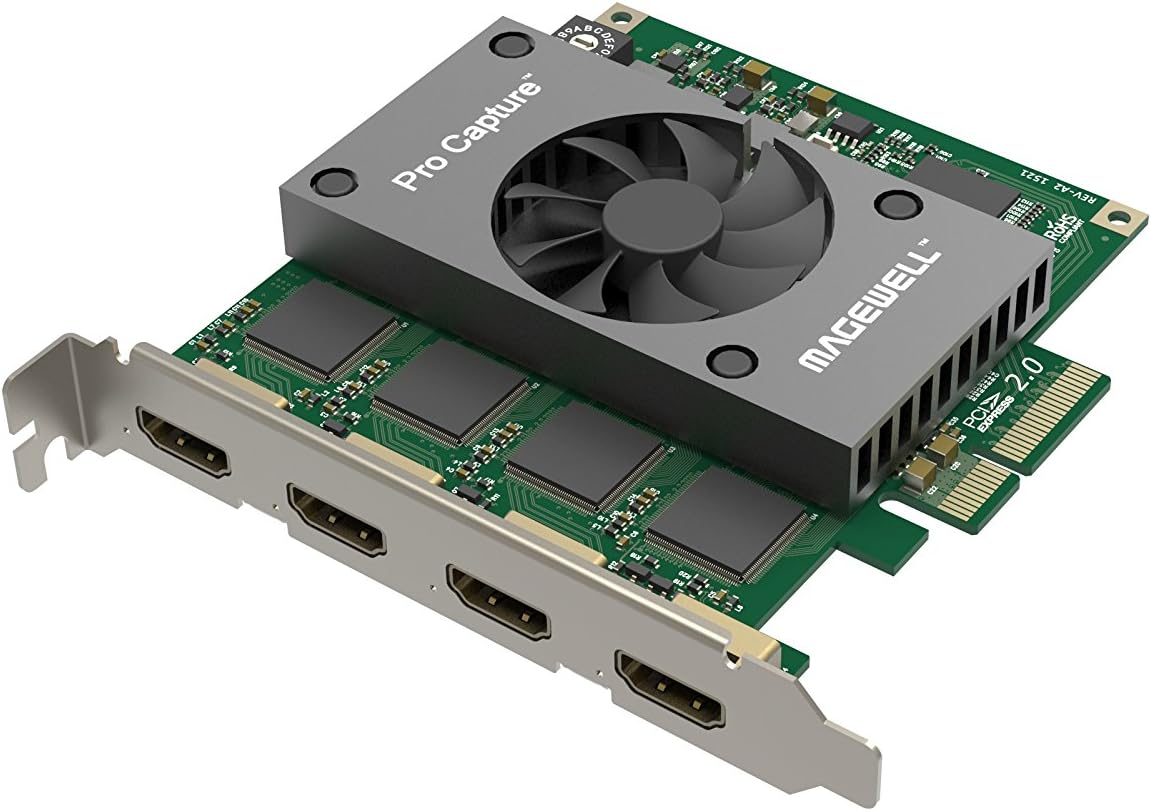

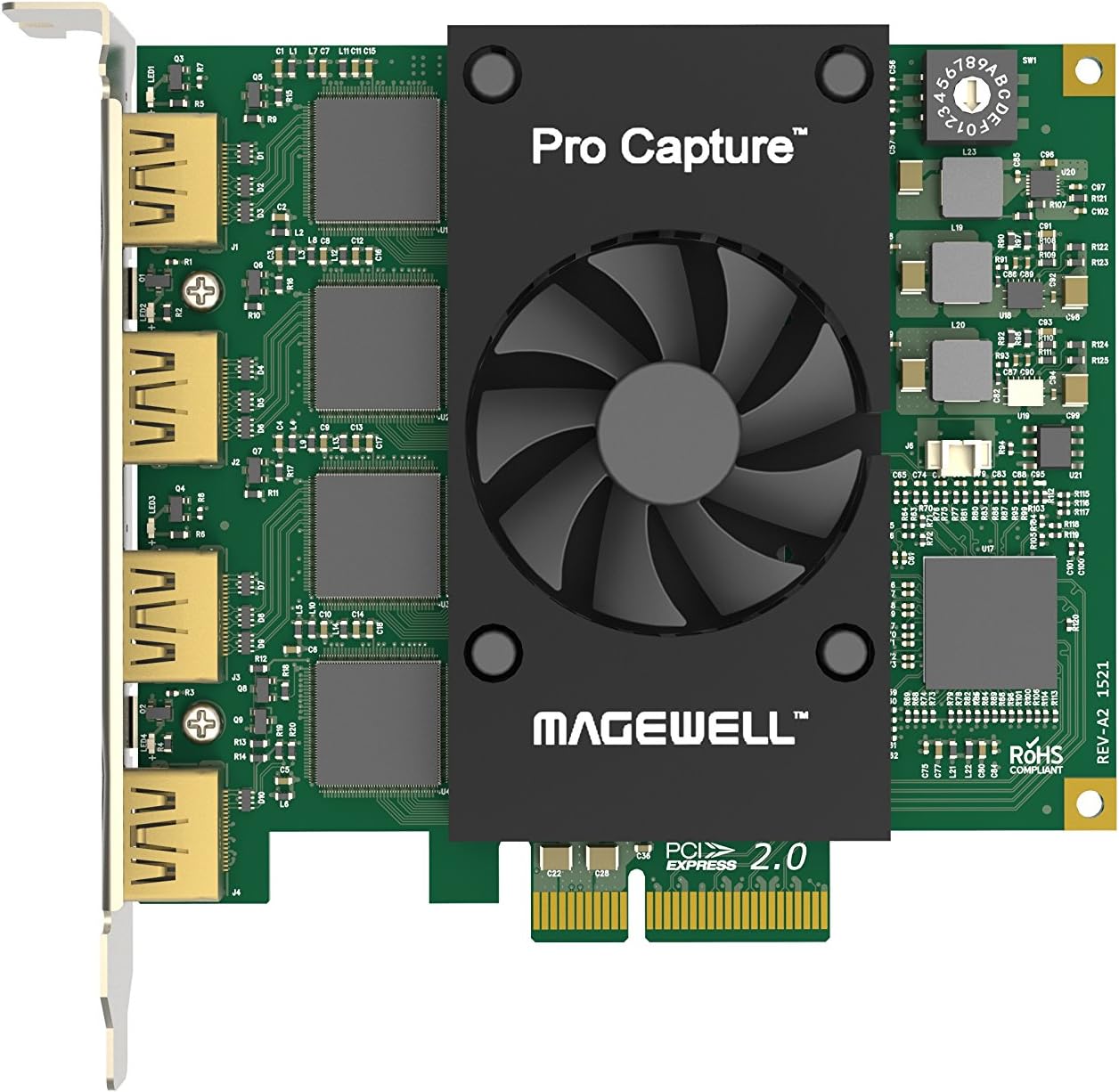

Magewell Pro Capture Quad HDMI 11100 – 4-Channel HDMI Capture Card (4× HDMI in) with FPGA Video Processing, Up to 2048×2160 Input, PCIe Gen2 x 4, Low Latency

About This

• Four Independent HDMI Inputs – Capture four simultaneous HDMI channels with embedded audio, ideal for multi-camera setups, switchers or monitoring rigs.
• High Resolution & Frame Rate Support – Supports input resolutions up to 2048×2160 and frame rates up to 144 fps (actual rate depends on system bandwidth).
• On-Board Video Processing – FPGA hardware provides cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion and OSD composition to reduce host CPU load.
• Pro-Grade Audio & Color – Supports 8/10/12-bit color depths, RGB 4:4:4 and YCbCr 4:4:4/4:2:2 sampling, and up to 8-channel audio per input for high-fidelity capture.
• Low Latency & Multi-Card Support – Designed for latency down to 64 video lines; supports multiple cards in one system with rotary switch ID.
• Broad OS Compatibility & Robust Design – Works with Windows, macOS and Linux; built for 24/7 operation in professional production, broadcast and AV environments.

Overview

• Brand : Magewell
• Hardware Interface : PCI Express x4
• Video Capture Resolution : Up to 2048x2160
• Operating System : Linux,Windows,Mac Os,Linux Os
• Recommended Uses For Product : Video Recording
• Normal profile PCIe x4 Add-on Card; 112.15mm x 102.92mm (without PCI bracket)
• Supported APIs
• Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI; Linux: V4L2, ALSA; macOS: AVCaptureSession, AudioUnit
• Recommended OS
• Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above; Linux x86, x64 & ARM architecture, with 2.6.35 and above; Mac OS X 10.9 and above; macOS 10.12 and above
• Supported Software
• VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software
• Input Interfaces

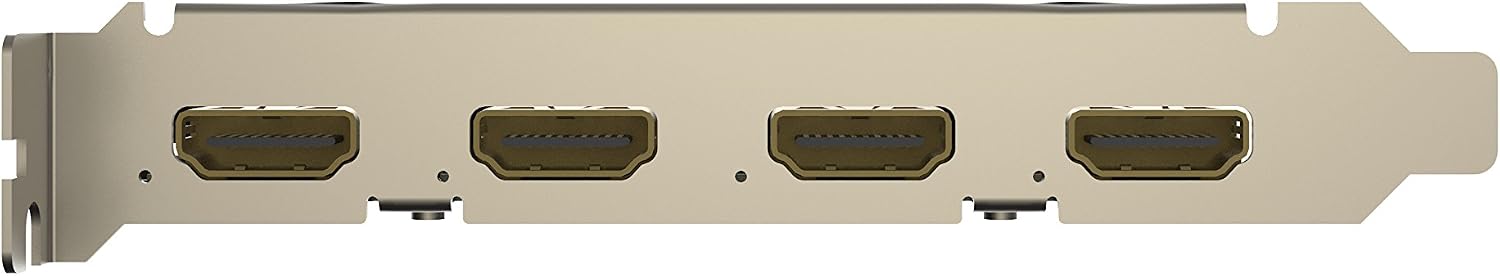

• 4x HDMI 1.4a; Support for input video resolutions up to 2048x2160 pixels
• Host Interface
• PCIe Gen2 x4
• HDMI Specific Features
• 8/10/12-bit color depths; RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling; up to 8-channel IEC60958/IEC61937 audio streams via SDK; Support for customized EDID
• Video Capture Formats
• Capture image resolutions up to 2048x2160; 4:2:0 8-bit capture formats: NV12, I420, YV12; 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY; 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32; 4:4:4 10-bit capture formats: V410, Y410
• Video Processing Features
• Cropping; scaling; de-interlacing; aspect ratio conversion; color format conversion; frame rate conversion; OSD composition
