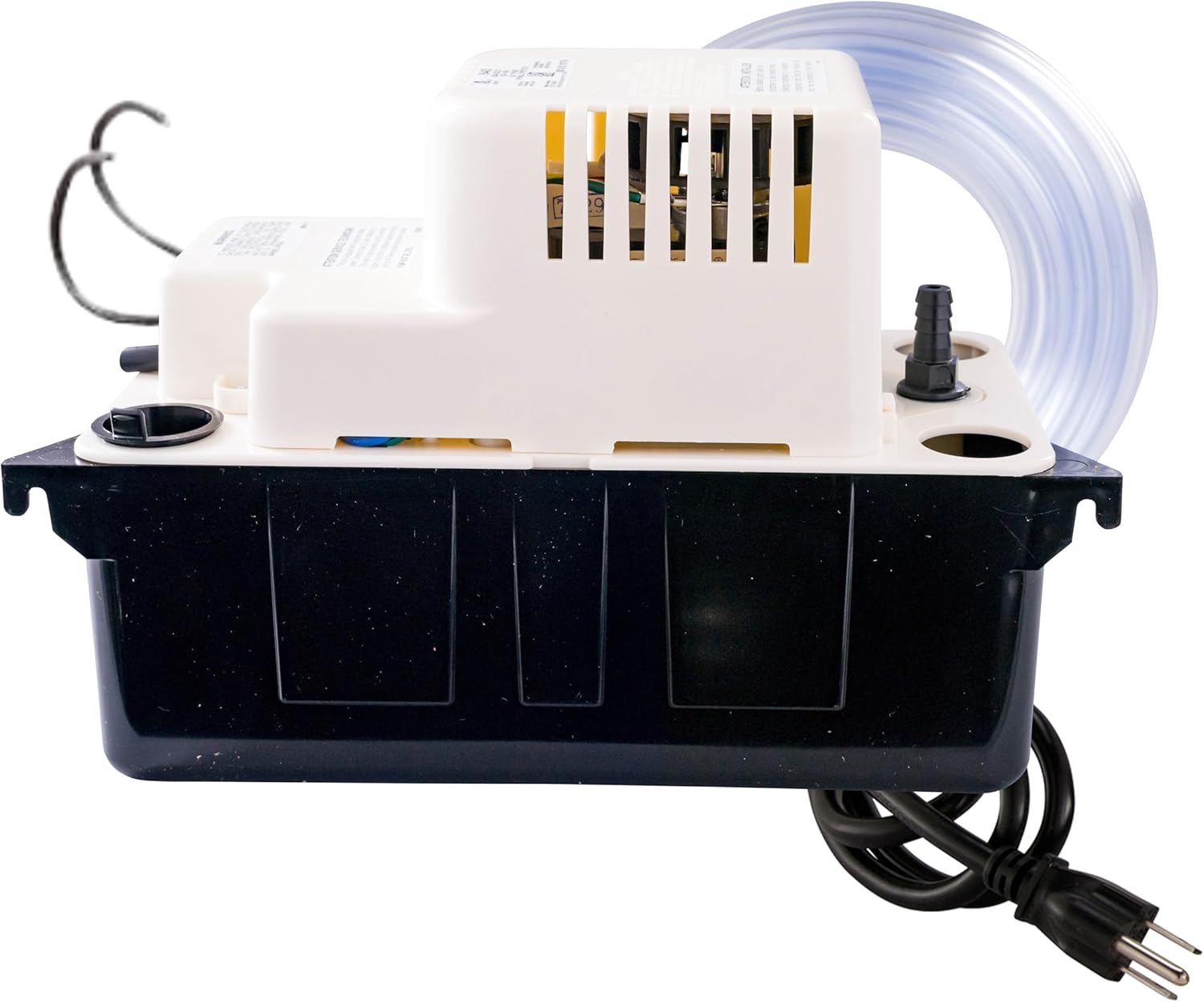

Little Giant VCMA-15ULST 115 Volt, 65 GPH, 1/50 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, Black/White, 554415

About This

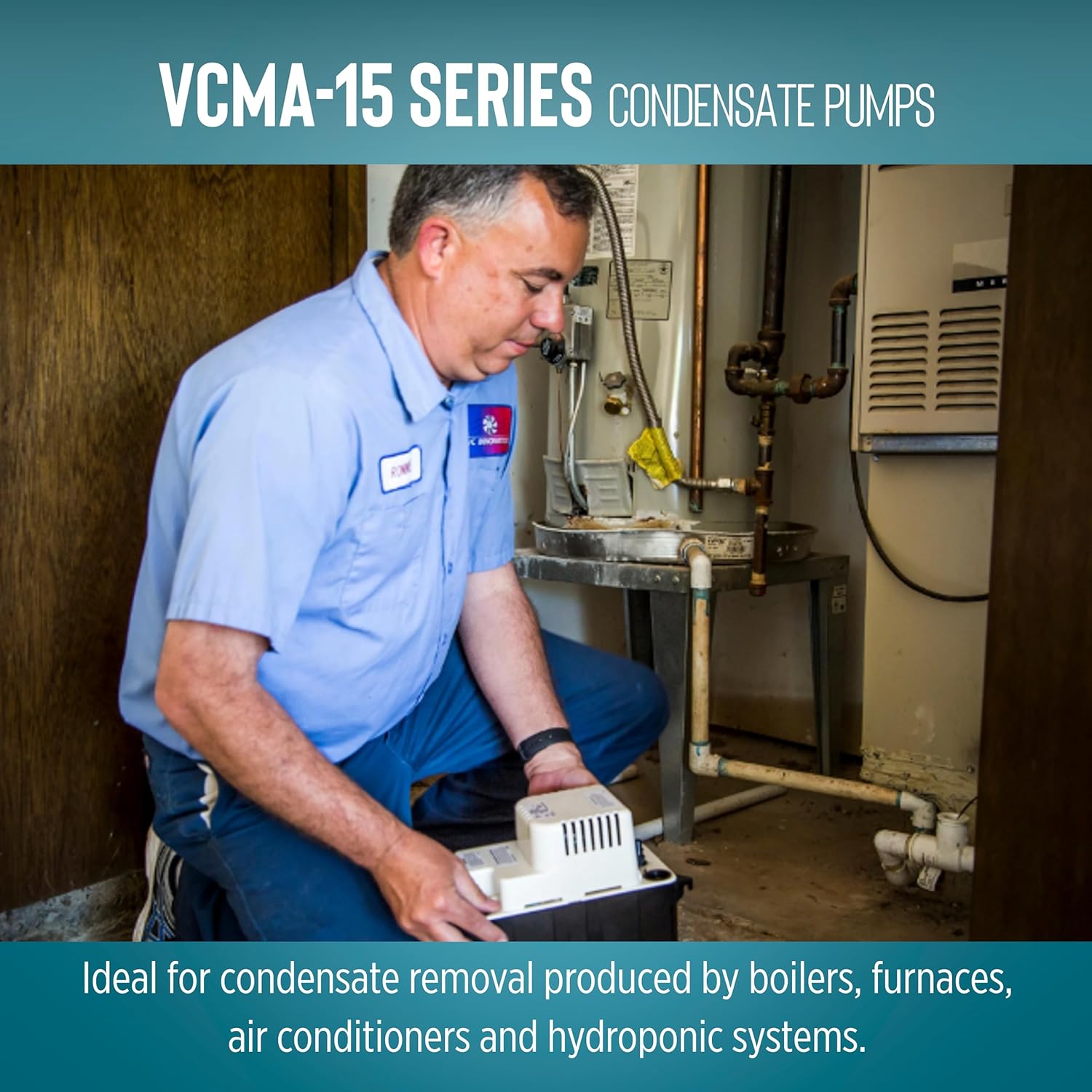

• AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers
• THERMALLY PROTECTED, HIGH-PERFORMANCE MOTOR: 1/50 HP, 1.0 Amps, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards
• BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; thermal overload protected motor; can handle water temperatures up to 140° F (60° C)
• INCLUDES OVERFLOW DETECTION SWITCH and VINYL TUBING: switch can be set to shut down the appliance or sound an alarm (alarm not included); basic wiring knowledge required; 20' x 3/8" I.D. vinyl tubing

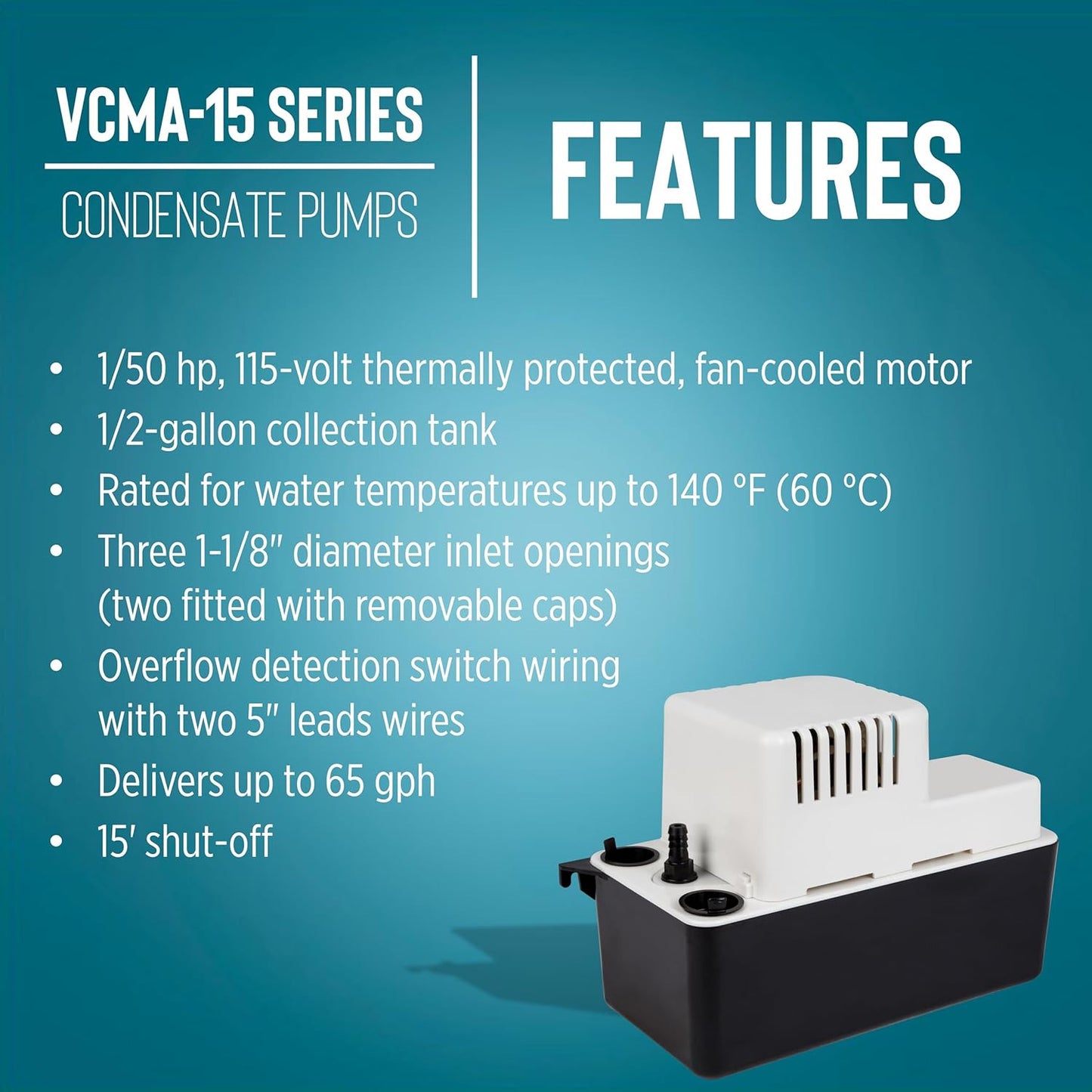

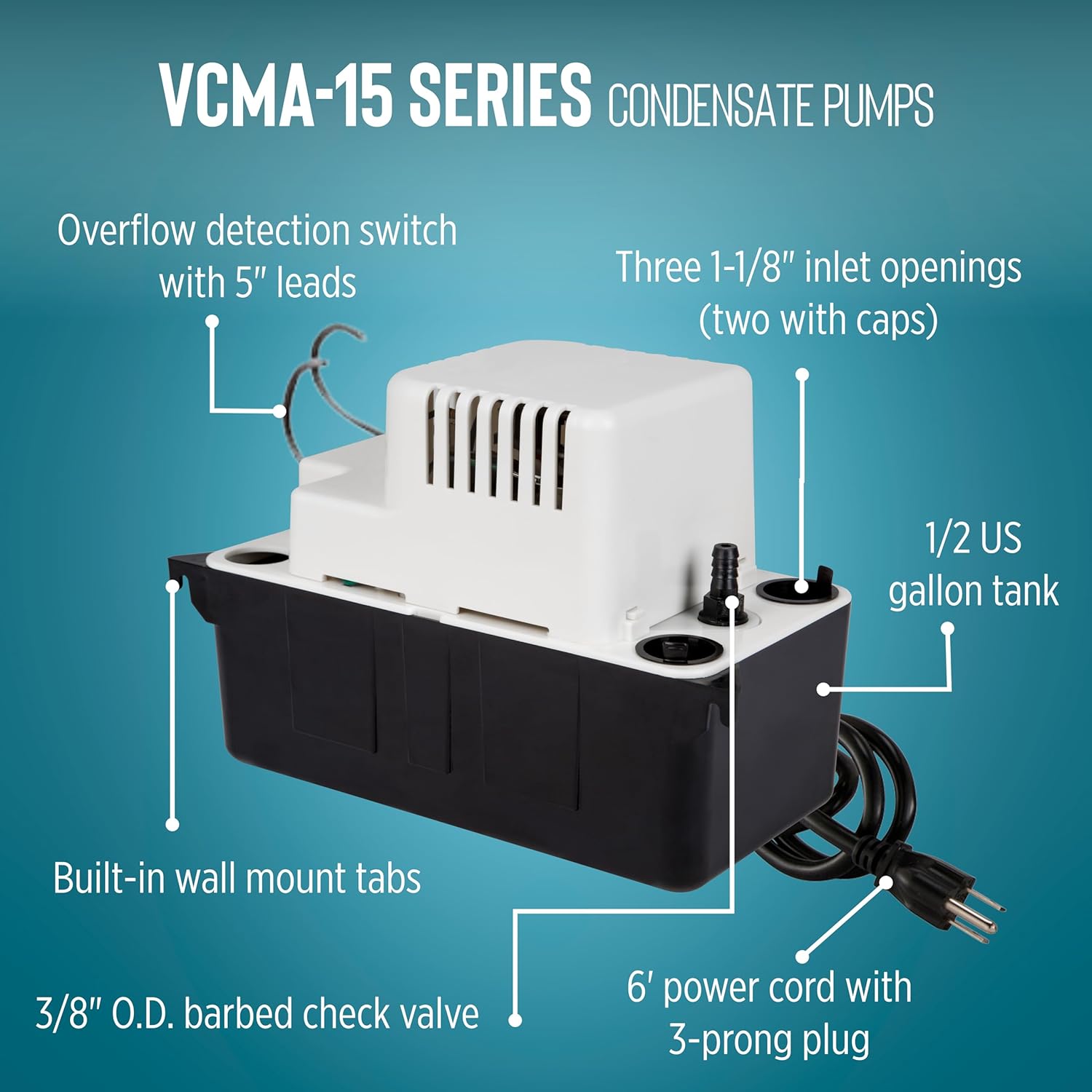

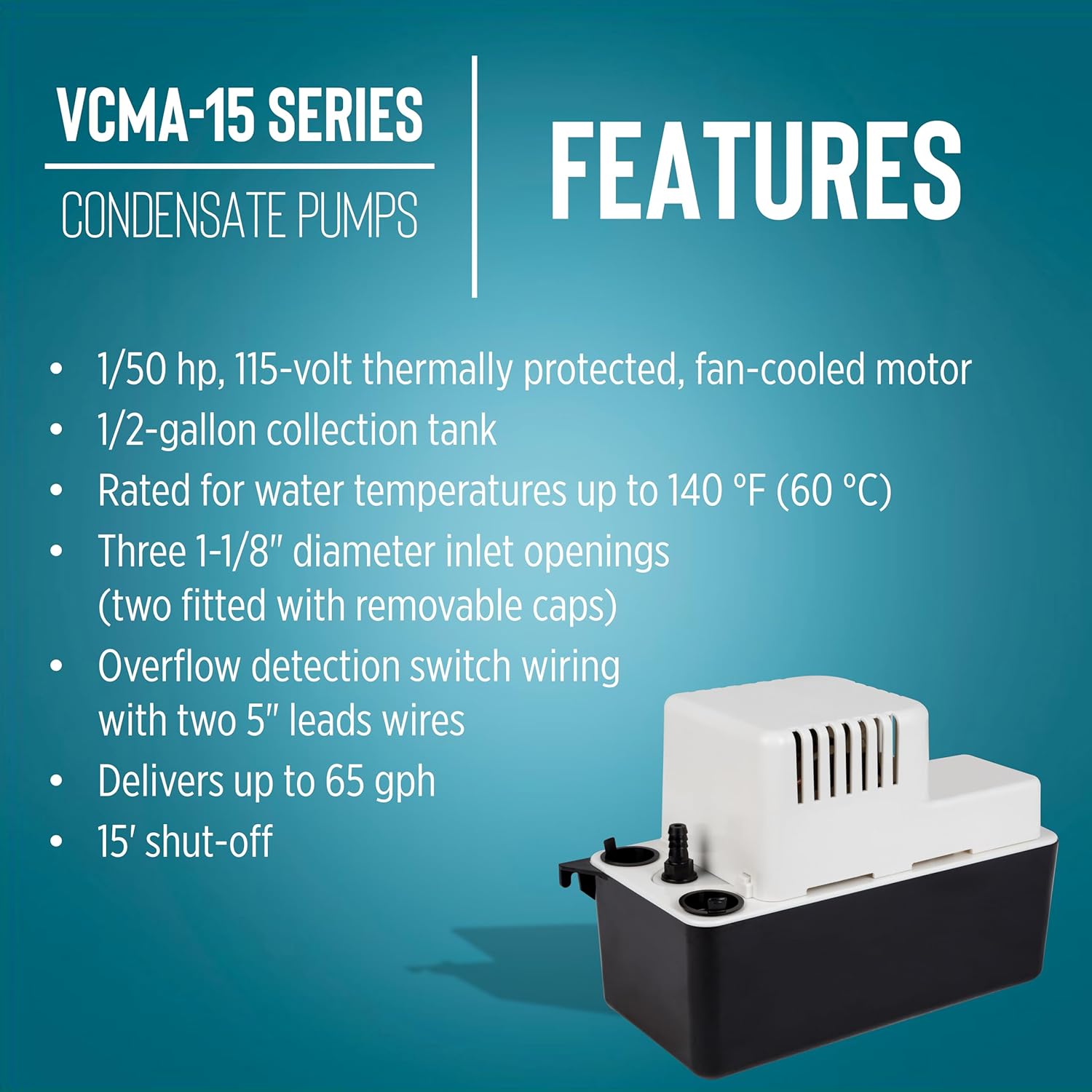

• SPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8" OD barbed discharge, 65 GPH at 1' lift, 15' shut-off, max 6.5 PSI, three 1-1/8" inlet drain holes, 6' cord; max water temperature: 140° F

Overview

• Brand : Little Giant
• Color : Black/White
• Material : Acrylonitrile Butadiene Styrene (ABS)
• Style : Includes Overflow Detection Switch/Tubing
• Power Source : Corded Electric
• Maximum Flow Rate : 1.08 gpm
• Maximum Lifting Height : 15 feet
• Voltage : 115 volts
• What is the difference between 115-volt and 230-volt?
• Standard outlets in North American homes are 115-120 volts. 230-volt outlets have 3 prongs but the two straight prongs are sideways so a special 230-volt outlet is needed. Stoves and dryers and some furnaces usually have 230-volt outlets.
• Does this pump come with vinyl tubing?

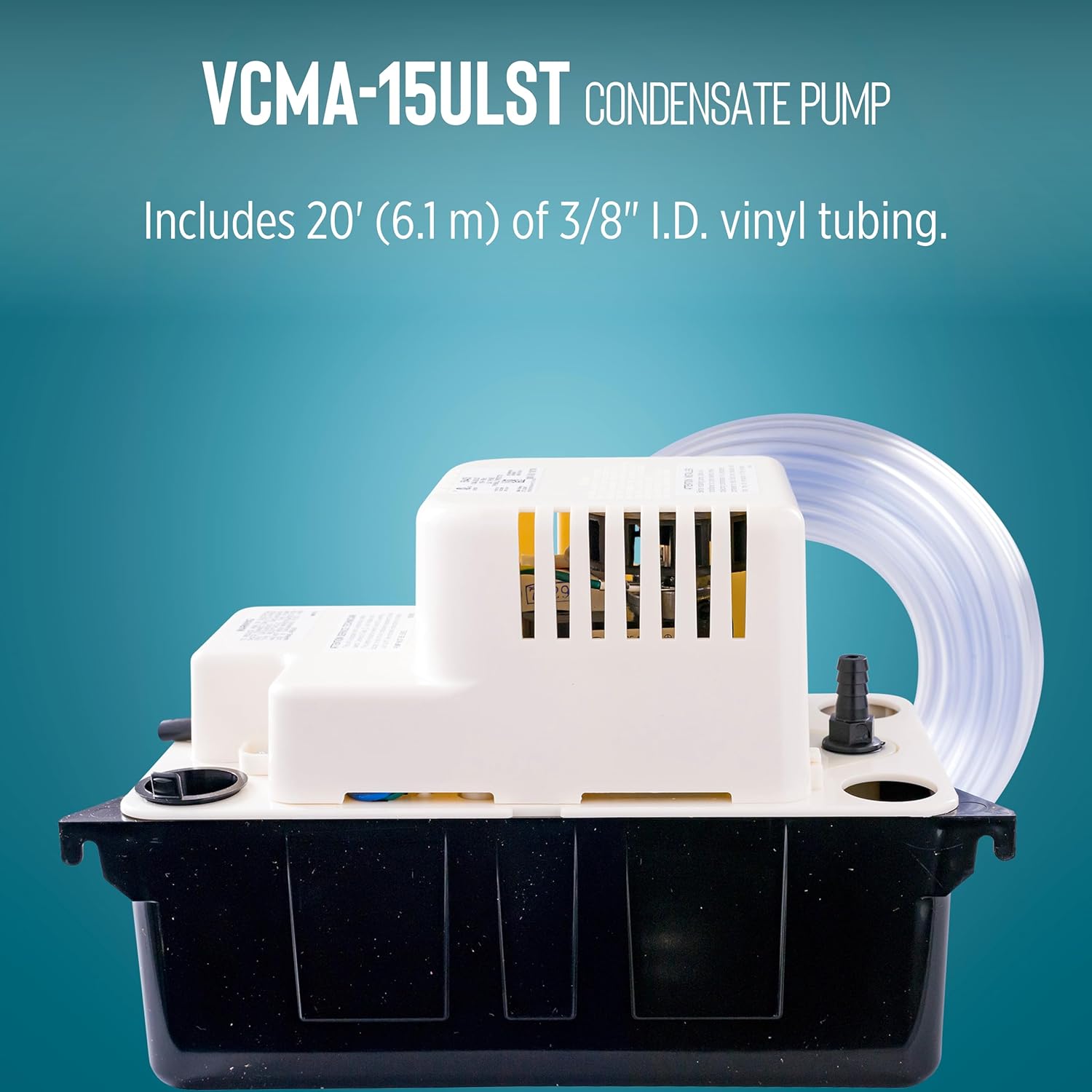

• Yes. 20' (6.1 m) of 3/8" I.D. vinyl tubing is included.
• Does this come with an overflow safety switch?
• Yes, this model comes with an overflow safety switch.
• What is an overflow safety switch and how does it work?

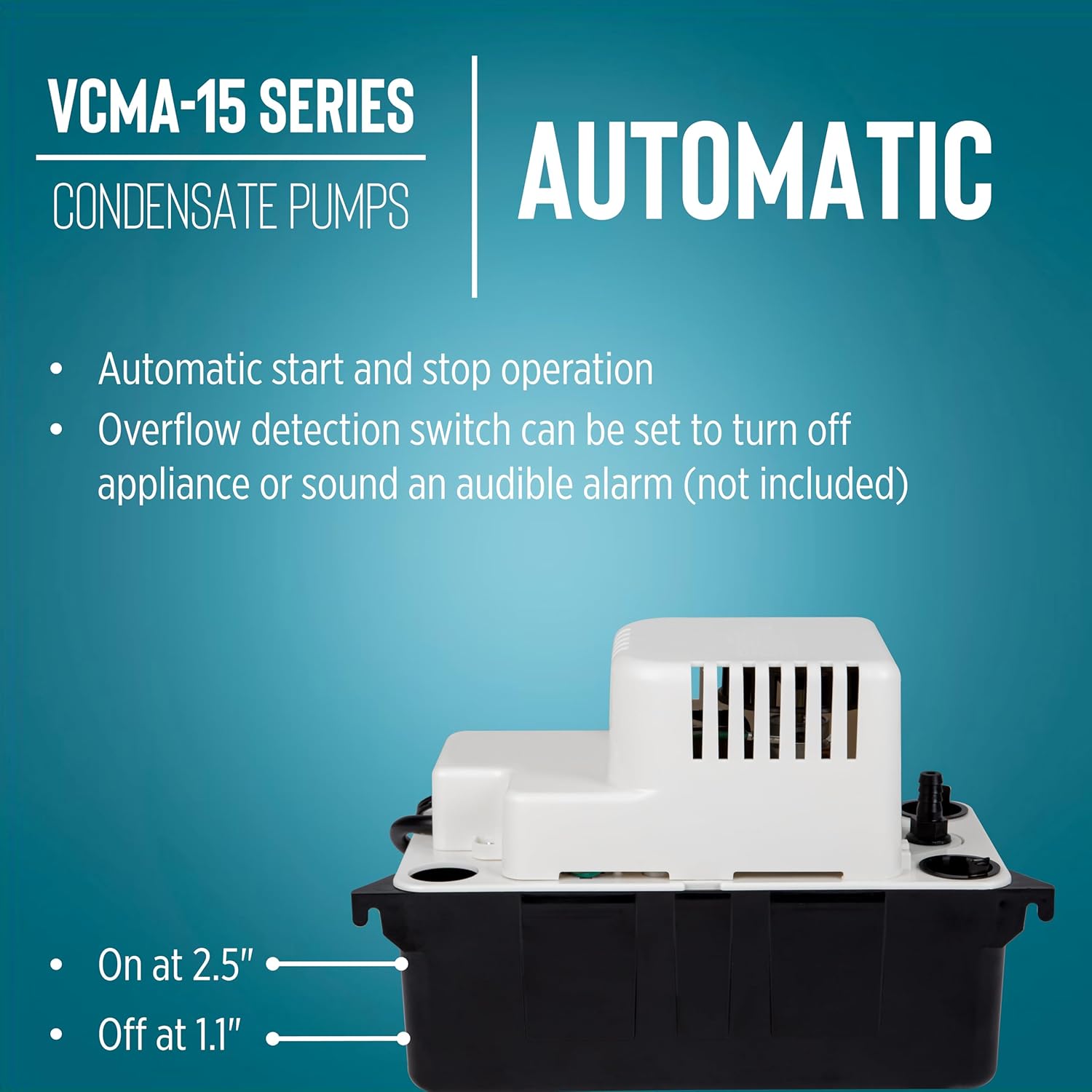

• On models that come with an overflow safety switch, the switch activates when condensate exceeds 2.7". The switch can be set to NO (Normally Open) to shut the system off or NC (Normally Closed) to activate an audible alarm (alarm not included).
• The pump is louder than it should be. What can I do?
• The unit must be level and installed on an even surface or wall mounted. Wall mount the unit or add a rubber mat under the pump to help absorb the vibration. Check to ensure lines aren't blocked and the check valve works properly.
