Oversized toggle provides clear actuation feedback and long-lasting durability
Front or back wired terminal screws accept up to #4 stranded or #10 solid AWG copper wire
Available for single phase or three phase applications
Zinc-plated lug-type terminal screws hold conductors securely in place
Overview

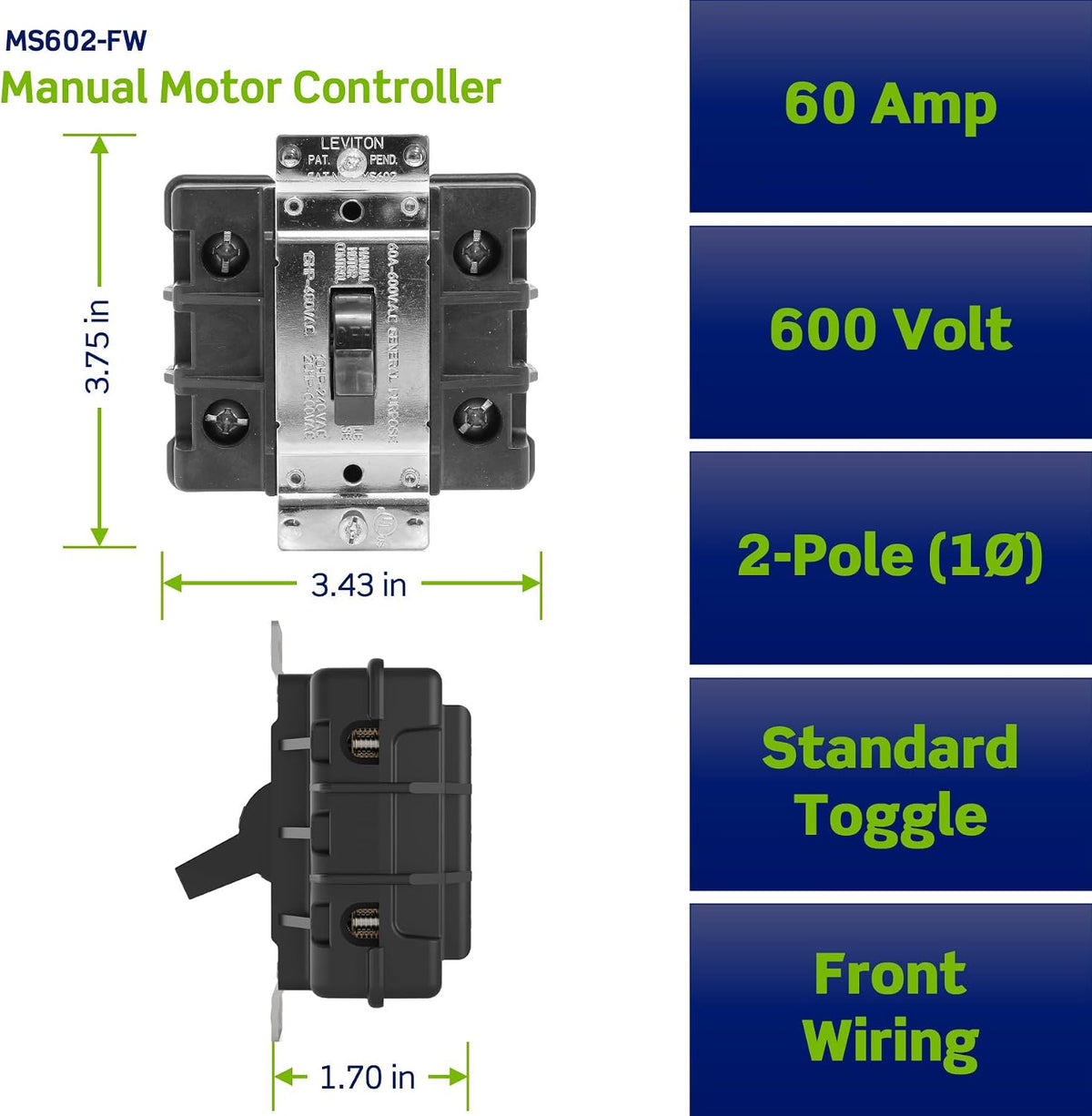

Part Number : MS602-FW
Color : Image
Material : Copper
Thickness : 1 inches
Voltage : 240 volts
Horsepower : 10 hp
Amperage Capacity : 60 A
Item Package Quantity : 1
Mounting Type : Wall Mount
Switch Style : Toggle Switch
Certification : CSA, NOM, UL
Powerswitch Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Built for commercial and industrial installations up to 60 Amps, Leviton offers a line of industrial grade AC single-phase and three-phase manual motor controllers with a continuous current rating at all voltages up to 600V AC and maximum horsepower ratings of 30HP.
Our 30 Amp and 40 Amp motor switches may be used in place of a standard disconnect switch in line-of-sight applications in factory settings.
